IP65 LED Stainless Steel Push Button Switch 12mm 16mm 19mm 22mm 3A Momentary Latching 3-220V

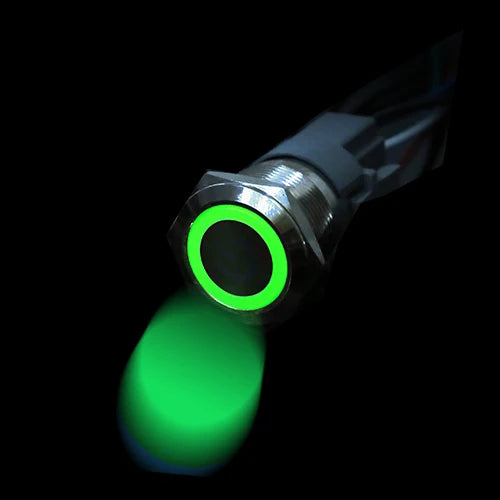

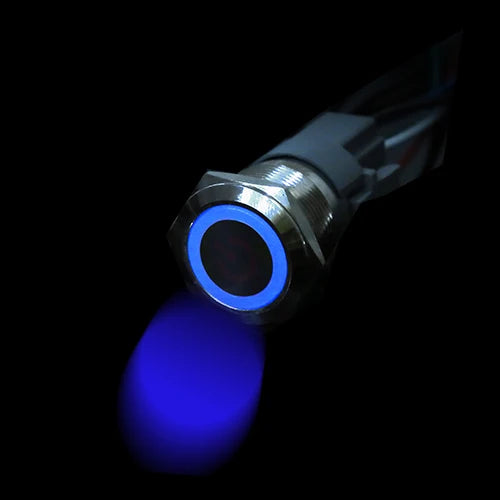

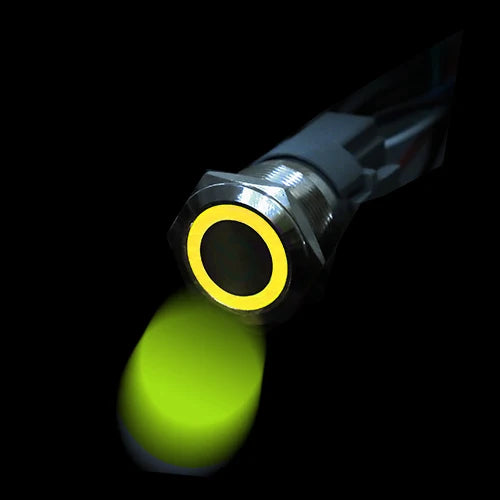

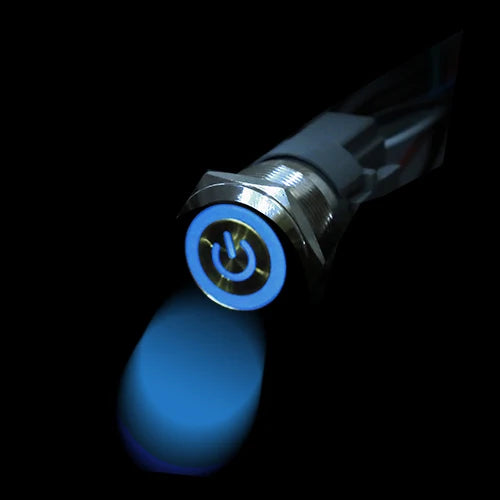

This IP65 waterproof LED-illuminated stainless steel push button switch is available in self-recovery (momentary) and self-locking (latching) configurations across four panel cutout sizes. Rated 3A / 250VAC. Flat circular head. NO and NC contact options. Compatible with 3–6V, 12–24V, and 220V systems.

Momentary vs Latching: Self-recovery — button returns on release. Self-locking — button holds position until pressed again.

Wiring terminals: A/+ = LED positive, LED/- = LED negative, NO = Normally Open, NC = Normally Closed, C = Common.

Certified to CE and CCC standards.

Key Features

• IP65 waterproof LED illuminated push button switch
• Self-recovery (momentary) and self-locking (latching) options
• Stainless steel flat circular head

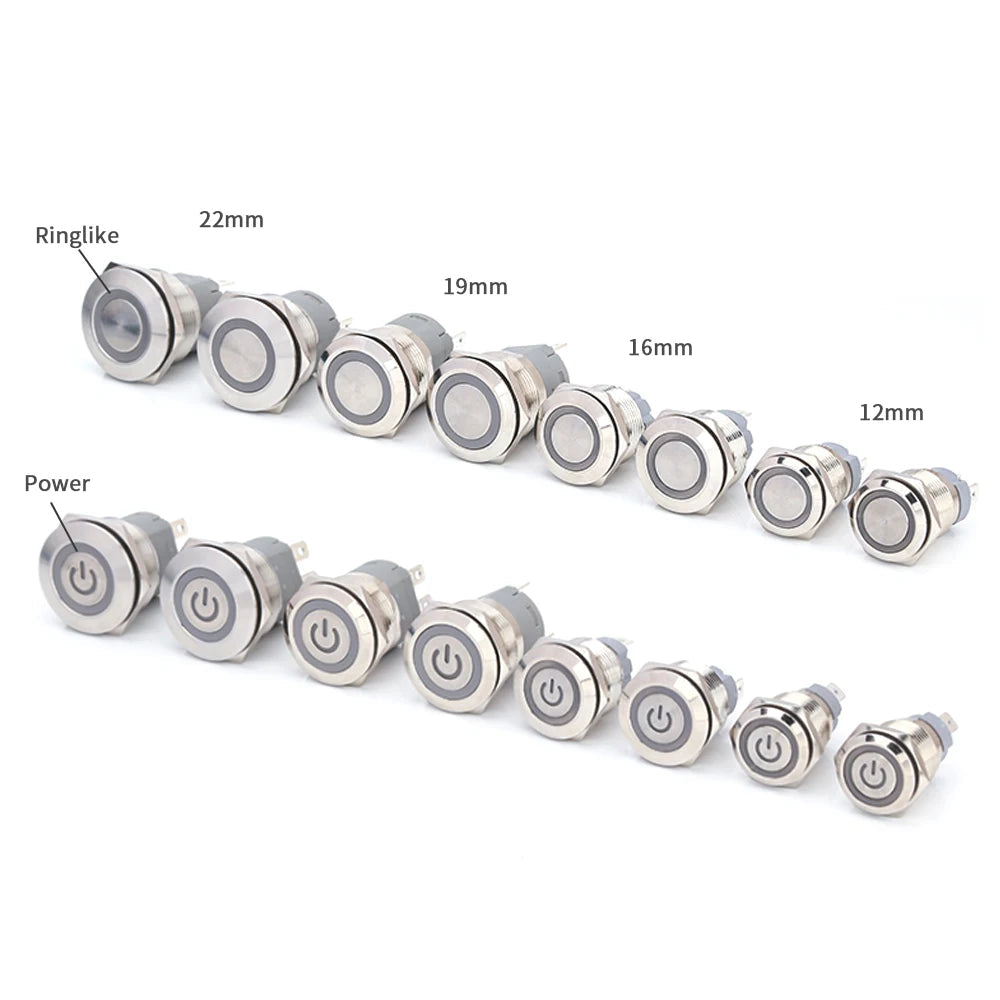

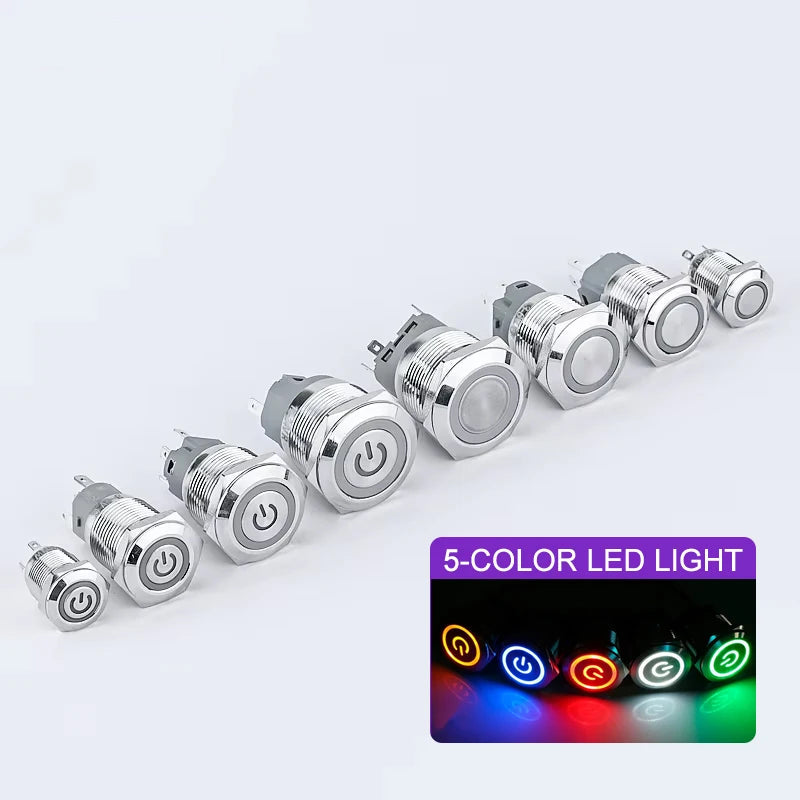

• Mounting sizes: 12mm / 16mm / 19mm / 22mm
• Rated 3A / 250VAC
• NO and NC contact options
• Voltage: 3-6V / 12-24V / 220V
• CE and CCC certified

Specifications

• Product Type: IP65 LED Illuminated Metal Push Button Switch
• Material: Stainless Steel

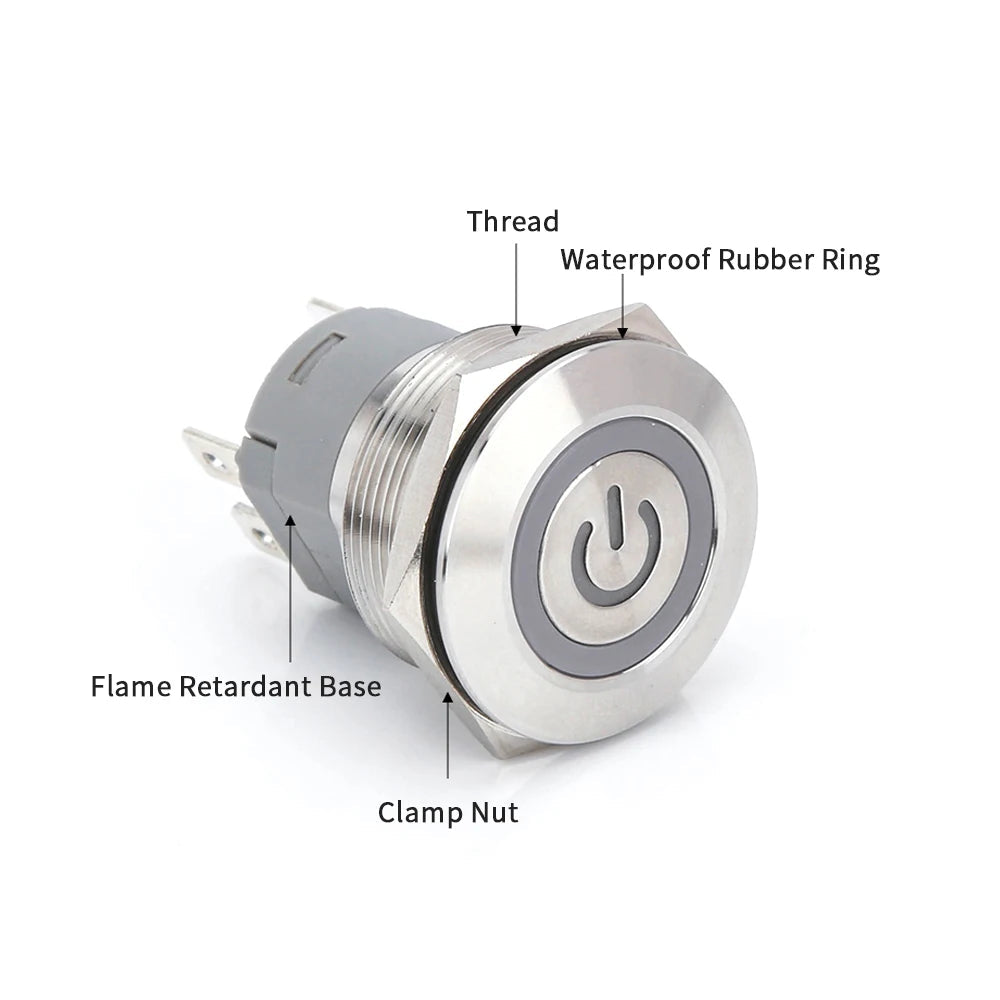

• Head: Flat Circular
• Function: Self-Recovery (Momentary) / Self-Locking (Latching)
• Contact Type: NO (Normally Open) / NC (Normally Closed)

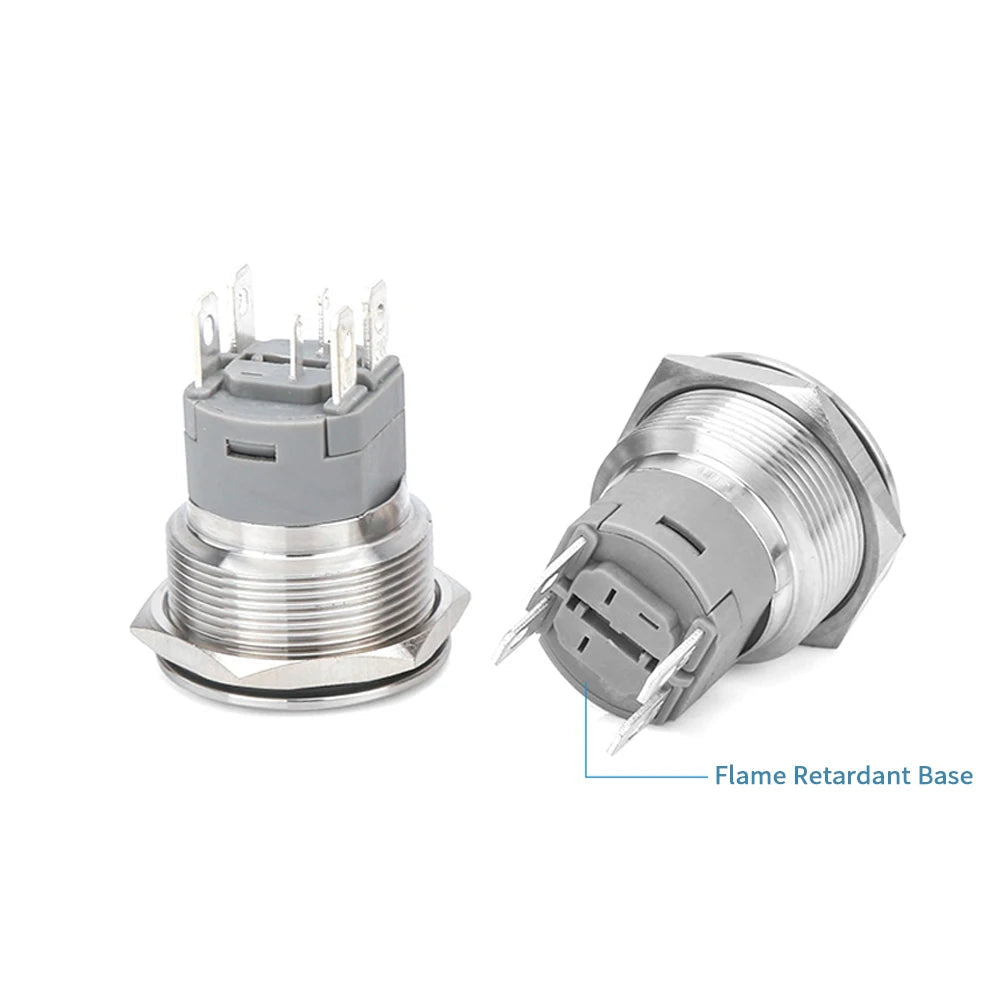

• Wiring: A/+ = LED positive, LED/- = LED negative, NO / NC / C
• Mounting Sizes: 12mm / 16mm / 19mm / 22mm
• Current: 3A
• Voltage Rating: 250VAC
• Operating Voltage: 3-6V / 12-24V / 220V
• IP Rating: IP65
• Certification: CE, CCC

Applications

• Car and vehicle engine start switch
• PC and machine device power button
• Industrial and commercial panel switch
• DIY electronics and automation control
