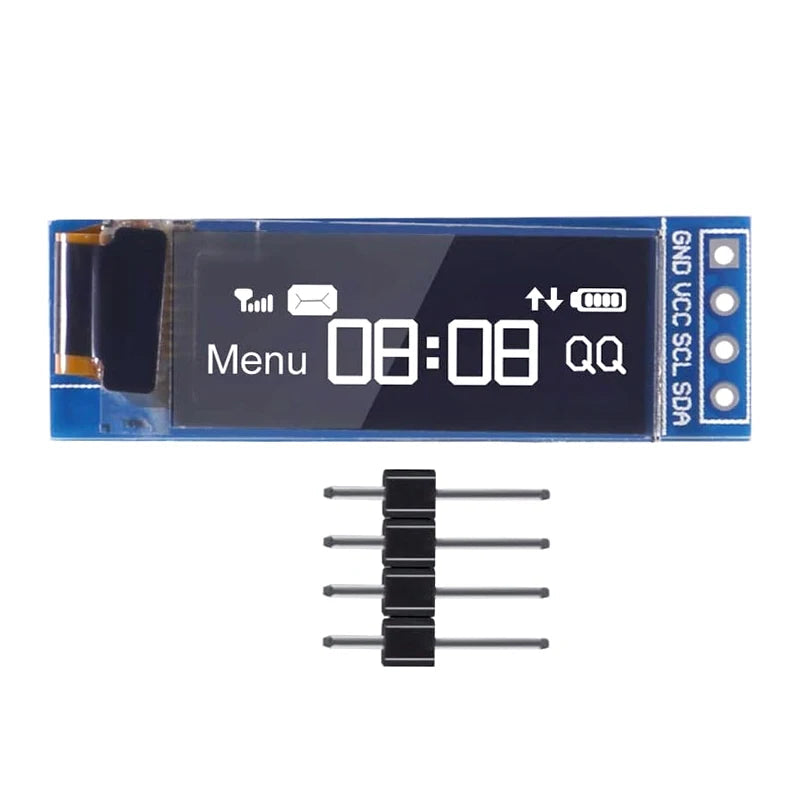

0.91 Inch OLED Display Module 128x32 SSD1306 I2C IIC DC 3.3-5V White or Blue for Arduino Raspberry Pi DIY Projects 10 Pack

This 0.91-inch OLED display module uses the SSD1306 driver IC with a 128x32 pixel resolution and I2C (IIC) interface requiring only 2 IO pins. Self-illuminating — no backlight required. Wide viewing angle of over 160 degrees. Ultra-low power consumption of 0.06W. Compatible with DC 3.3V to 5V. Available in white and blue display colors. 10-pack.

Key Features

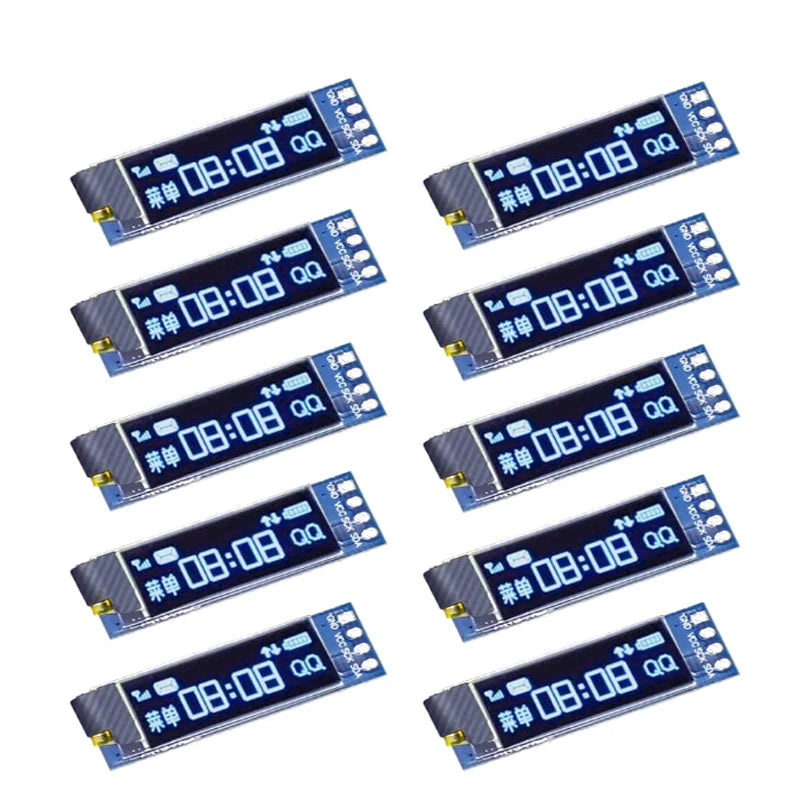

• 0.91-inch OLED display module, 10-pack
• SSD1306 driver IC
• 128x32 pixel resolution
• I2C (IIC) interface, 2 IO pins only
• Self-illuminating, no backlight required
• Viewing angle: over 160 degrees
• Ultra-low power: 0.06W
• DC 3.3V to 5V compatible
• White and blue display color options
• Compatible with Arduino, Raspberry Pi, and microcontrollers

Specifications

• Product Type: 0.91-inch OLED Display Module
• Driver IC: SSD1306
• Display Size: 0.91 inch
• Resolution: 128 x 32
• Interface: I2C (IIC)
• Display Color: White / Blue
• Input Voltage: DC 3.3V to 5V
• Power Consumption: 0.06W (normal display)
• Viewing Angle: over 160 degrees

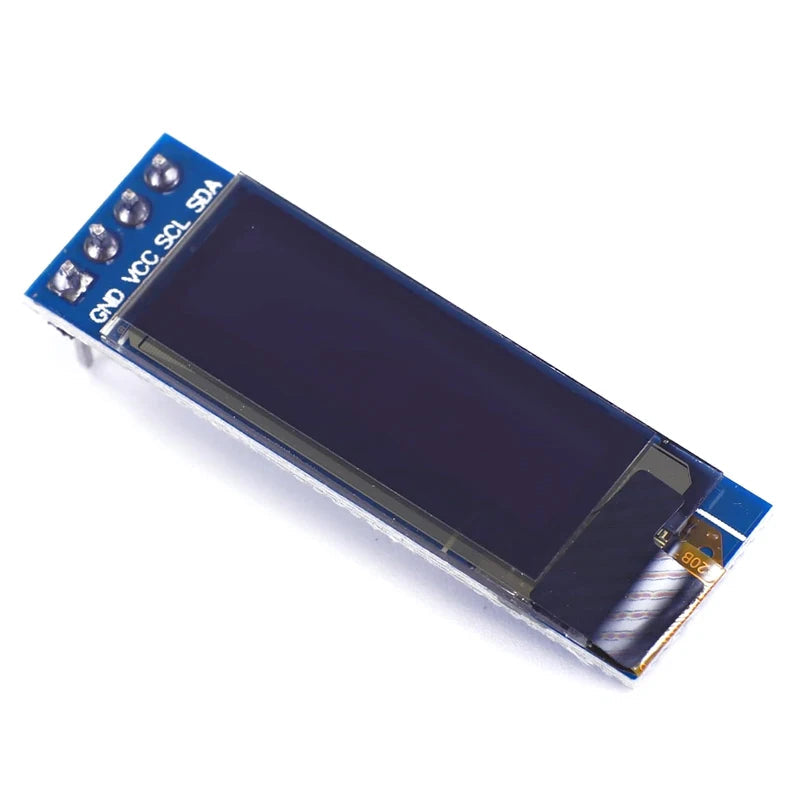

• Pin Description: GND (ground) / VCC (3.3 to 5V) / SCL (clock) / SDA (data)
• Customizable: Yes
• Pack: 10

Applications

• Arduino and Raspberry Pi display module
• DIY sensor readout and status display
• Wearable and portable device screen
• Microcontroller project data display
• IoT device and smart home panel display
