1W IP68 LED Underground Spotlight 304 Stainless Steel D32mm 25mm Cutout 30° CRI 90 DC 12-24V

This mini 1W IP68 underwater and underground LED spotlight features a 304 stainless steel body with a 30-degree focused beam angle and a CRI of 90Ra. SMD2835 chip delivering 100–130lm output. D32mm x H52mm body with 25mm cutout. 500mm silicone cable extendable to 10m. Dimmable. DC 12V or 24V input. Operating temperature -30°C to +50°C. Rated lifespan of 50,000 hours.

Seven color options: warm white, natural white, cool white, red, green, blue, and yellow.

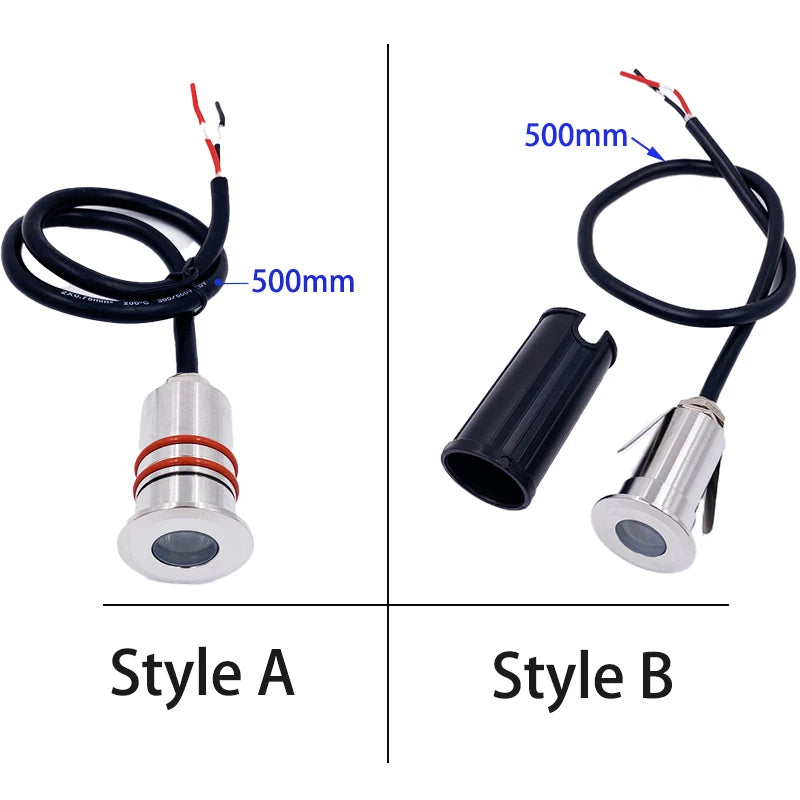

Two installation styles available: Style A includes the light only; Style B includes the light plus PC embedded mounting parts.

Certified to CE and RoHS standards.

Key Features

• 1W IP68 LED underground spotlight
• 304 stainless steel body
• 30-degree focused beam angle
• CRI 90Ra — 100-130lm
• D32mm x H52mm, 25mm cutout
• 500mm silicone cable (extendable to 10m)
• SMD2835 chip
• DC 12V or 24V compatible
• Dimmable
• 7 color options
• Operating temperature: -30°C to +50°C
• Lifespan: 50,000 hours
• CE and RoHS certified
• 5-year warranty

Specifications

• Product Type: IP68 Mini LED Underground Spotlight
• LED Chip: SMD2835
• Material: 304 Stainless Steel
• Power: 1W
• Input Voltage: DC 12V / DC 24V
• Lumen Output: 100-130lm
• CRI: 90Ra
• Beam Angle: 30 degrees
• IP Rating: IP68
• Dimensions: D32 x H52mm
• Cutout: 25mm
• Cable: 500mm Silicone (extendable to 10m)
• Color Temperature: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (5700-6500K) / Red / Green / Blue / Yellow
• Dimmable: Yes
• Operating Temperature: -30°C to +50°C
• Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 5 Years
• Style A: Light only / Style B: Light + PC embedded parts

Applications

• Swimming pool and pond underwater lighting
• Garden pathway and deck underground spotlight
• Staircase and step recessed lighting
• Landscape and hardscape accent lighting
• Driveway and yard ground uplighting
