2W 3W DC 12V 24V Mini LED Recessed Spotlight IP65 PWM Dimmable 27mm Cutout 30° 60° 3-Color

This mini 2W or 3W DC 12–24V recessed LED spotlight uses a 5050 LED chip in a compact D32mm x H34mm aluminum body with a 27mm ceiling cutout. Two beam angle options — 30-degree focused accent or 60-degree wide coverage. PWM dimmable. 170mm Teflon cable. IP65 waterproof for sauna, bathroom, kitchen, and outdoor covered ceiling installations. CRI of over 80Ra. Operating temperature -30°C to +50°C. Rated lifespan of 50,000 hours.

Three color temperature options — warm white, natural white, and cool white. DC 12V or 24V compatible.

Certified to CE and RoHS standards.

Key Features

• Mini LED recessed spotlight — 2W or 3W
• 5050 LED chip
• Two beam angles: 30° focused or 60° wide
• PWM dimmable
• D32mm body, 27mm cutout
• IP65 waterproof
• 170mm Teflon cable
• CRI >80Ra
• Three color temperatures: Warm White / Natural White / Cool White
• DC 12V or 24V compatible
• Operating temperature: -30°C to +50°C
• Lifespan: 50,000 hours
• CE and RoHS certified
• 5-year warranty

Lumen Output Reference

Specifications

• Product Type: Mini Recessed LED Spotlight
• LED Chip: 5050
• Material: Aluminum (Polished Chrome)
• Power: 2W / 3W
• Input Voltage: DC 12V / 24V
• Beam Angles: 30° / 60°
• IP Rating: IP65

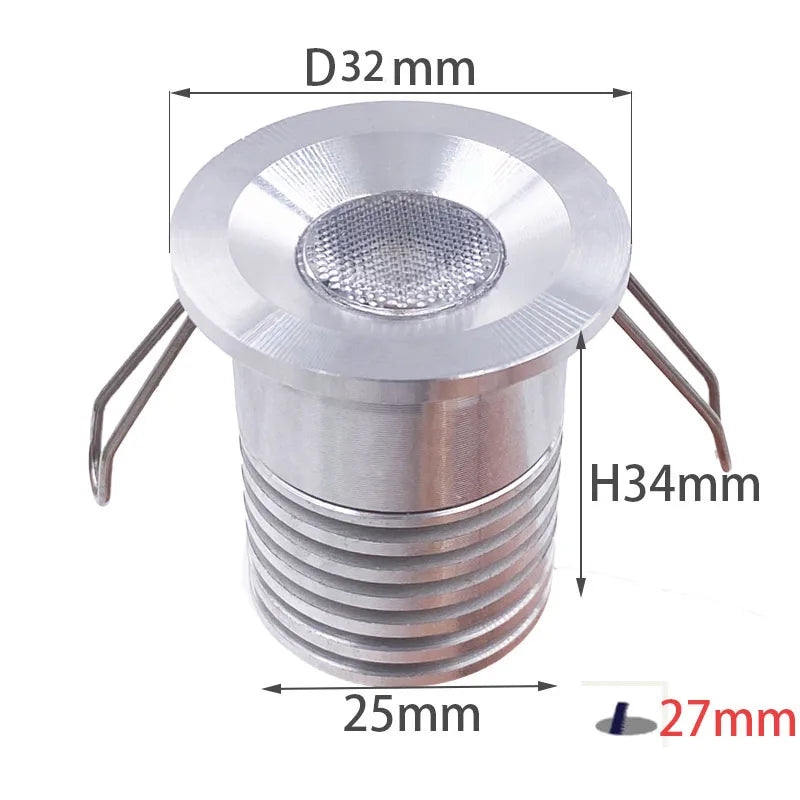

• Dimensions: D32 x H34mm
• Cutout: 27mm
• Cable: 170mm Teflon
• CRI: >80Ra
• Color Temperature: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (5500-6500K)
• Dimmable: Yes (PWM)
• Operating Temperature: -30°C to +50°C
• Power Tolerance: 5%
• Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 5 Years

Applications

• Sauna and bathroom ceiling spotlight
• Kitchen and display cabinet lighting
• Bedroom and living room ceiling accent
• Hotel and KTV accent lighting
• Staircase and corridor spotlight
• DC 12V/24V low-voltage system lighting
