3W DC 12V Mini LED Recessed Spotlight IP65 PWM Dimmable 30° RGB RGBW WW NW CW 28mm Cutout

This mini 3W DC 12V recessed LED spotlight features IP65 waterproof protection in a compact D32mm x H34mm aluminum body with a 28mm ceiling cutout. 30-degree narrow beam angle. CRI of over 80Ra. 100–130lm output. PWM dimmable. Operating temperature -30°C to +50°C. Rated lifespan of 50,000 hours.

Six color options: warm white (2700–3000K), natural white (4000–4500K), cool white (5500–6500K), RGB, RGBW 3000K, and RGBW 6000K.

Important purchasing notes:

• Input voltage is DC 12V only — do not connect to AC mains

• LED power supply is not included — purchase separately
• RGB and RGBW variants require a separate RGB/RGBW dimmer (not included)
• Common anode wiring: black wire = positive

Certified to CE and RoHS standards.

Key Features

• 3W DC 12V mini recessed LED spotlight — IP65 waterproof
• PWM dimmable
• 30-degree narrow beam angle
• CRI >80Ra — 100-130lm
• D32mm x H34mm body, 28mm cutout
• Color options: WW / NW / CW / RGB / RGBW 3000K / RGBW 6000K
• 170mm Teflon cable (white) / 270mm cable (RGB/RGBW)
• Operating temperature: -30°C to +50°C
• Lifespan: 50,000 hours
• Power supply and dimmer not included
• CE and RoHS certified
• 5-year warranty

Specifications

• Product Type: Mini DC 12V Recessed LED Spotlight
• Model: MC03 / MINI60A-3W
• Material: Aluminum
• Power: 3W
• Input Voltage: DC 12V
• Lumen Output: 100-130lm
• CRI: >80Ra
• Beam Angle: 30 degrees
• IP Rating: IP65
• Dimmable: Yes (PWM)

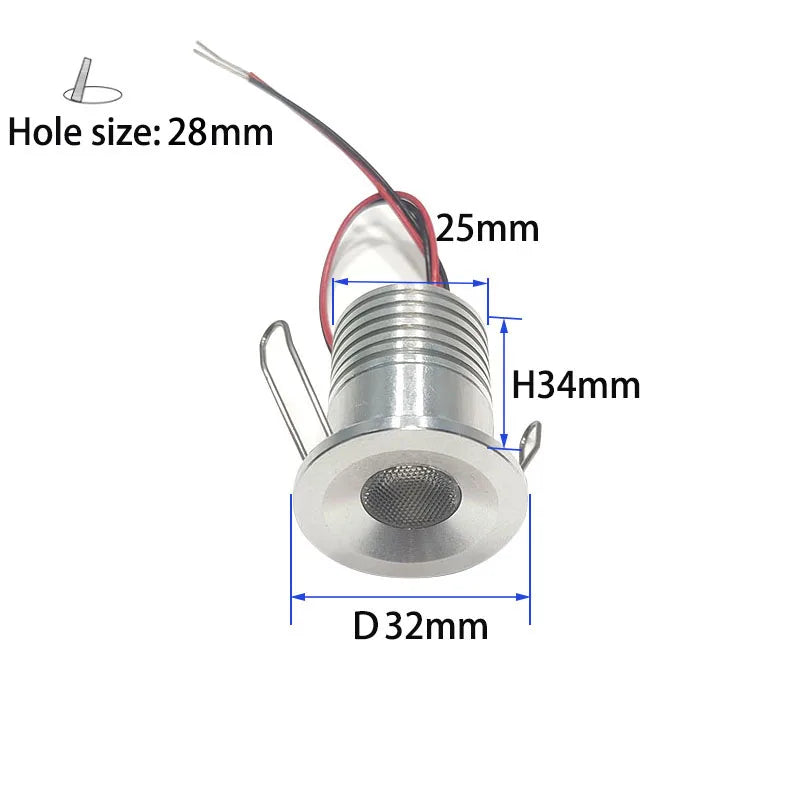

• Dimensions: D32 x H34mm
• Cutout: 28mm

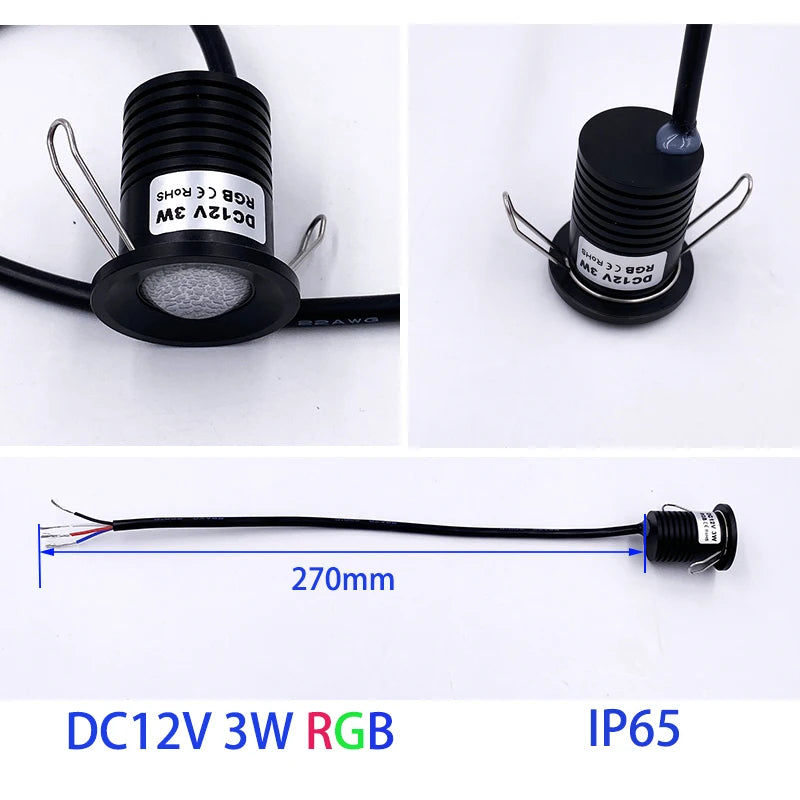

• Cable: 170mm Teflon (WW/NW/CW) / 270mm (RGB/RGBW)
• Color Options: WW (2700-3000K) / NW (4000-4500K) / CW (5500-6500K) / RGB / RGBW 3000K / RGBW 6000K
• Wiring: Common Anode (black = positive)
• Operating Temperature: -30°C to +50°C
• Power Tolerance: 5%
• Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 5 Years

Applications

• Display cabinet and wine rack lighting
• Staircase and corridor accent lighting
• Sauna and bathroom spotlight
• KTV, bar, and restaurant mood lighting
• Kitchen and bedroom ceiling accent
• Retail showcase and jewelry display
