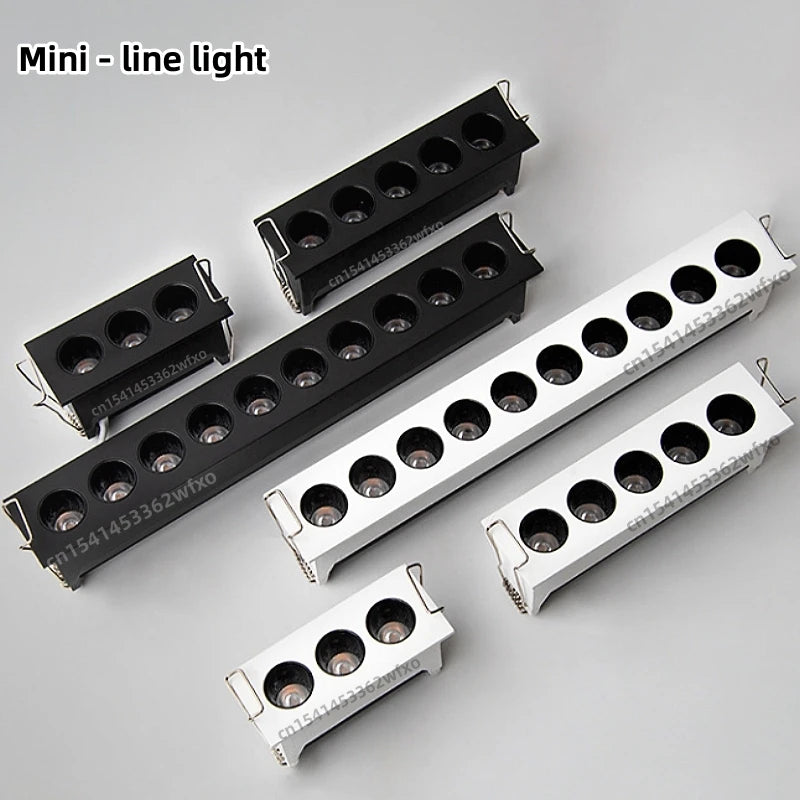

Dimmable Mini COB LED Grille Downlight 6W 12W 24W 30° 85lm/W AC 100-130V 200-240V No Glare

This dimmable mini COB LED recessed grille downlight uses SMD3030 chips with an integrated reflector for no-glare, focused 30-degree accent and ambient lighting. Knob dimmer switch. Aluminum housing with separated light unit design for uniform illumination and efficient heat dissipation. Power factor of 0.9. Luminous efficiency of 85 lm/W. External LED driver included. Operating temperature -40°C to +45°C.

Two voltage configurations: AC 100–130V (North American 110V systems) and AC 200–240V. Select the correct voltage at order.

Certified to CE and CCC standards.

Key Features

• Dimmable mini LED recessed grille downlight

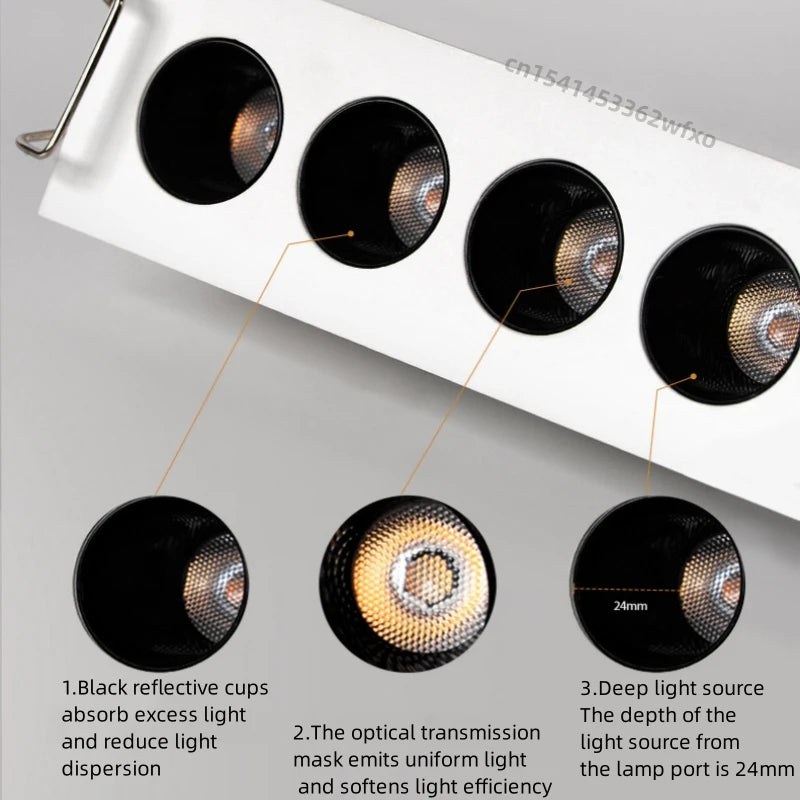

• SMD3030 chips with integrated reflector — no glare
• 30-degree focused beam angle
• 85 lm/W luminous efficiency
• Power factor: 0.9
• Knob dimmer switch

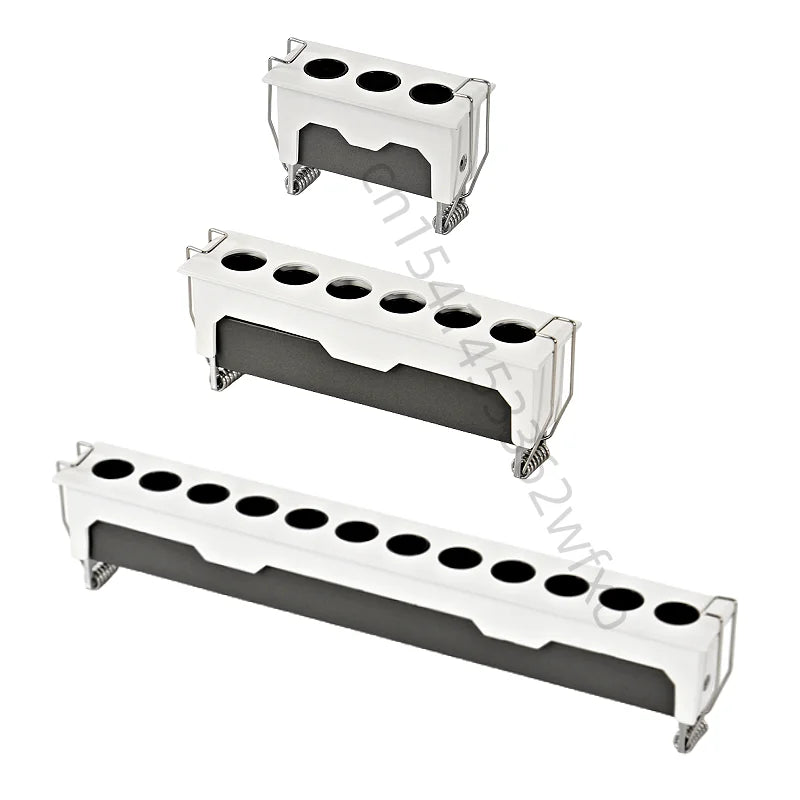

• Available in 6W, 12W, and 24W
• Three color temperatures: Warm White, Natural White, Cool White
• AC 100-130V (North America) or AC 200-240V — select at order
• Operating temperature: -40°C to +45°C
• CE and CCC certified
• 5-year warranty

Specifications

• Product Type: Dimmable Mini Recessed COB LED Grille Downlight
• LED Chip: SMD3030
• Light Design: LED + Reflector
• Material: Aluminum

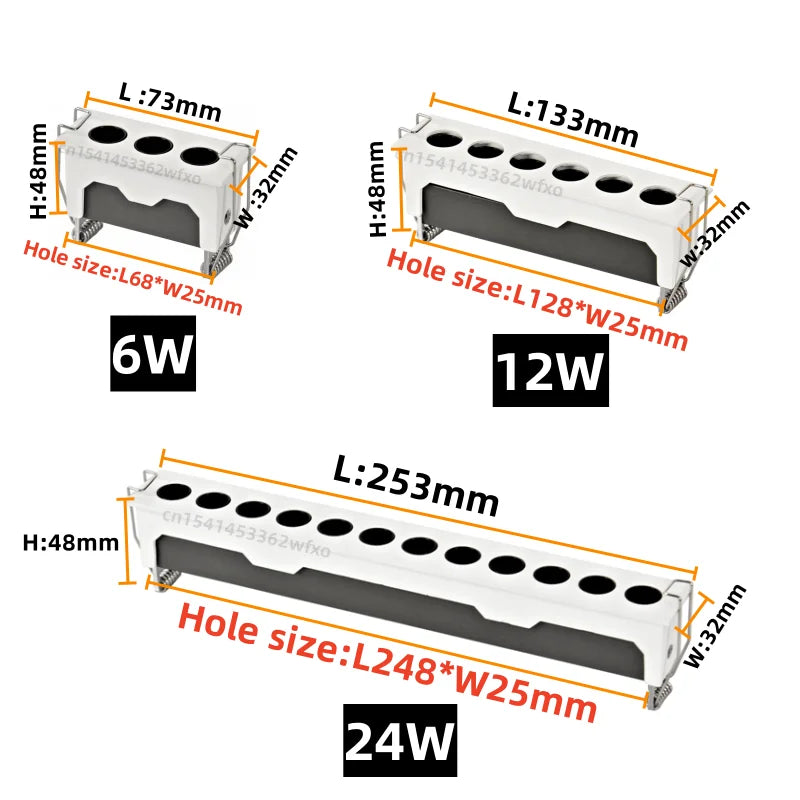

• Power Options: 6W / 12W / 24W
• Input Voltage: AC 100-130V / AC 200-240V, 50-60Hz
• Luminous Efficiency: 85 lm/W
• Power Factor: 0.9
• Beam Angle: 30 degrees

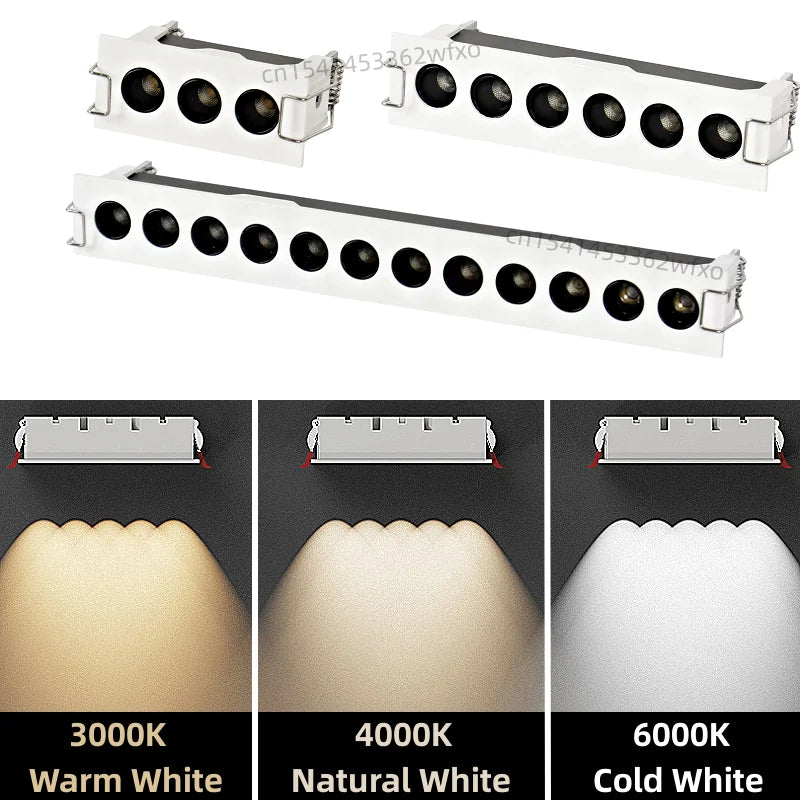

• Color Temperature: Warm White (2700-3000K) / Natural White (4000-4200K) / Cool White (6000-6500K)
• Dimmable: Yes (Knob Switch)
• Driver: External, included
• Operating Temperature: -40°C to +45°C
• Power Tolerance: 1%
• Certification: CE, CCC
• Warranty: 5 Years

Applications

• Living room and foyer ceiling accent lighting
• Bedroom and dining room downlight
• Hotel and restaurant interior lighting
• Retail and commercial display lighting
• Corridor and office grille ceiling lighting
