IP65 PIR Motion Sensor Switch AC 85-265V 160 Degree 6 to 8 Meter Detection Range Adjustable Sensitivity Timer Day Night Mode ABS Panel Mount

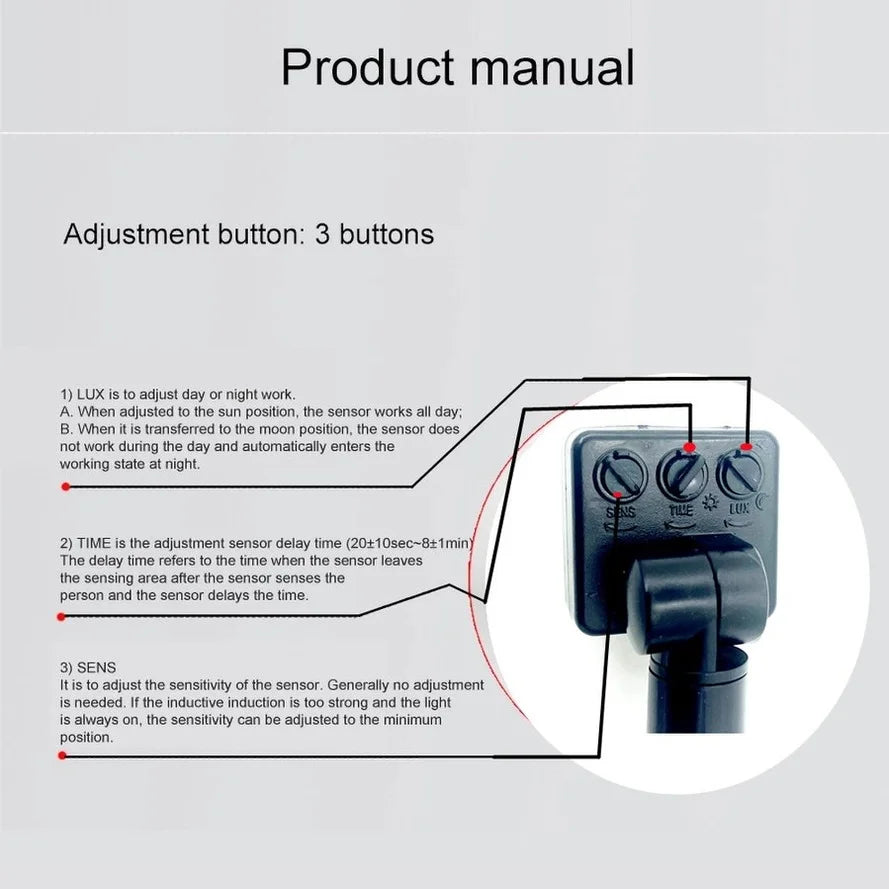

This IP65 rated PIR motion sensor switch features a 160-degree detection range and 6 to 8 meter detection distance. Three adjustable controls: sensitivity (SENS), delay timer 8 seconds to 6 minutes (TIME), and day/night mode (LUX). 10mm or 12mm panel opening. Flame-retardant ABS body. Compatible with AC 85 to 265V. Operating temperature -10C to +40C. Dimensions: 42 x 40 x 20mm.

Certified to CE standards.

Key Features

• IP65 PIR motion sensor switch
• 160-degree detection range
• 6 to 8 meter detection distance
• Adjustable sensitivity (SENS)
• Adjustable delay timer: 8 seconds to 6 minutes (TIME)
• Day/night mode selector (LUX)
• 10mm or 12mm panel opening
• Flame-retardant ABS body
• AC 85 to 265V compatible
• Operating temperature: 10C to +40C
• CE certified

Specifications

• Product Type: IP65 PIR Motion Sensor Switch
• Material: ABS
• IP Rating: IP65
• Detection Range: 160 degrees
• Detection Distance: 6 to 8 meters (at 25C)
• Ambient Lighting: 2 to 2000 LUX (adjustable)
• Delay Timer: 8 seconds to 6 minutes (adjustable)
• Sensitivity: Adjustable
• Day/Night Mode: Adjustable (LUX)
• Panel Opening: 10mm / 12mm
• Input Voltage: AC 85 to 265V
• Working Humidity: Under 93% RH
• Operating Temperature: 10C to +40C
• Installation Height: 1.8 to 2.5m

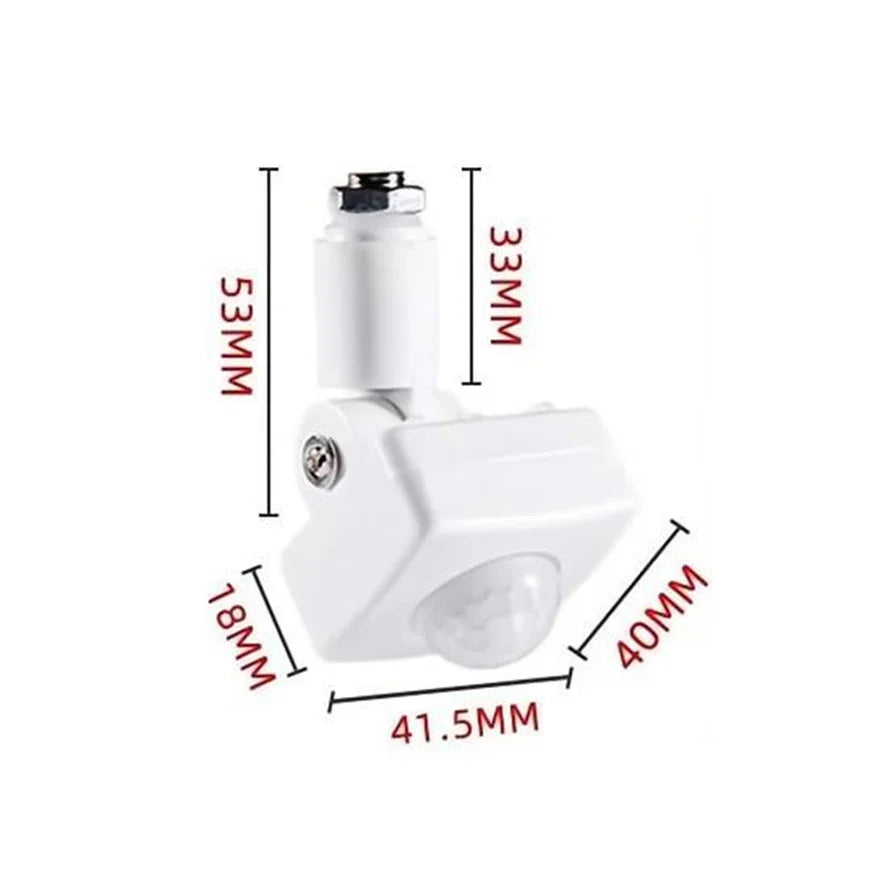

• Dimensions: 42 x 40 x 20mm
• Certification: CE
• Pack: 1

Applications

• Outdoor flood light PIR motion sensor
• Garden and pathway motion detector switch
• Security lighting automatic sensor
• Indoor and outdoor panel mount motion switch
• Commercial and residential motion sensor control
