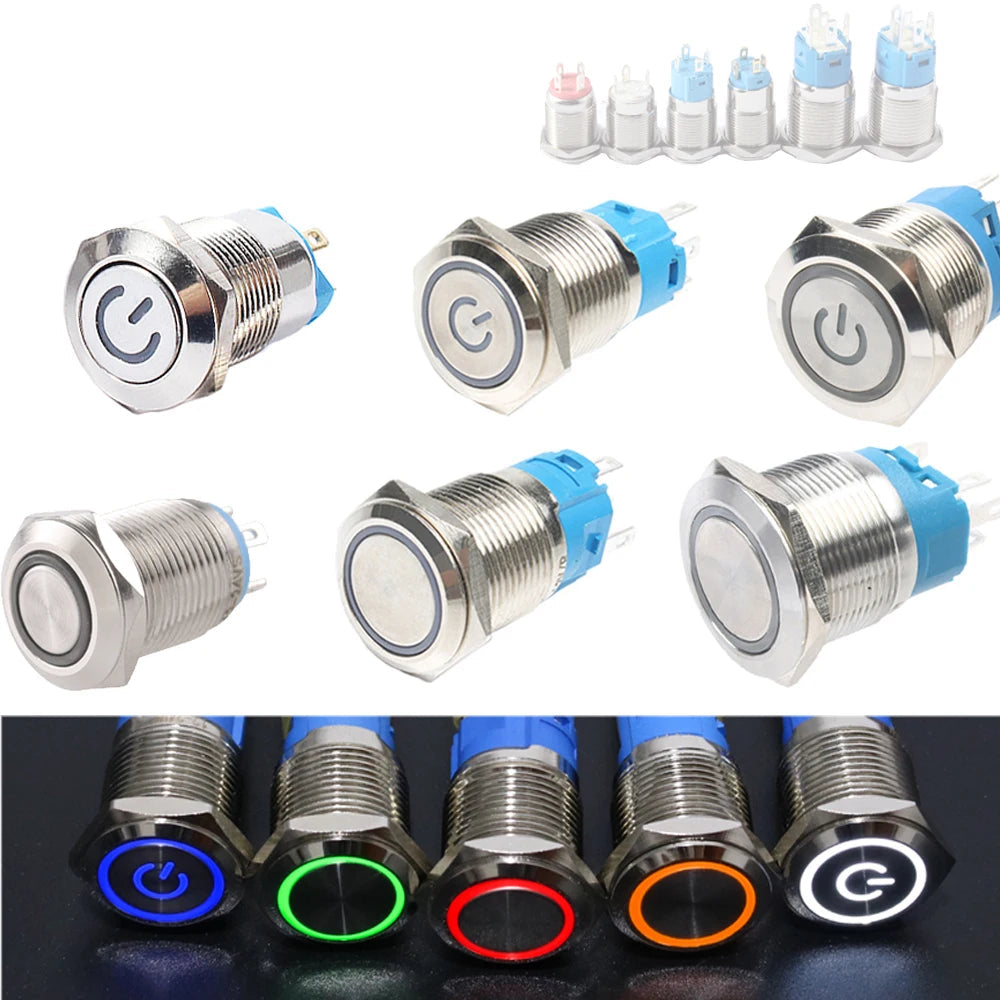

Metal LED Push Button Switch 12 16 19 22mm IP65 Self-Reset Self-Lock 5A 250V CE RoHS CCC

This IP65 waterproof metal push button switch is available in four panel cutout sizes — 12mm, 16mm, 19mm, and 22mm — in both self-reset (momentary) and self-lock (latching) configurations. Three LED voltage options — 3–6V, 12–24V, and 110–220V — cover a wide range of control panel and equipment applications. Note that the 12mm size has a different contact rating and configuration from larger sizes.

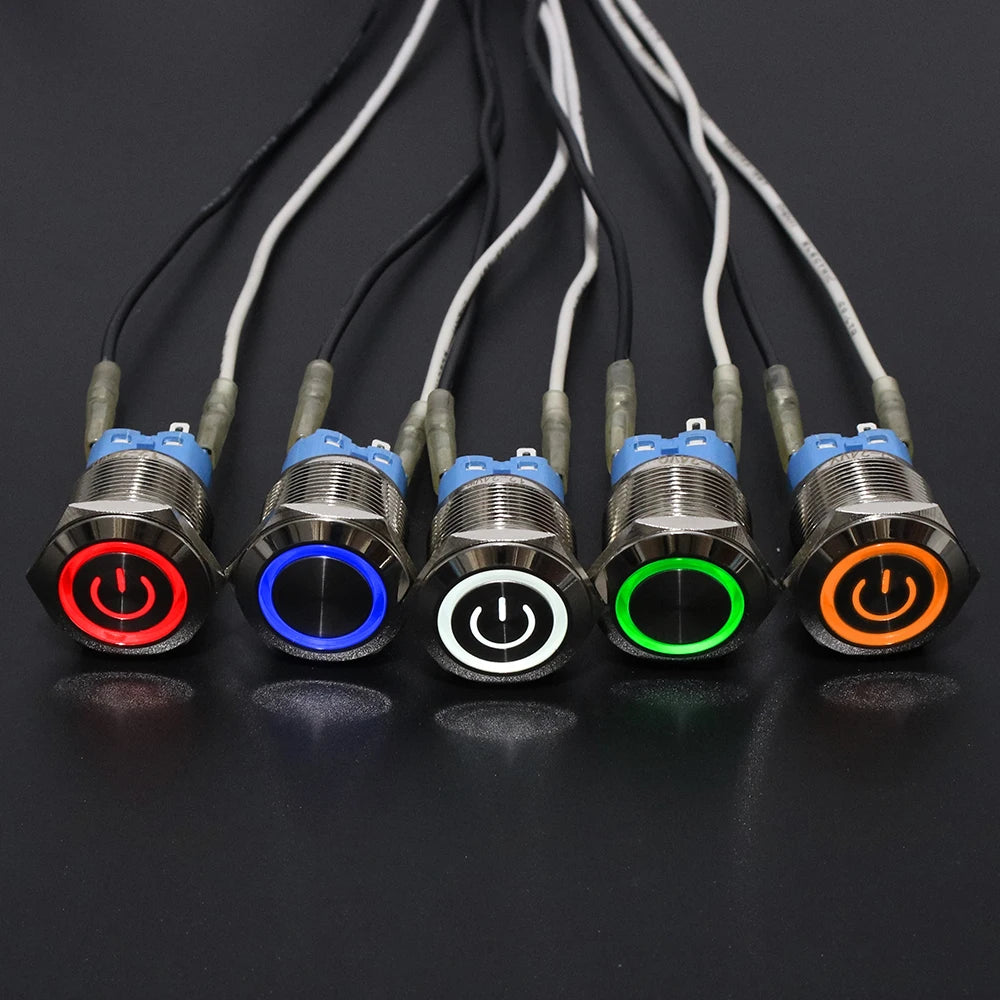

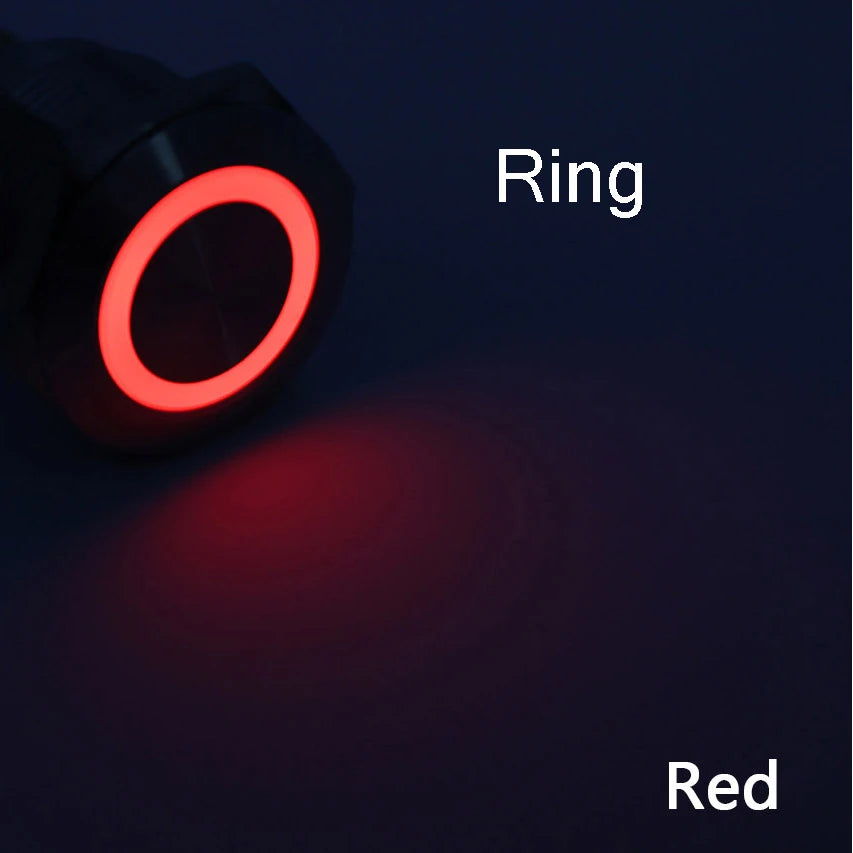

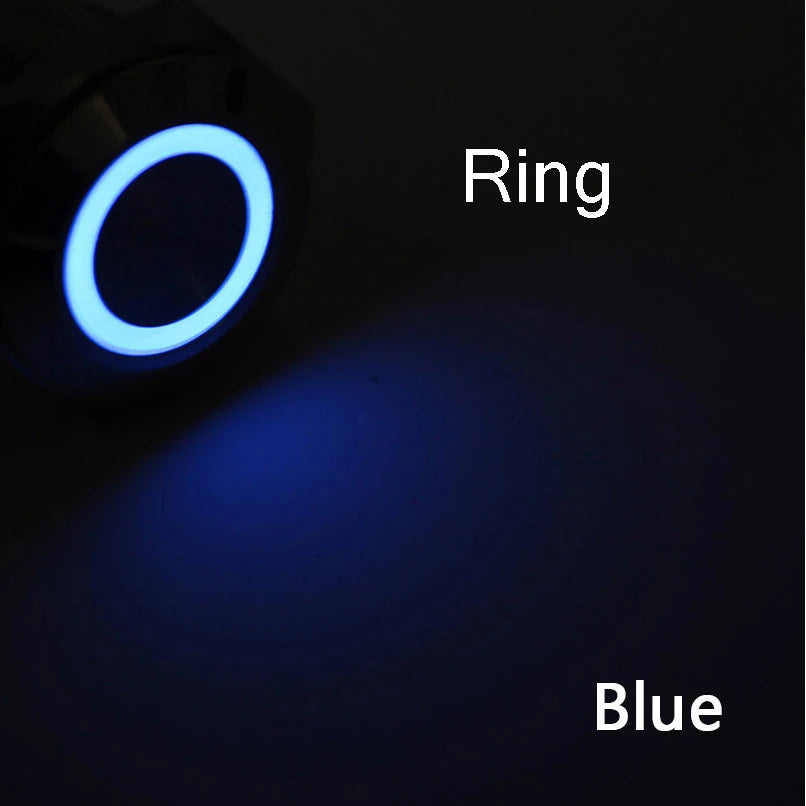

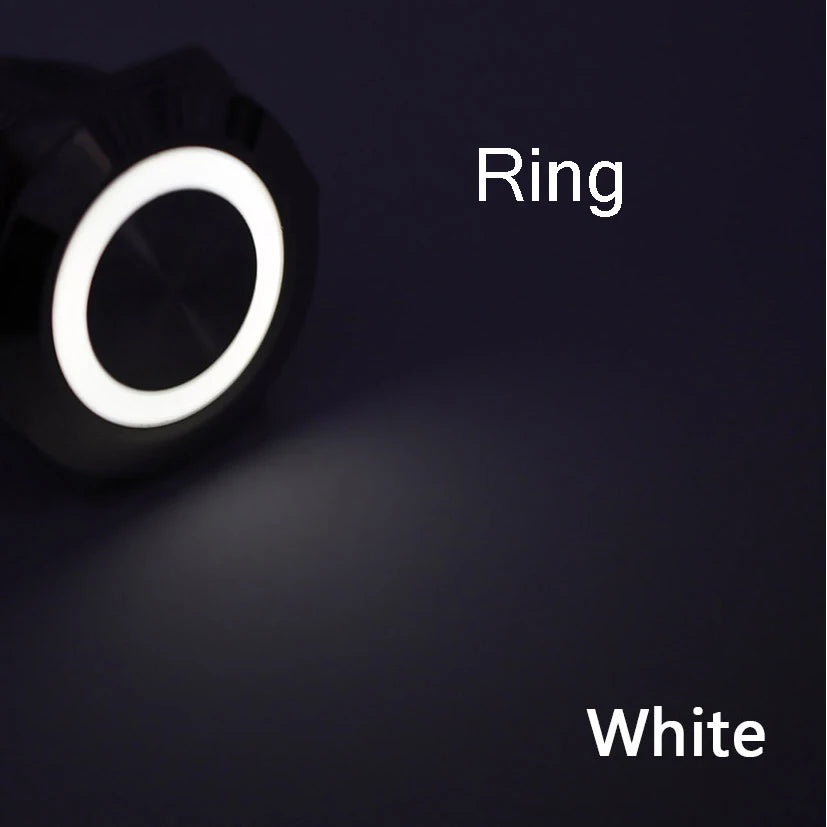

LED ring indicator in red, yellow, blue, white, and green as standard; purple and orange available on custom order. Each switch is supplied as a single unit without sockets.

Certified to CE, RoHS, and CCC standards.

Brand: DIANQI

Key Features

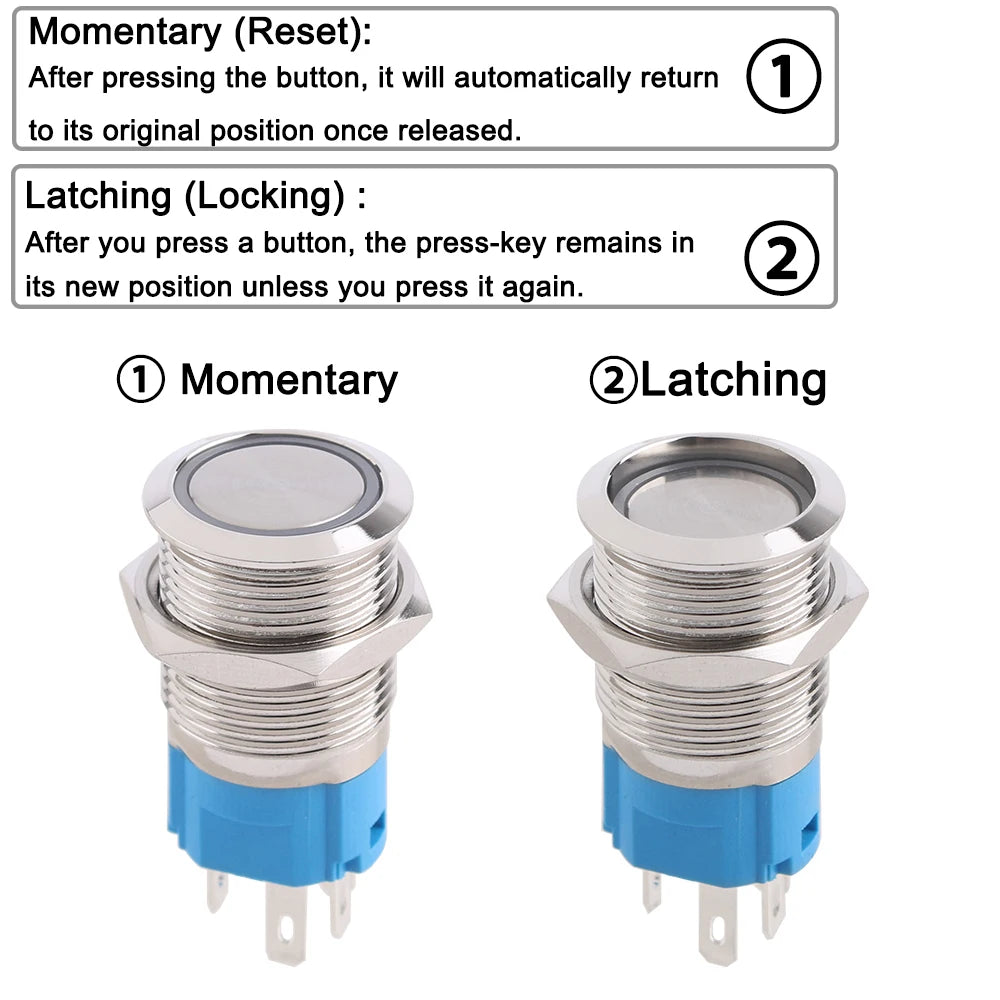

• Self-reset (momentary) and self-lock (latching) switch types

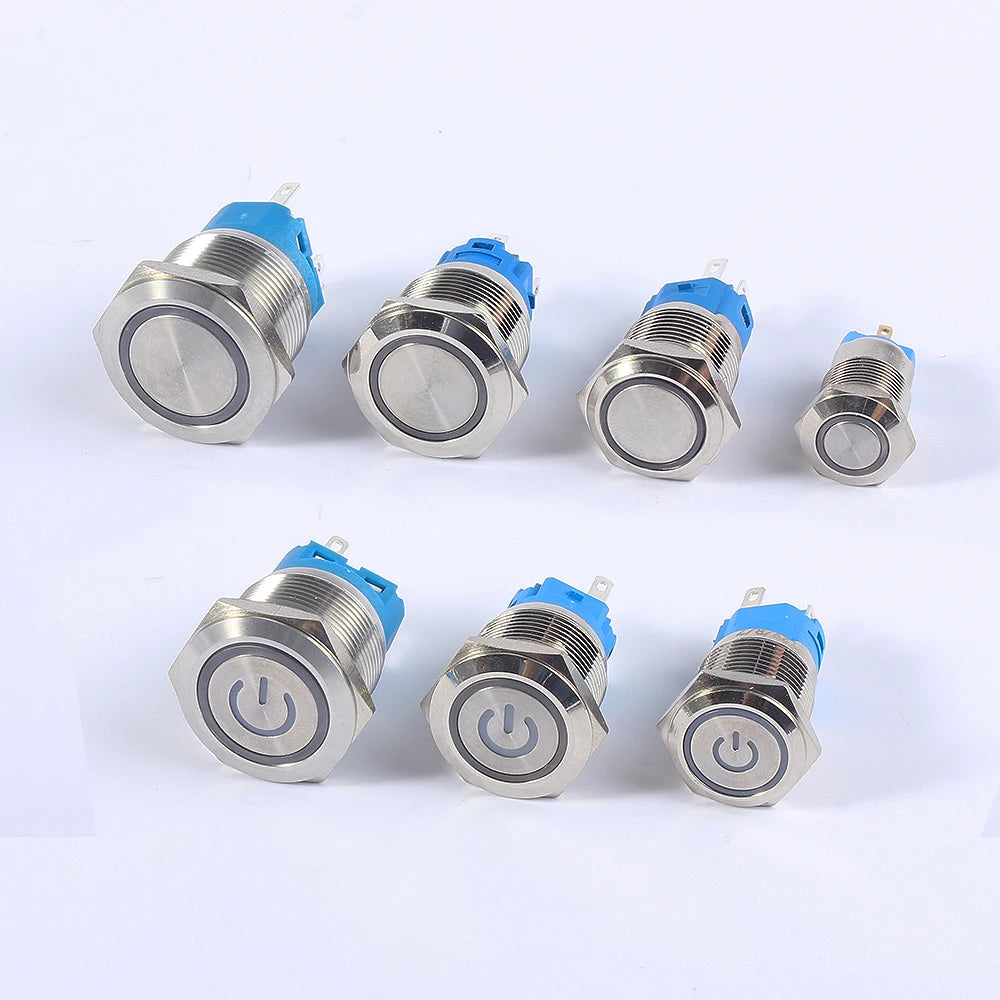

• Panel cutout sizes: 12mm, 16mm, 19mm, 22mm
• IP65 waterproof

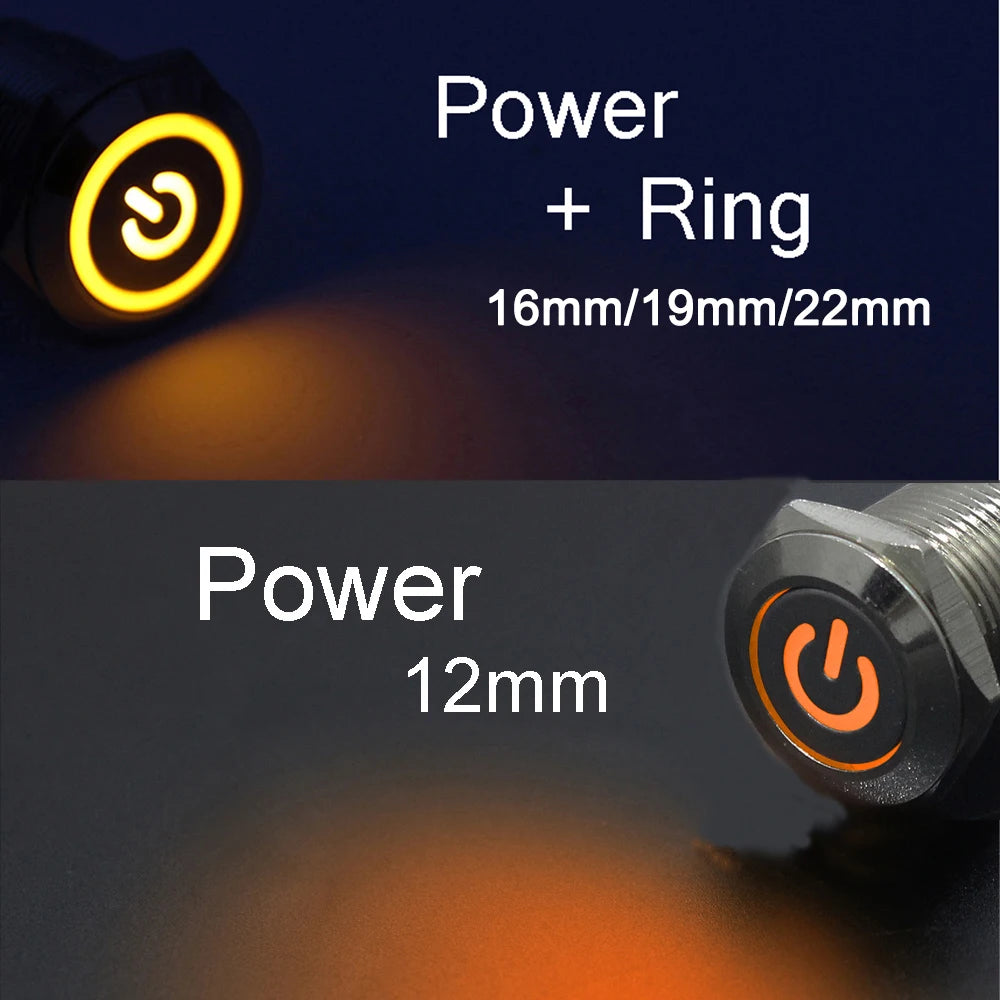

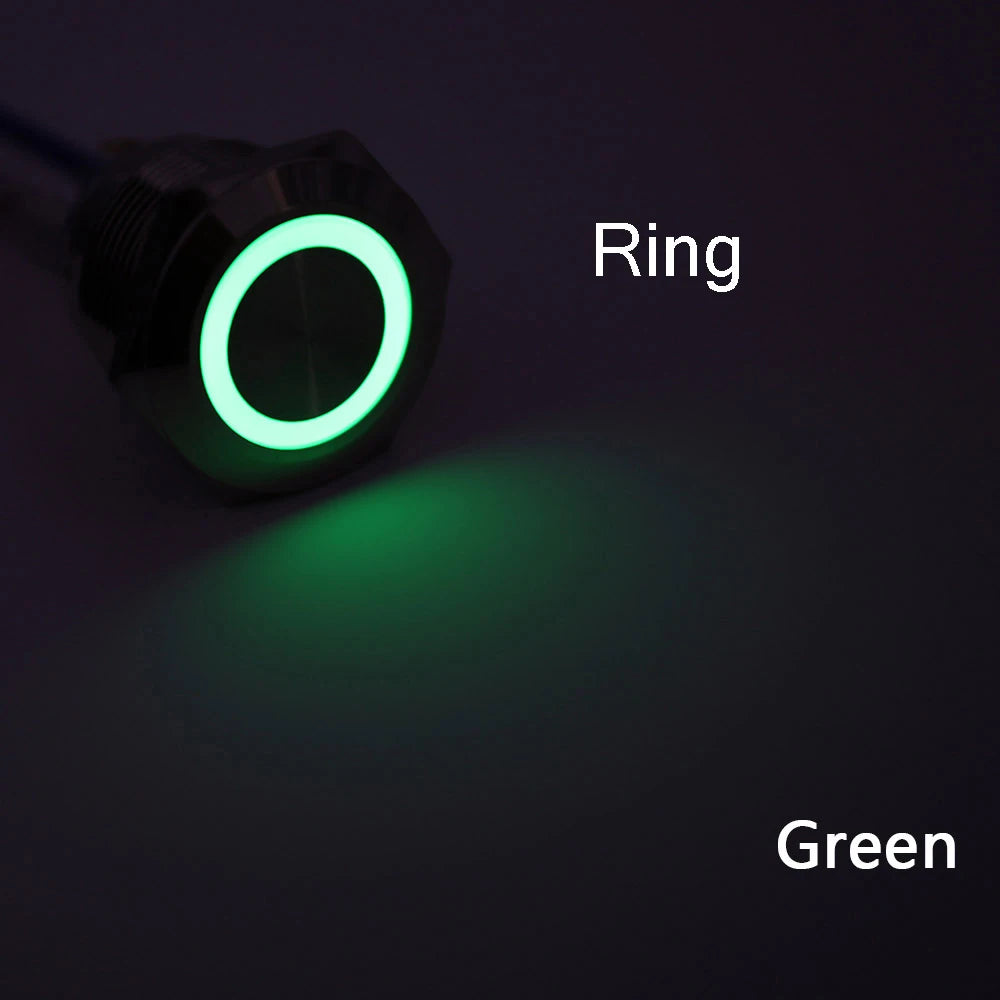

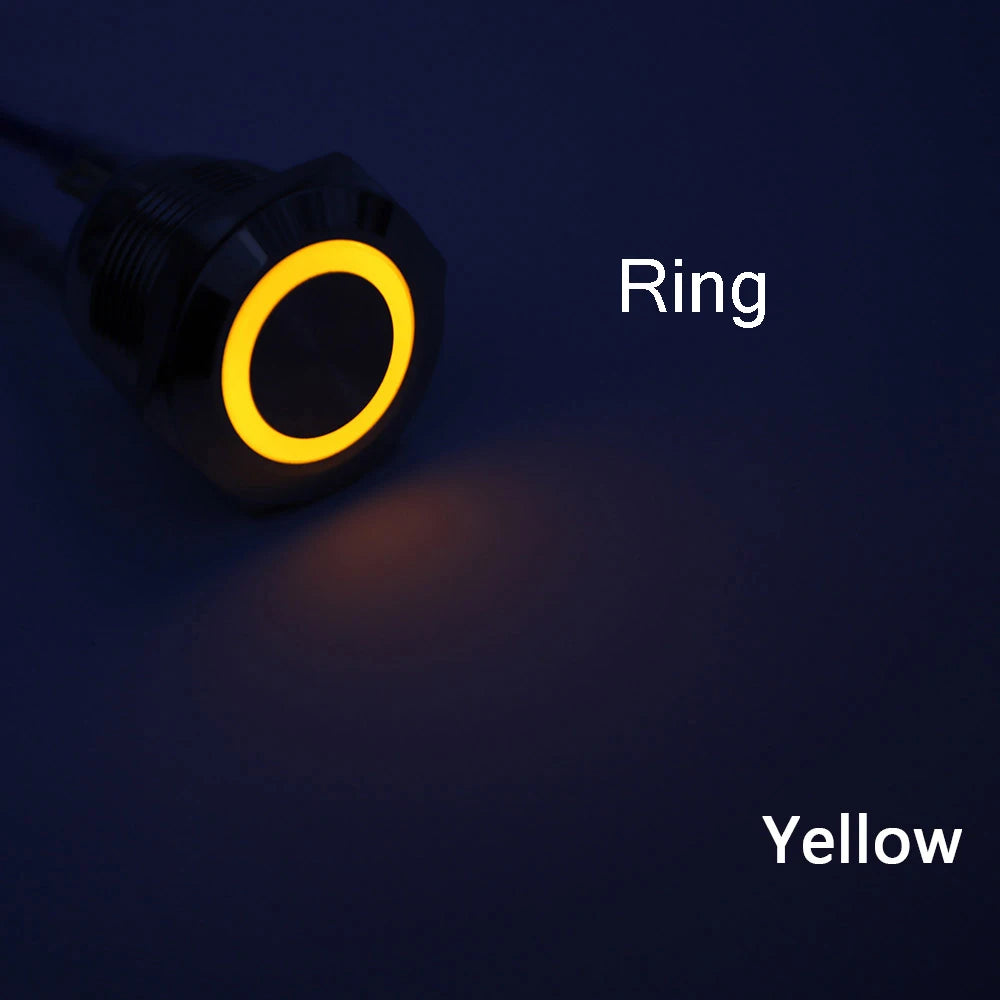

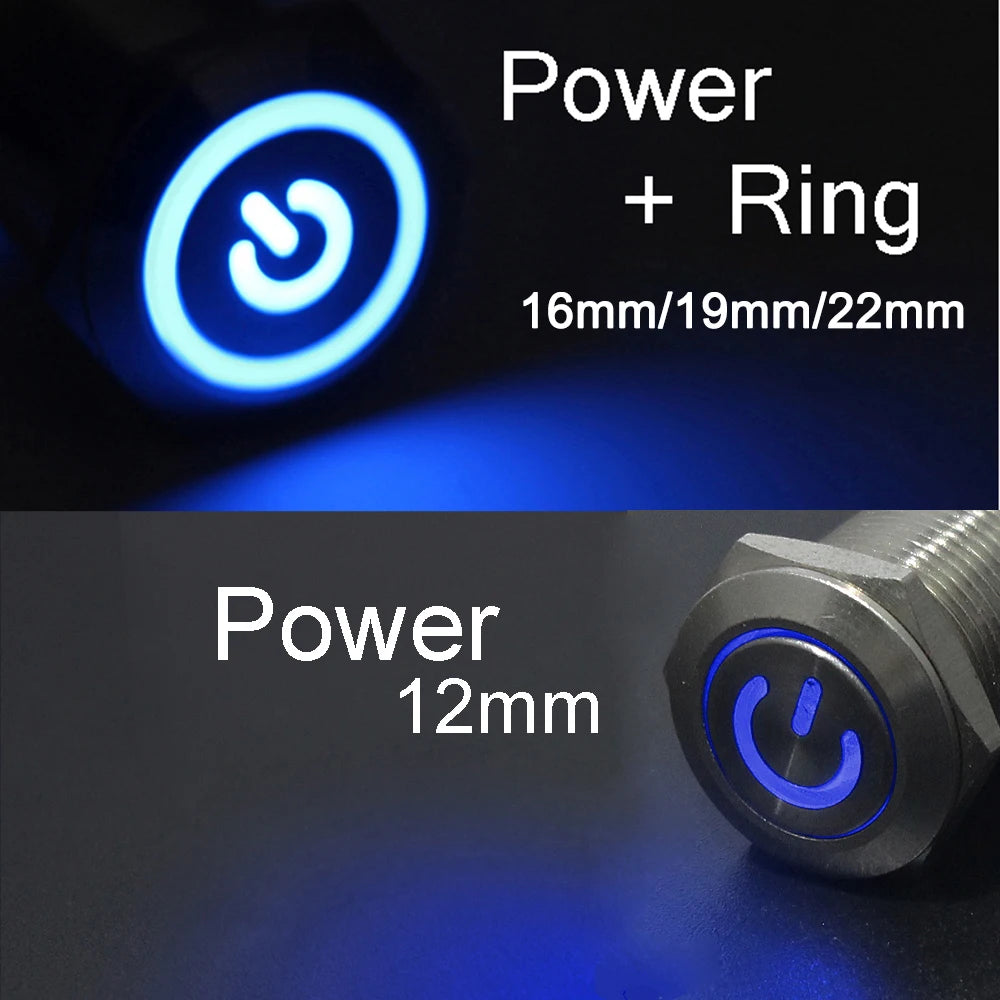

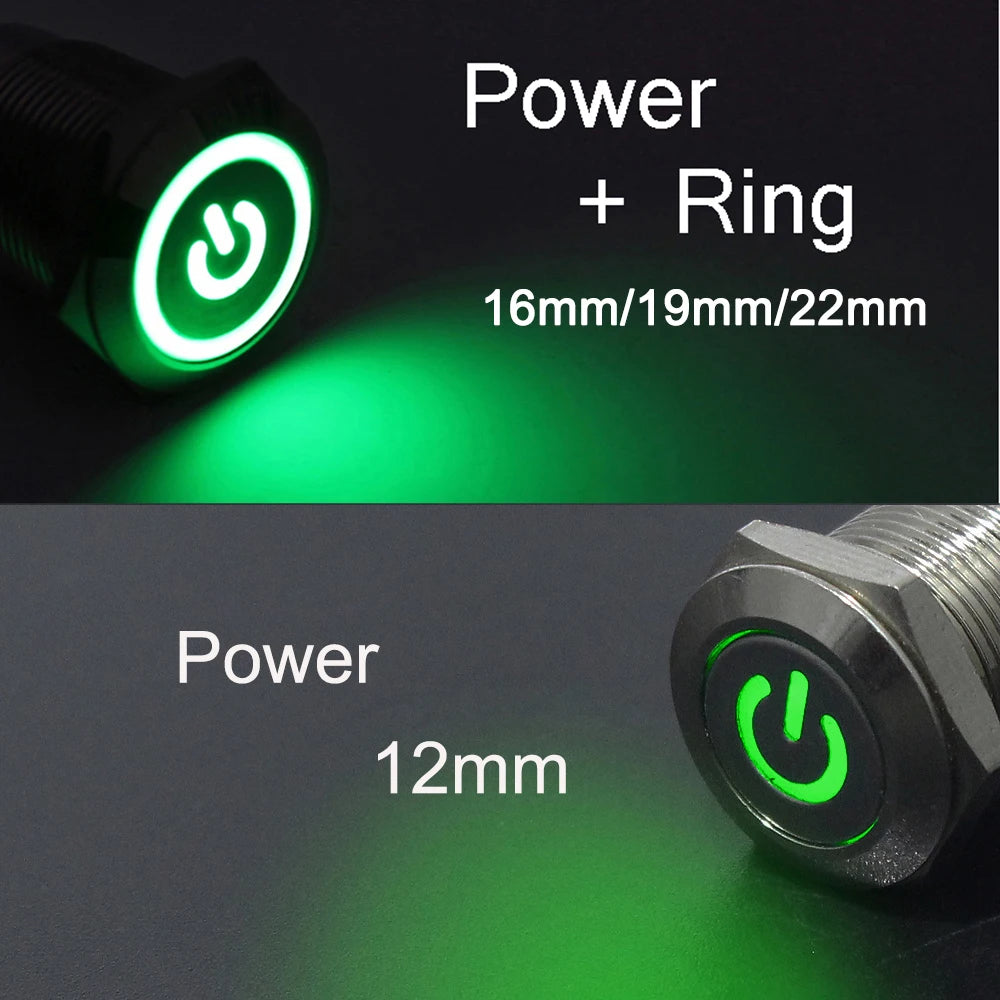

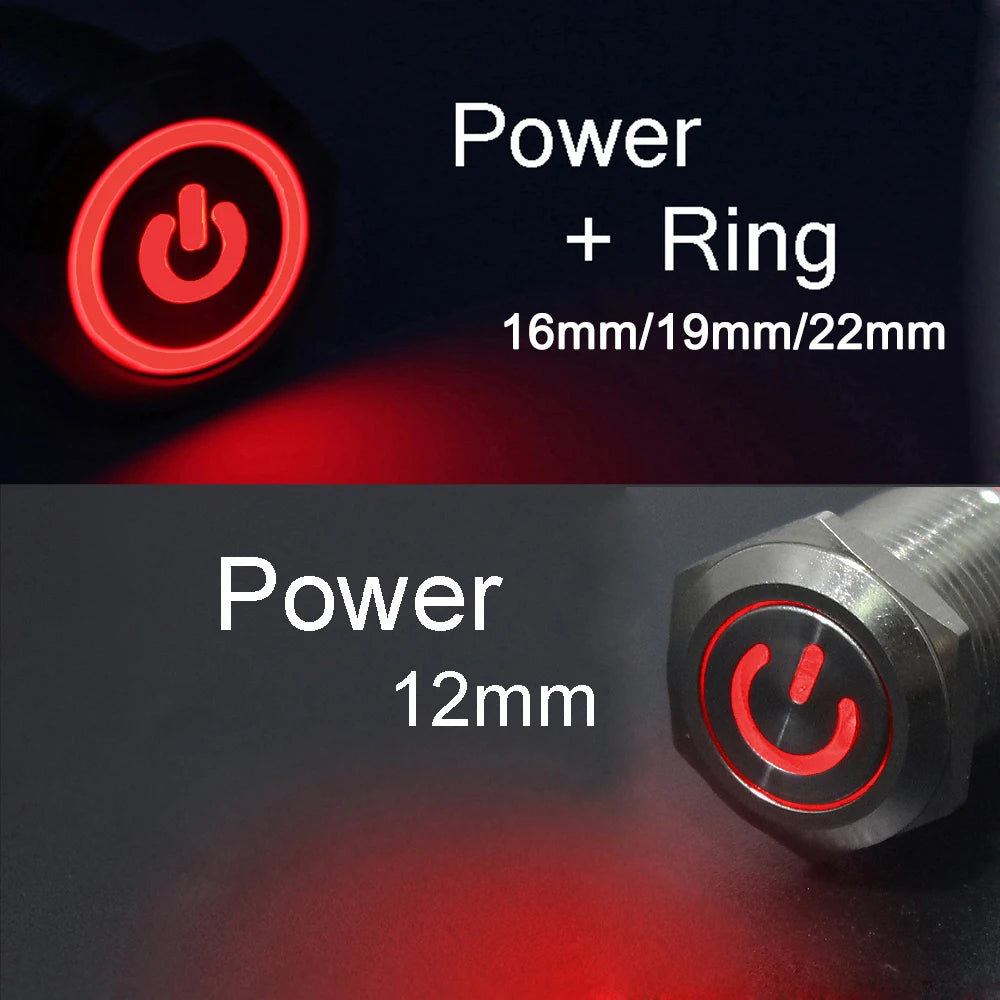

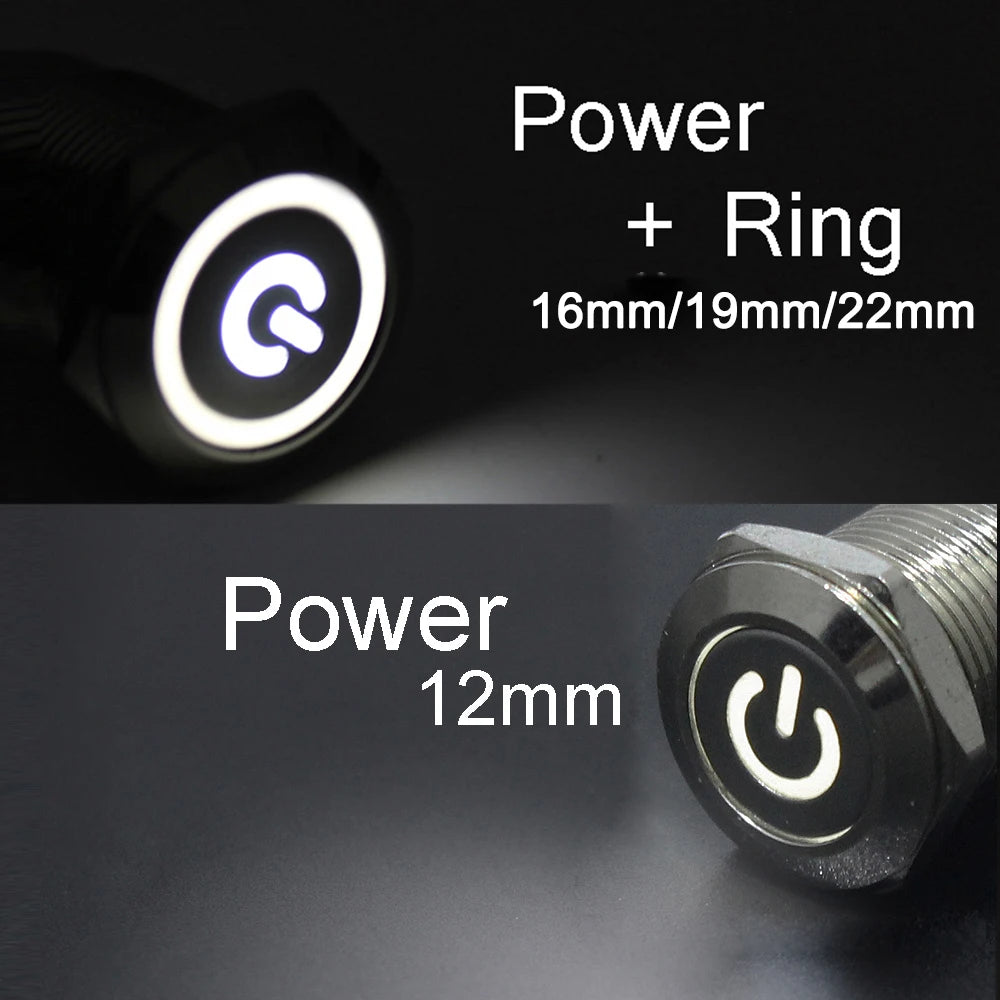

• LED indicator: Red, Yellow, Blue, White, Green (Purple/Orange custom)
• Three LED voltage options: 3-6V / 12-24V / 110-220V
• Brass chrome plated and aluminum oxide body options
• Stainless steel available on request
• Sockets not included
• CE, RoHS, and CCC certified
• 1-year warranty

Specifications

• Product Type: Metal LED Push Button Switch
• Switch Types: Self-Reset / Self-Lock

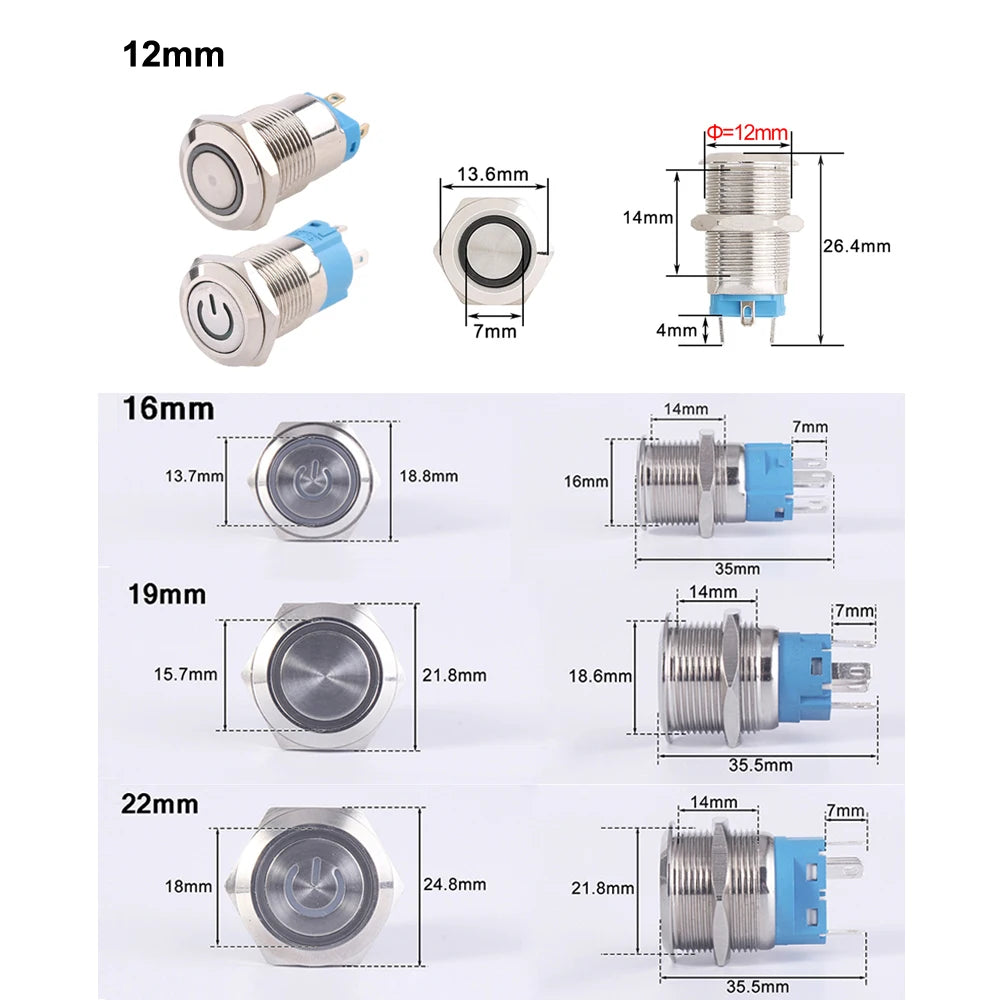

• Panel Cutout Sizes: 12mm / 16mm / 19mm / 22mm
• Materials: Brass Chrome Plated / Aluminum Oxide
• LED Colors: Red / Yellow / Blue / White / Green
• LED Voltage: 3-6V / 12-24V / 110-220V
• LED Current: 15mA
• IP Rating: IP65
• Certification: CE, RoHS, CCC
• Includes: 1 switch (no sockets)

Applications

• Industrial control panels
• Automotive dashboard controls
• PC and electronics power switches
• Equipment and device on/off controls
• Custom panel builds
