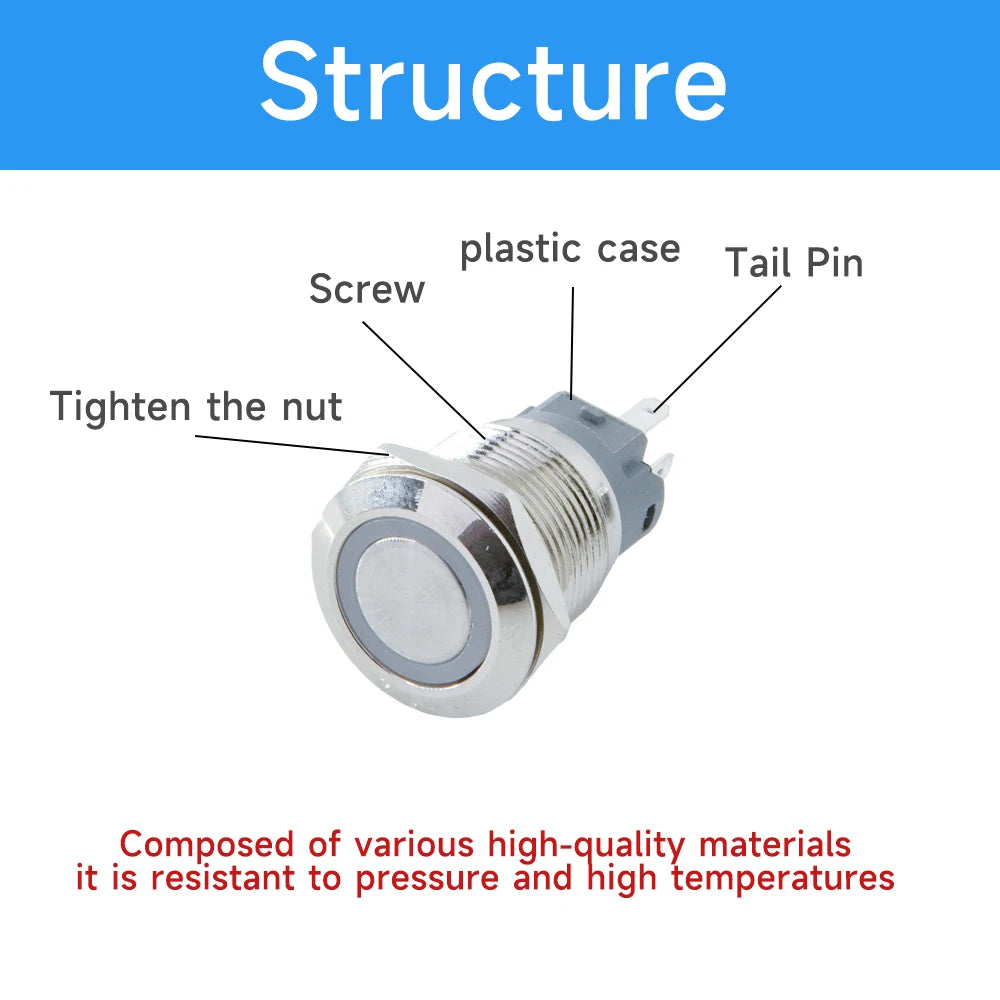

Metal Push Button Switch 12 16 19 22mm IP65 Self-Reset Self-Lock LED 3-220V NO NC CCC

This IP65 waterproof metal push button switch is available in four panel cutout sizes — 12mm, 16mm, 19mm, and 22mm — in two operational modes: self-reset (momentary, returns to default position on release) and self-lock (latching, maintains state until pressed again). Three material options — aluminum alloy, brass with nickel plating, and brass with chrome finish — with stainless steel available on custom order.

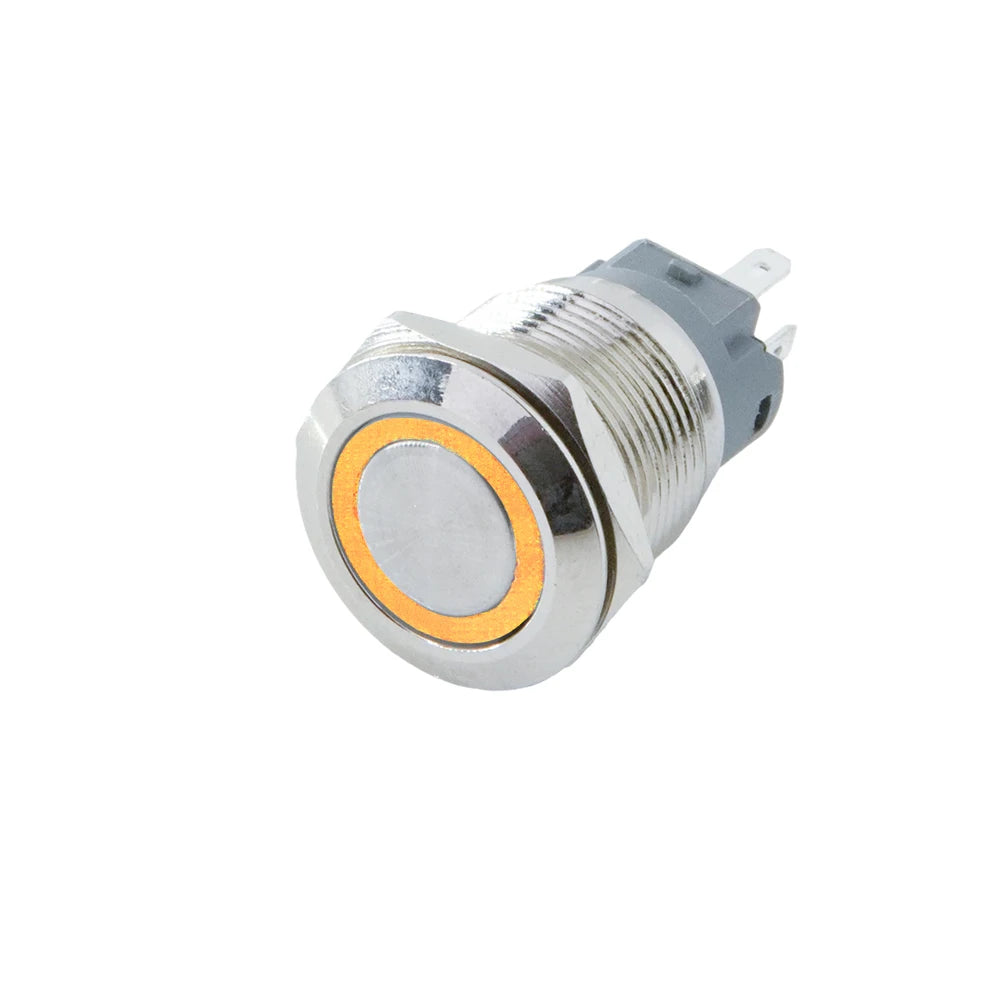

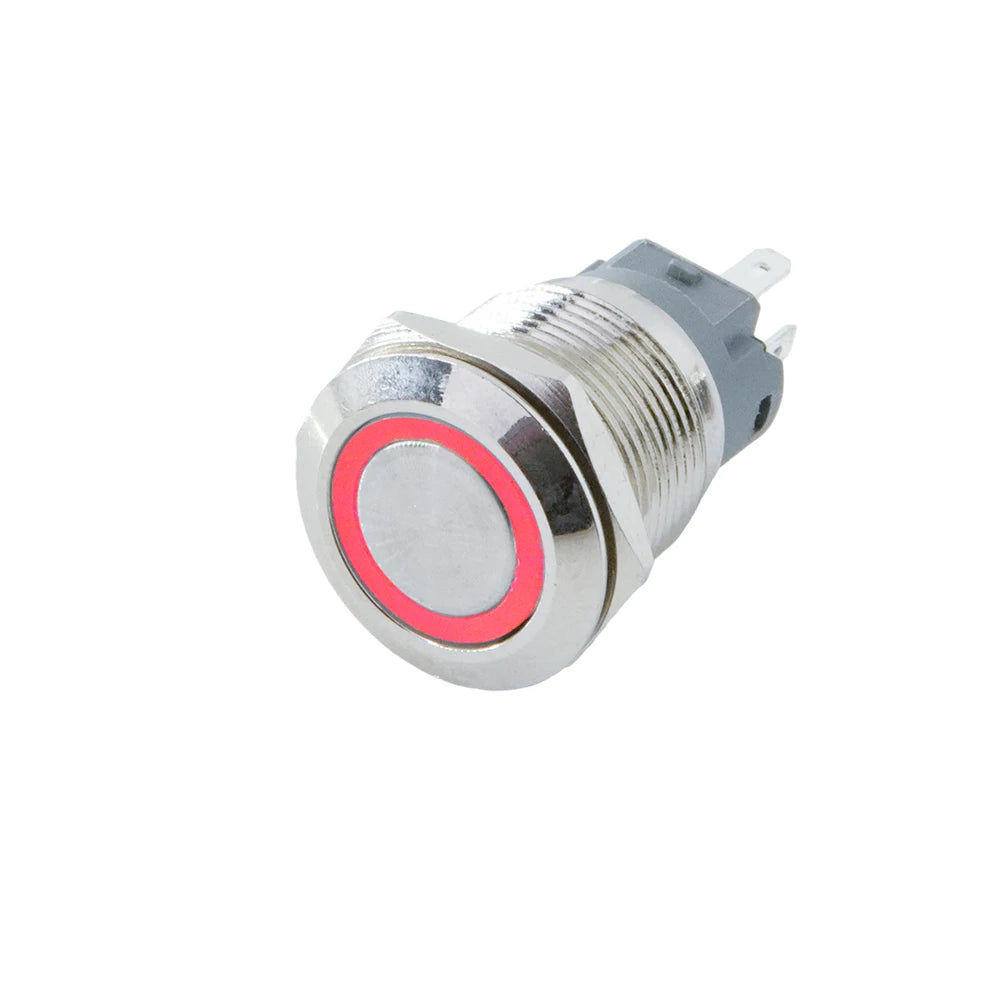

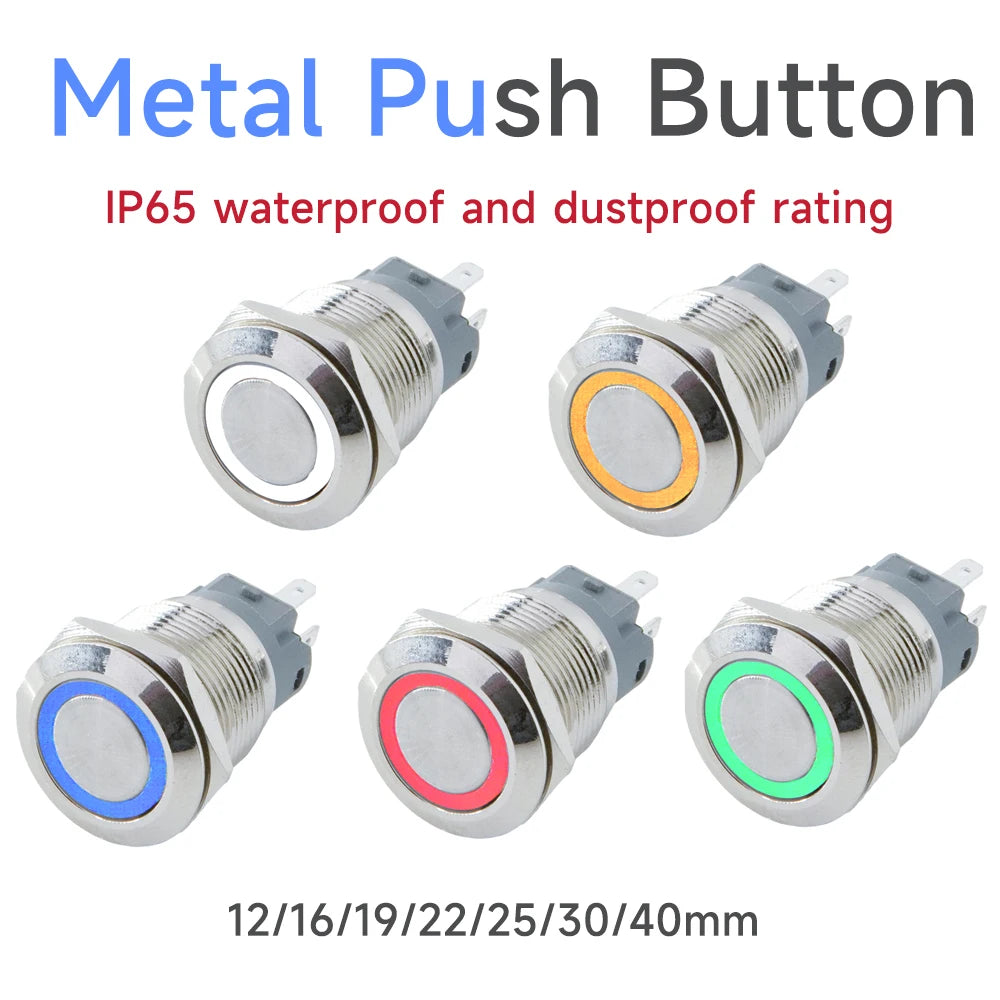

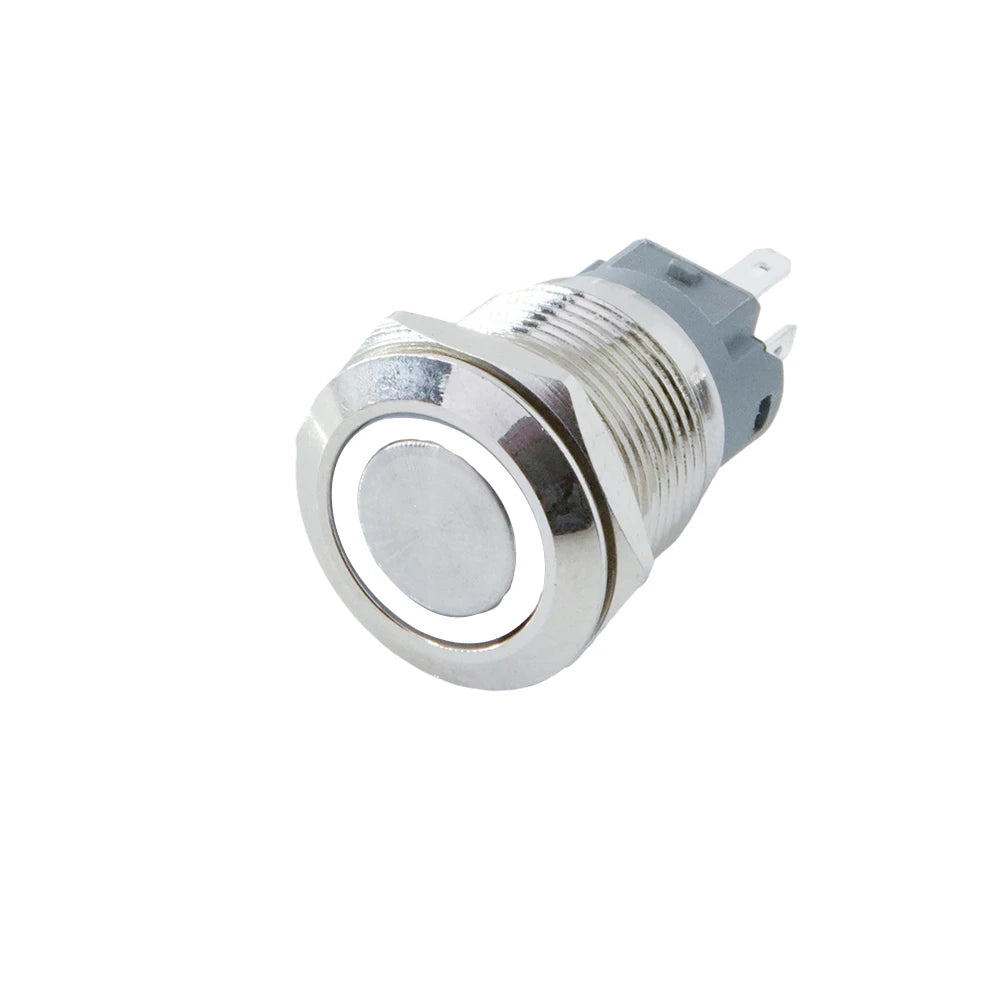

LED indicator ring available in red, yellow, blue, white, and green. Both NO (Normally Open) and NC (Normally Close) contact configurations are supported. LED and contact voltage range from 3V to 220V.

Certified to CCC standards.

Key Features

• Metal push button switch in self-reset and self-lock types
• Panel cutout sizes: 12mm, 16mm, 19mm, 22mm
• IP65 waterproof
• LED ring indicator: Red, Yellow, Blue, White, Green
• Materials: Aluminum alloy / Brass nickel / Brass chrome
• Stainless steel available on custom order
• NO and NC contact configurations
• Voltage range: 3-220V
• CCC certified
• 1-year warranty

Specifications

• Product Type: Metal LED Push Button Switch
• Switch Types: Self-Reset (Momentary) / Self-Lock (Latching)
• Panel Cutout Sizes: 12mm / 16mm / 19mm / 22mm
• Material: Aluminum Alloy / Brass Nickel / Brass Chrome
• LED Colors: Red / Yellow / Blue / White / Green
• Contact Configuration: NO (Normally Open) / NC (Normally Close)
• Voltage Range: 3-220V
• IP Rating: IP65
• Certification: CCC
• Warranty: 1 Year

Applications

• Industrial control panels and machinery
• Automotive dashboard switches
• PC and electronics power controls
• Equipment and device on/off switching
• Custom control panel builds
