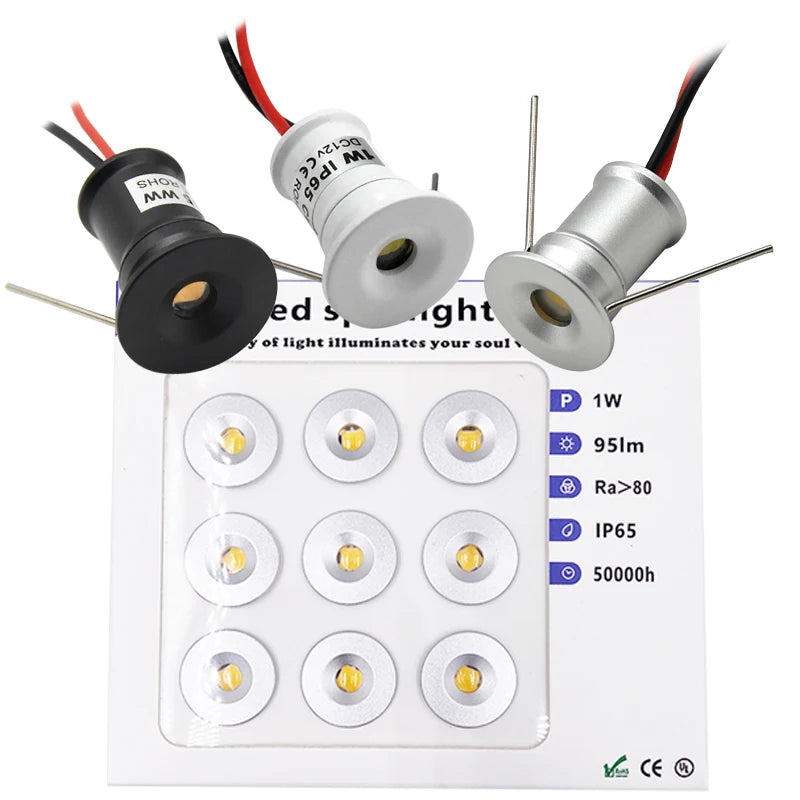

Mini 1W DC12V LED Recessed Spotlight IP65 D20mm 15mm Cutout PWM Dimmab

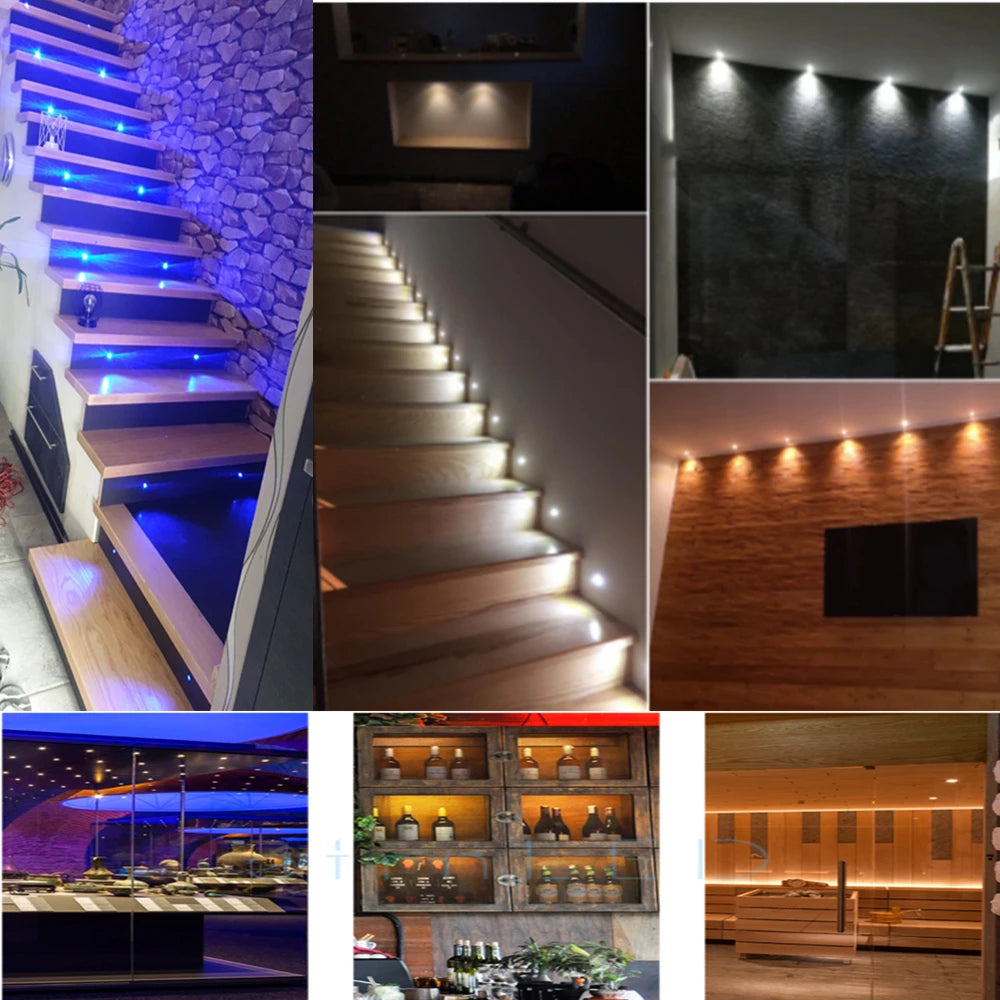

This mini 1W recessed LED spotlight uses an Epistar 5050 chip in a compact D20mm x 25mm aluminum body fitting a 15mm ceiling cutout with a 470mm Teflon-insulated cable. Suitable for display cabinets, showcases, bedroom ceilings, kitchen cabinets, staircases, wine cabinets, bookcases, bars, and KTV environments.

Available in two beam angle options — 30-degree narrow accent or 120-degree broad diffusion — and a wide selection of color temperatures: warm white, natural white, cool white, blue, green, red, and RGB. Black and white body finishes. PWM dimmable. 100–300 lm at 1W. CRI of over Ra80. IP65 waterproof. Rated lifespan of 50,000 hours.

DC 12V power supply required — not included. A separate DC 12V constant-voltage LED power supply must be purchased and installed.

Certified to UL, ETL, CE, and RoHS standards.

Brand: Ohlite

Model: MC03 TFR-1WA

Key Features

Epistar 5050 chip — 1W, 100-300lm
CRI >Ra80 for natural color rendering

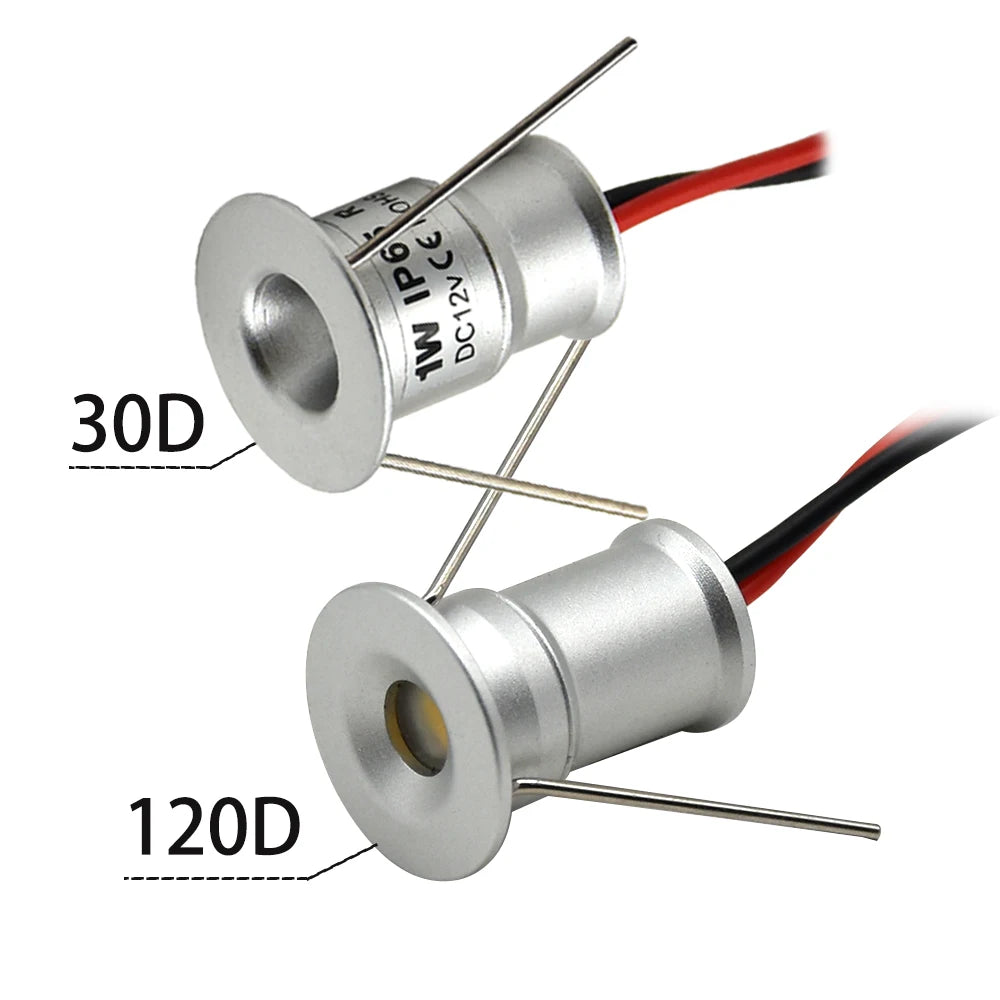

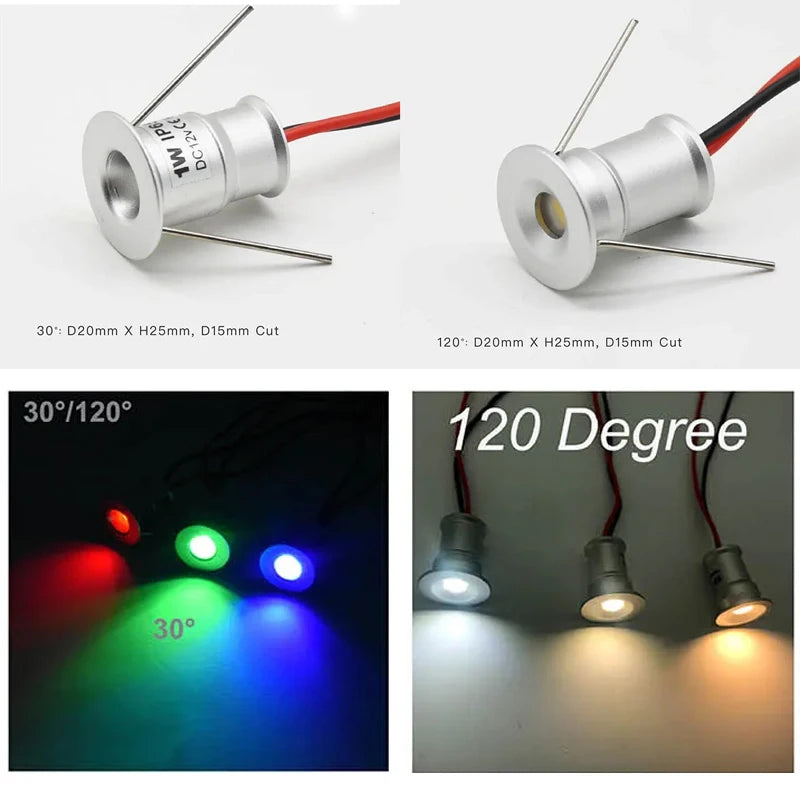

Beam angles: 30° (narrow accent) or 120° (broad)
PWM dimmable
IP65 waterproof
D20mm body, 15mm cutout
470mm Teflon cable
Colors: Warm White, Natural White, Cool White, Blue, Green, Red, RGB
Black and white body finishes
Operating lifespan: 50,000 hours
DC 12V power supply not included
CE and RoHS certified
2-year warranty

Specifications

Product Type: Mini Recessed LED Spotlight
LED Chip: Epistar 5050
Material: Aluminum
Body Colors: Black / White
Finish: Nickel
Power: 1W
Lumen Output: 100-300lm
Input Voltage: DC 12V
Beam Angles: 30° / 120°
CRI: >Ra80
IP Rating: IP65

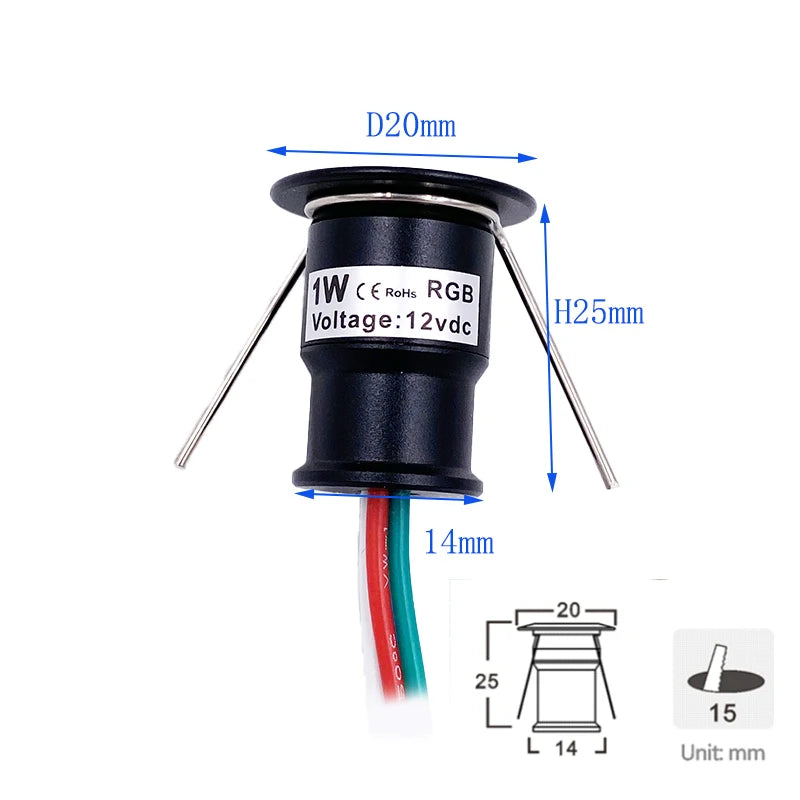

Body Size: D20 x H25mm
Cutout Size: D15mm
Cable: 470mm Teflon
Color Temperature: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (6000-6500K) / Blue / Green / Red / RGB
Dimmable: Yes (PWM)
Operating Lifespan: 50,000 hours
Power Tolerance: 5%
Certification: UL, ETL, CE, & RoHS
Warranty: 2 Years
Power Supply: Not included
