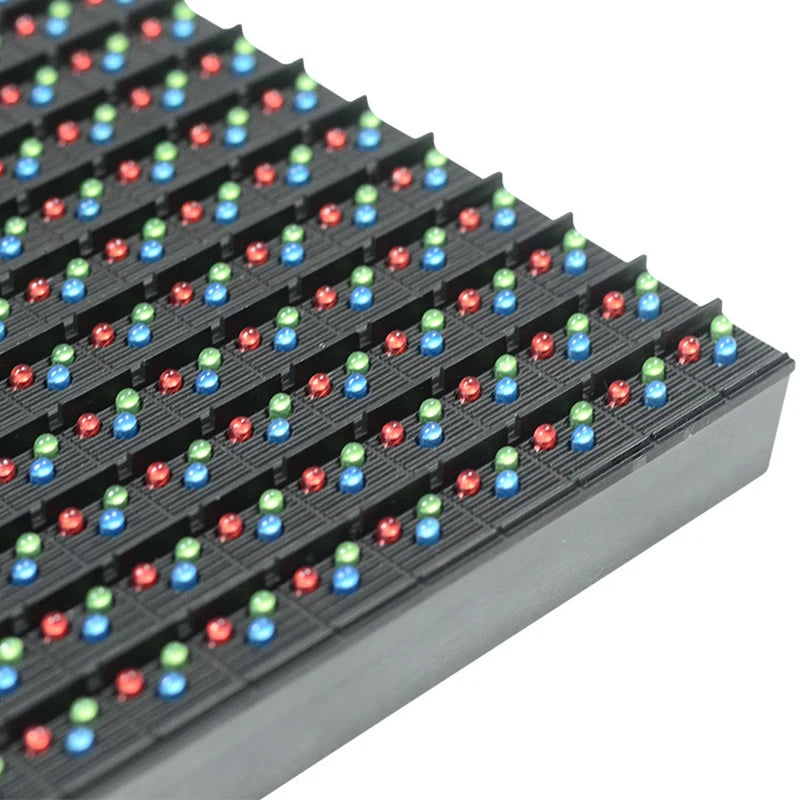

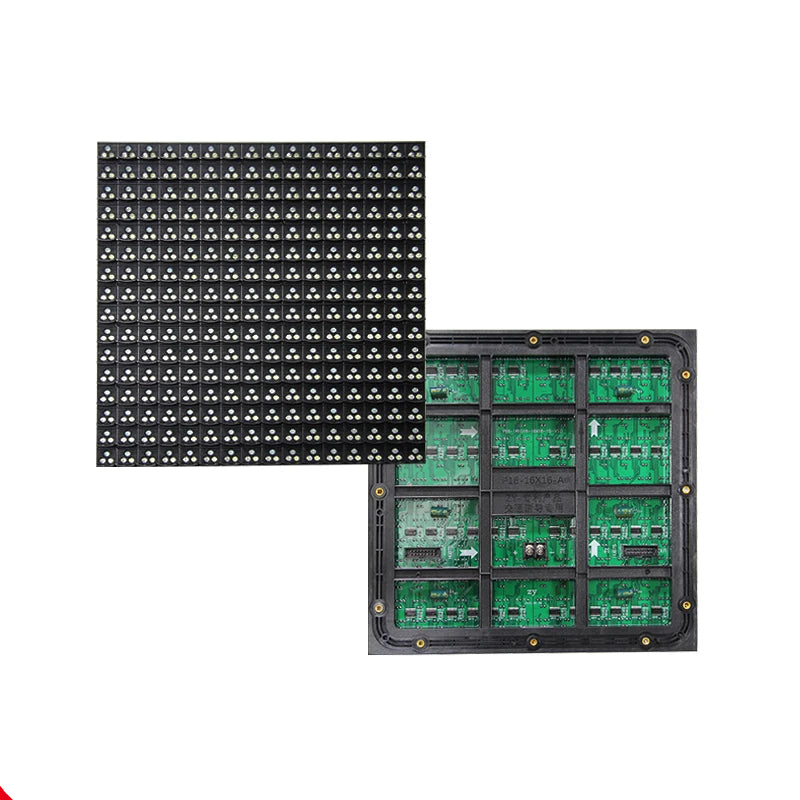

P16 DIP RGB LED Module Panel 256x256mm IP65 Outdoor Video Wall Display 35W 7500 cd/m2 HUB75 Static Scan 16x16 Pixels

This P16 DIP RGB LED module panel is designed for outdoor video wall and display applications. 256 x 256mm module size with 16 x 16 pixel resolution at 16mm pixel pitch. Static scan method. Pure black mask for high contrast. Brightness of over 7500 cd/m2. 110-degree horizontal and 90-degree vertical viewing angle. IP65 waterproof rated. HUB75 port. Compatible with Nova, Linsn, Colorlight, and Xixun control cards. 35W maximum power. 33mm module thickness. Lifespan of 100,000 hours. Data and power cables included.

Key Features

• P16 DIP RGB LED module panel for outdoor video wall
• 256 x 256mm, 16 x 16 pixels, 16mm pixel pitch
• Brightness: over 7500 cd/m2
• Static scan, pure black mask, high contrast
• Viewing angle: 110 degrees horizontal, 90 degrees vertical
• IP65 waterproof rated
• HUB75 port
• Compatible with Nova, Linsn, Colorlight, and Xixun control cards
• 35W maximum power
• Data and power cables included
• Lifespan: 100,000 hours
• 2-year warranty

Specifications

• Product Type: P16 DIP RGB LED Module Panel
• Model: DIP P16
• Pixel Pitch: 16mm
• Module Size: 256 x 256mm
• Pixel Resolution: 16 x 16 pixels
• Pixel Density: 3906 pixels/m2
• Pixel Configuration: 1R1G1B
• Package Mode: DIP346
• Scan Method: Static
• Brightness: over 7500 cd/m2
• Viewing Angle: 110 degrees horizontal, 90 degrees vertical
• Max Power: 35W
• Module Thickness: 33mm

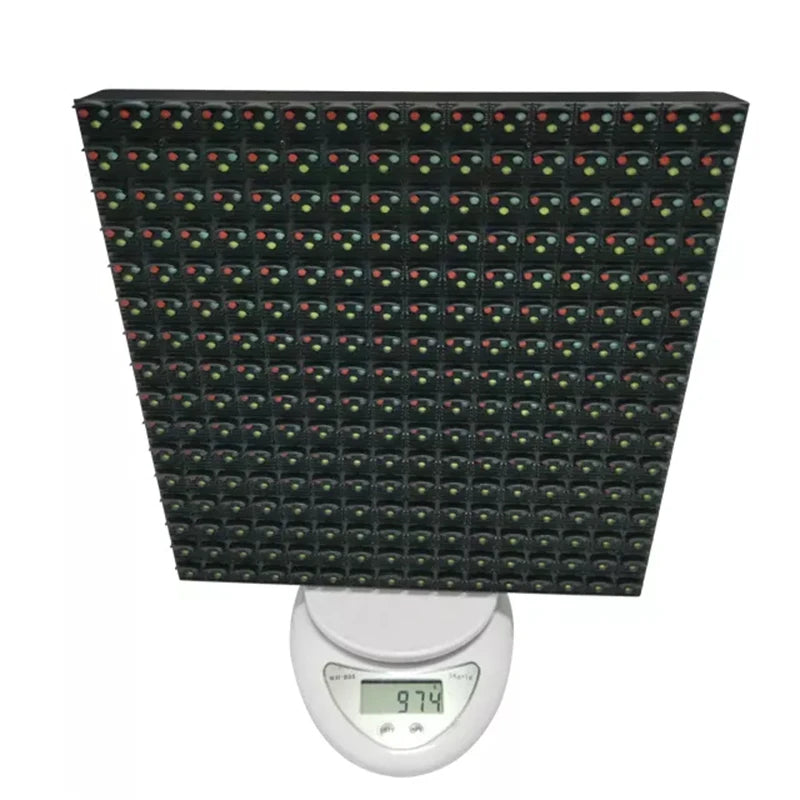

• Weight: 1kg
• Port Type: HUB75
• IP Rating: IP65
• Operating Life: 100,000 hours
• MTBF: 5,000 hours
• Compatible Control Cards: Nova, Linsn, Colorlight, Xixun
• Includes: Data cable, power cable
• Warranty: 2 Years
• Customizable: Yes

Applications

• Outdoor advertising and video wall display
• Commercial signage and LED billboard
• Sports venue and stadium display panel
• Retail and event outdoor screen
• Road and highway large format display
