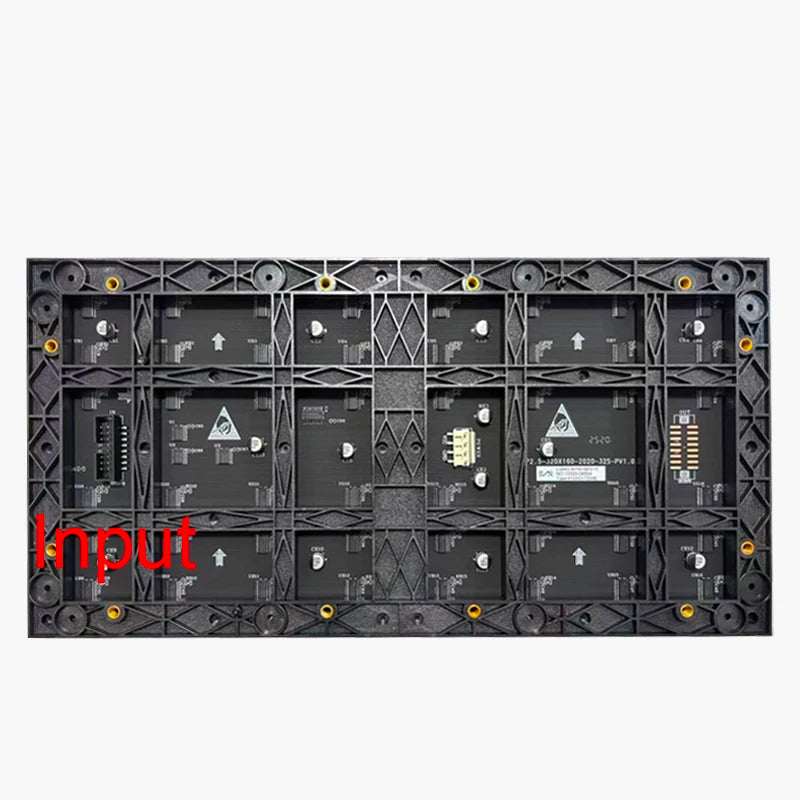

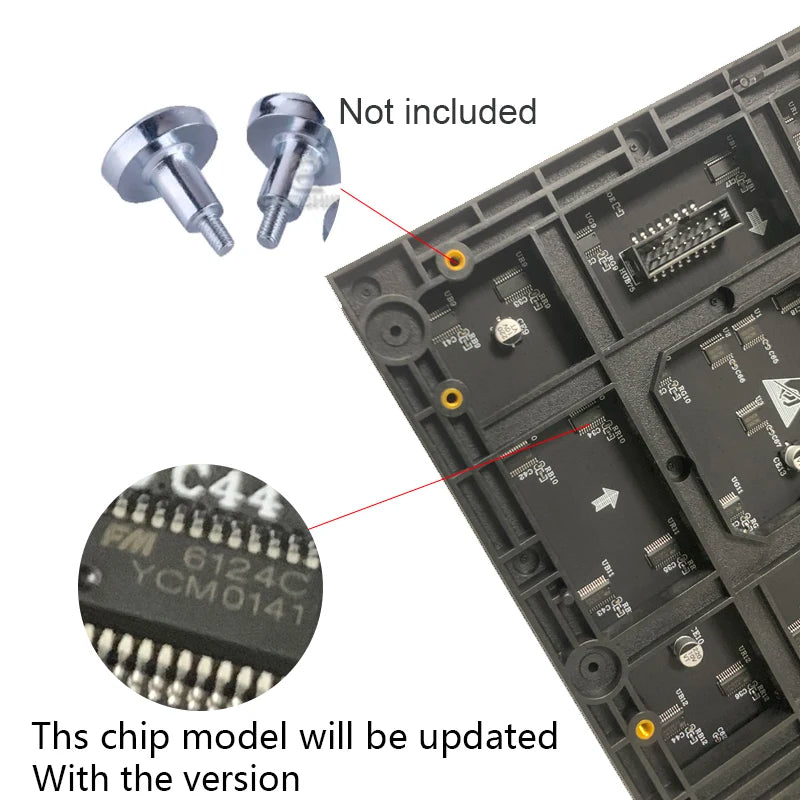

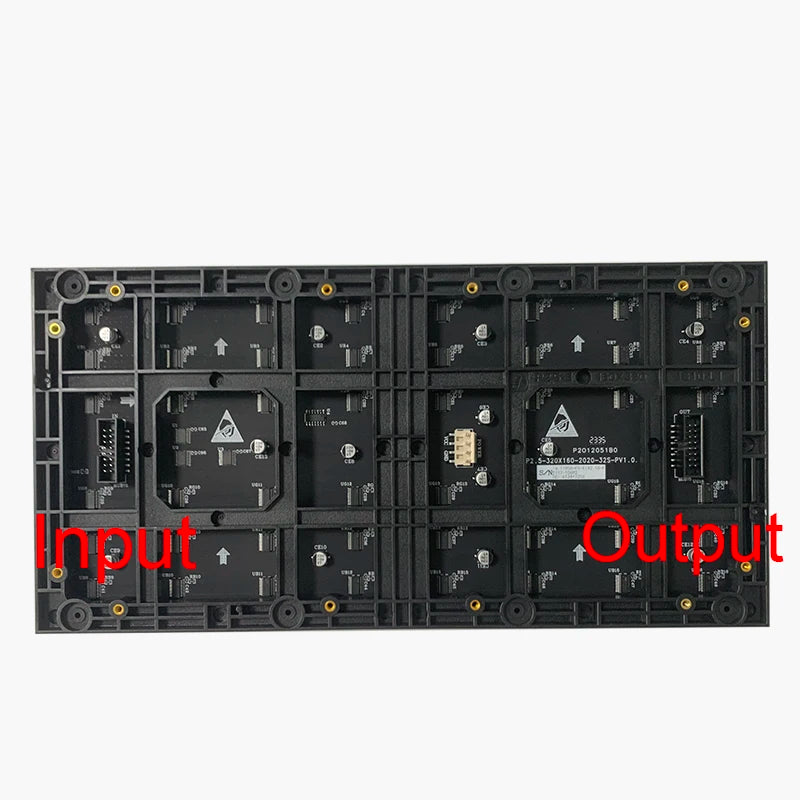

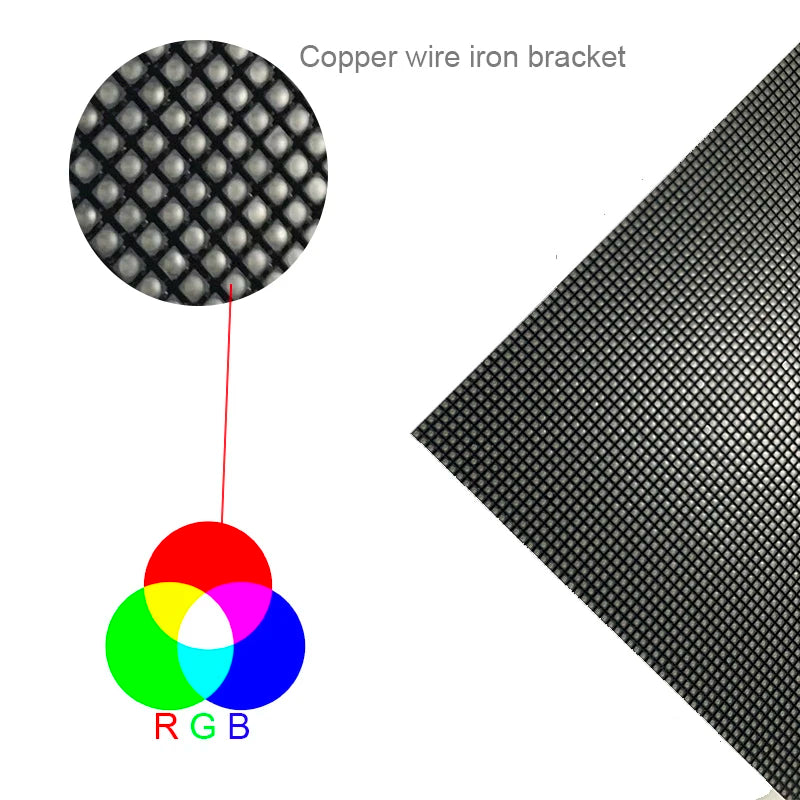

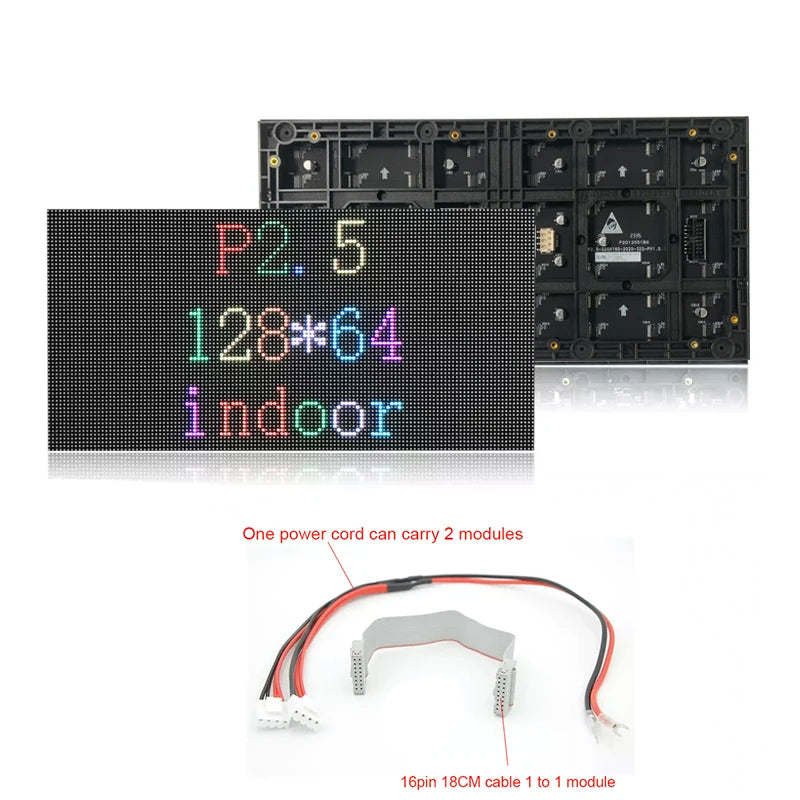

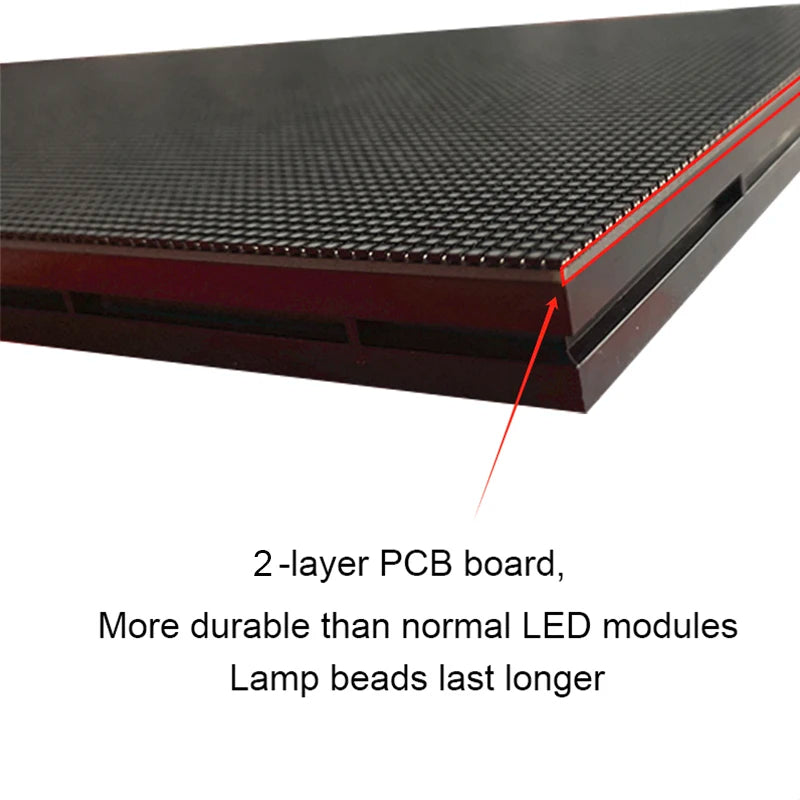

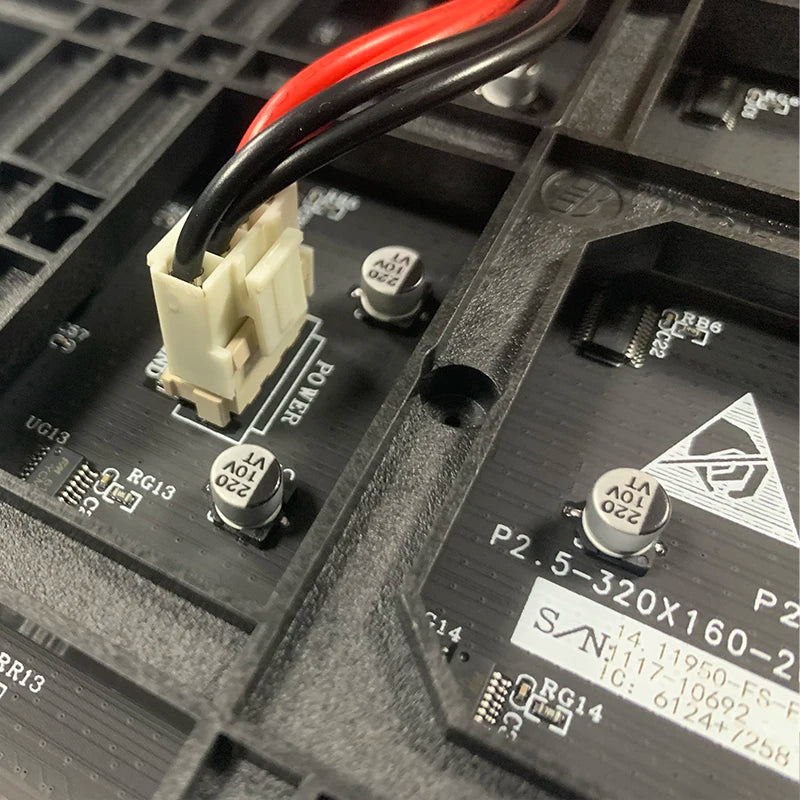

P2.5 128x64 Indoor Full-Color LED Module 320x160mm SMD2121 1/32 Scan ≥1920Hz HUB75 600nit

This P2.5mm pitch indoor full-color LED display module uses SMD2121 LEDs in a 320 x 160mm panel with 128 x 64 pixel resolution at 1/32 scan. HUB75 interface. ≥1920Hz refresh rate. 600 nits brightness. 16.7 million colors with 10-bit greyscale (1024 levels). Compatible with Linsn, Nova, Huidu, and Colorlight control systems. DVI, VGA, and composite video input formats. IP30 (front). Operating temperature -20°C to +65°C. Lifespan of 100,000 hours.

Key Technical Specifications:

• View angles: H120° / V100°
• Optimal viewing distance: 2.5m
• Max power: 350W/m², average 150W/m²
• Data transmission: CAT5 / fiber optic

Optional cabinet: 640 x 480mm, 256 x 192 pixel resolution.

Full Technical Specifications

• Product Type: P2.5 Indoor Full-Color LED Display Module
• LED Type: SMD2121
• Pixel Pitch: 2.5mm
• Module Size: 320 x 160mm
• Pixel Resolution: 128 x 64 (8,192 pixels)
• Pixel Density: 160,000 dots/m²
• Scan Mode: 1/32
• Interface: HUB75
• Brightness: ≥600 nits
• View Angle: H120° / V100°
• Colors: 16.7 million
• Greyscale: 10-bit (1024 levels)
• Refresh Rate: ≥1920Hz
• Frame Frequency: 60-85Hz
• Max Power: 350W/m²
• Average Power: 150W/m²
• Data Transmission: CAT5 / Fiber Optic
• Input Formats: DVI / VGA / Composite
• Control Systems: Linsn / Nova / Huidu / Colorlight
• IP Rating: IP30 (front)
• Operating Temperature: -20°C to +65°C
• Lifespan: 100,000 hours

Optional Cabinet

• Cabinet Size: 640 x 480mm
• Cabinet Resolution: 256 x 192

Applications

• Indoor LED video wall and display
• Indoor advertising and event display
• RGB programmable LED matrix panel
• Broadcast and retail LED screen
