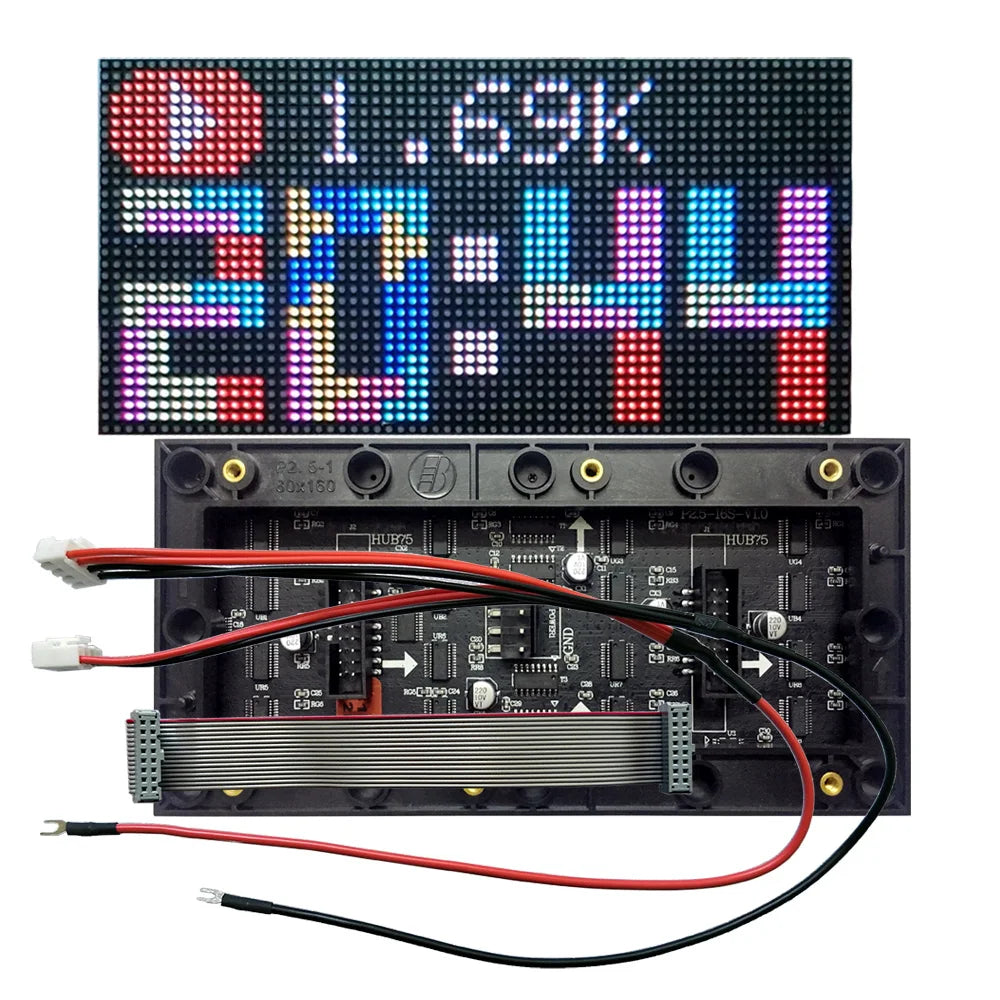

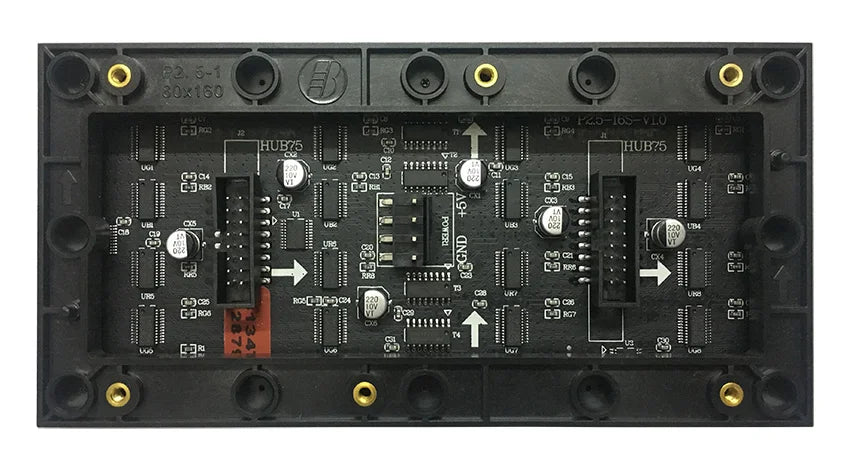

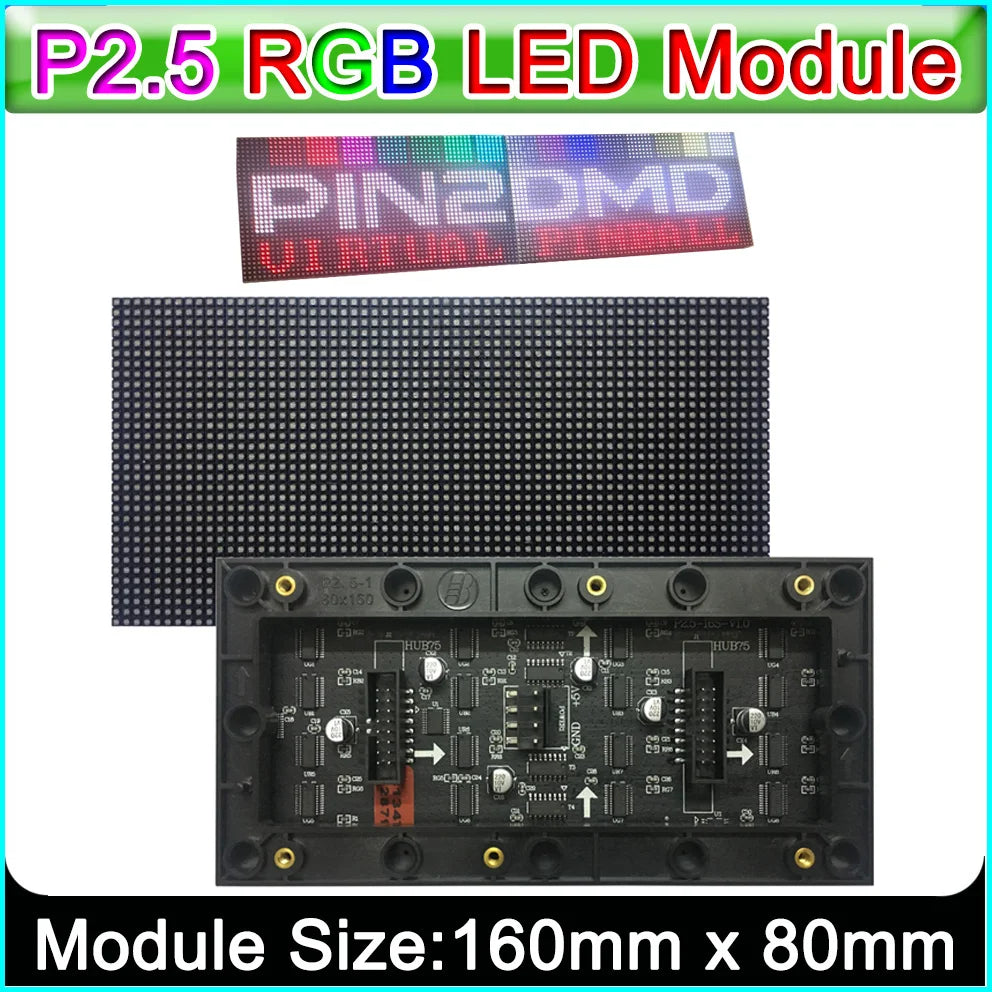

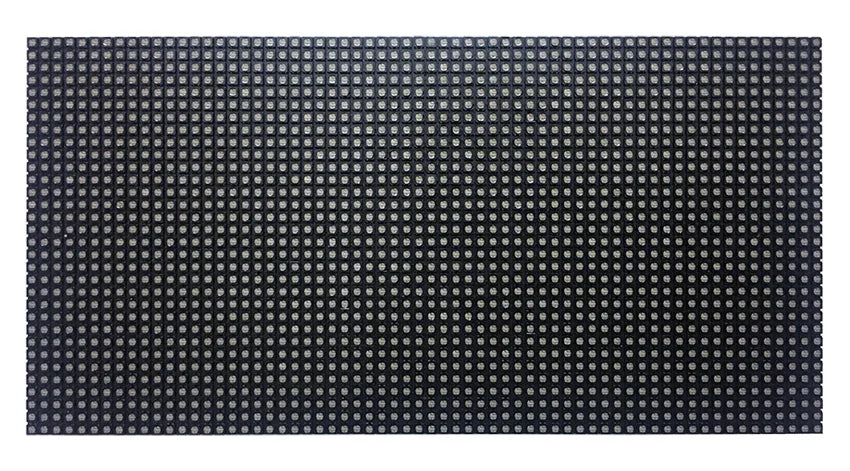

P2.5 64x32 Indoor Full-Color LED Display Module 160x80mm HUB75 800nit SMD2121 DC 5V

This P2.5mm pitch indoor full-color LED display module features 64 x 32 pixels (2048 total) in a 160 x 80mm panel using SMD2121 3-in-1 RGB LEDs. Compatible with HUB75 interface and PIN2DMD. Driver IC: ICN2037 or GS6238S. DC 5V constant-current drive. IP31 rated. Lifespan of 100,000 hours at 50% brightness.

Key Technical Specifications:

• Brightness: 800 nits (adjustable)
• Contrast: 4000:1
• Refresh rate: >600Hz
• View angles: Horizontal 120° / Vertical 70°
• Color capability: 4.4 trillion colors
• Color temperature: 3500–9500K (adjustable)
• Dimming: 100-grade auto/manual

Certified to CE standards.

Key Features

• P2.5mm pitch indoor LED display module
• 64 x 32 pixels, 160 x 80mm
• SMD2121 3-in-1 RGB LEDs
• 800 nits adjustable brightness

• 600Hz refresh rate

• HUB75 interface
• PIN2DMD compatible
• 1/16 scan mode
• IP31 rated
• DC 5V, 12-month warranty

Full Technical Specifications

• Product Type: P2.5 Indoor Full-Color LED Display Module
• Model: P2.5RGB-i
• Pixel Pitch: 2.5mm
• Module Size: 160 x 80mm
• Pixel Configuration: 64 x 32 (2048 pixels)
• Pixel Density: 160,000 dots/m²
• LED Type: SMD2121 3-in-1
• LED Wavelengths: Red 625-630nm / Green 525-530nm / Blue 470-475nm
• Brightness: 800 nits (adjustable)
• Contrast: 4,000:1
• Color Temperature: 3500-9500K
• Colors: 4.4 trillion
• Refresh Rate: >600Hz
• View Angle: H120° / V70°
• Driver IC: ICN2037 or GS6238S
• Interface: HUB75
• Scan Mode: 1/16
• Operating Voltage: DC 5V
• Max Power: 780W/m²
• Average Power: 312W/m²
• IP Rating: IP31
• Operating Temperature: -10°C to +40°C
• Lifespan: 100,000 hours (50% brightness)
• Warranty: 12 Months

Applications

• Indoor LED video wall panel
• PIN2DMD pinball display replacement
• Indoor RGB LED matrix signage
• Stage and event LED display
