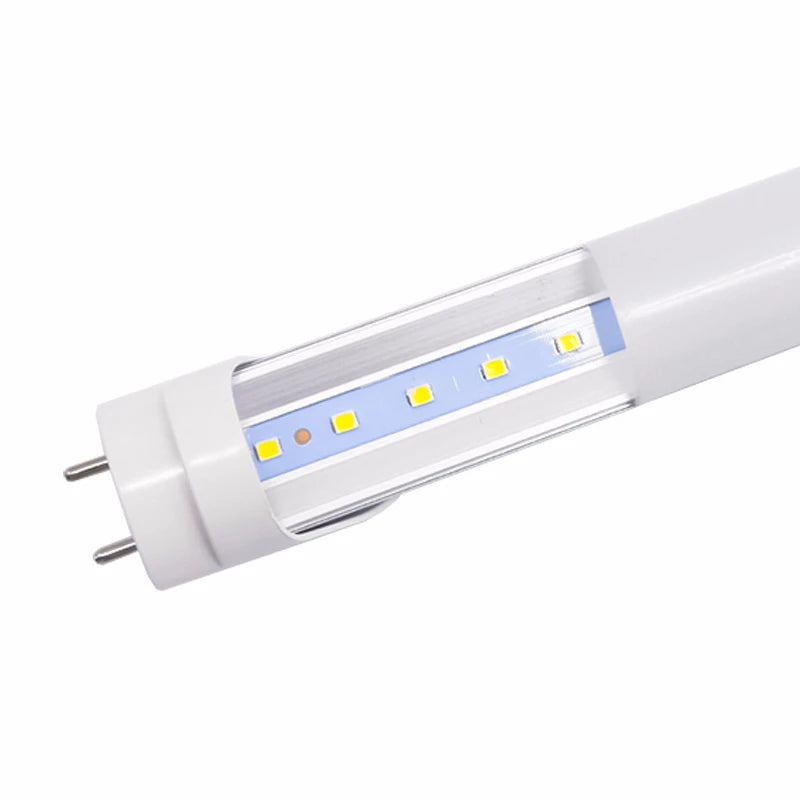

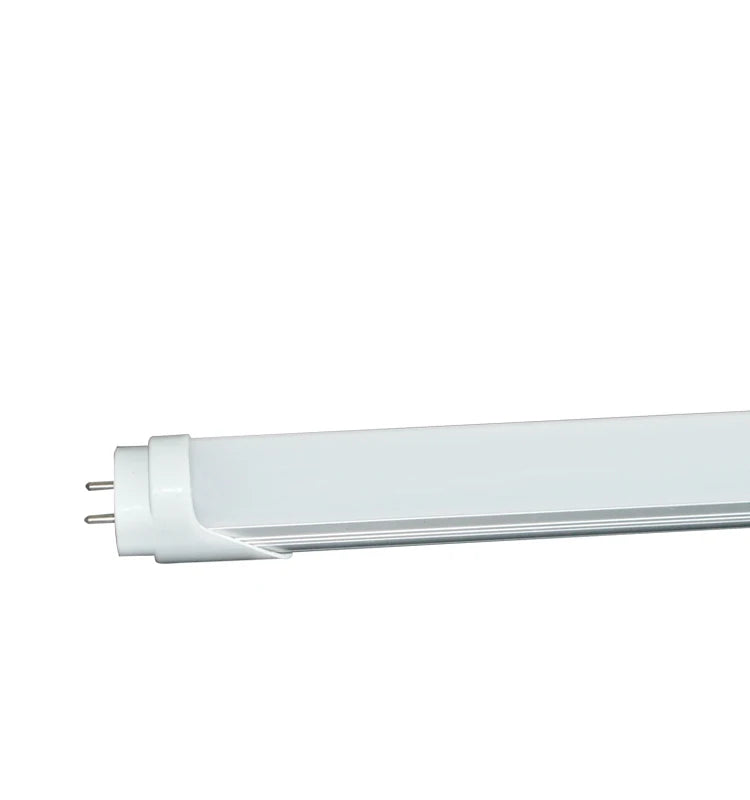

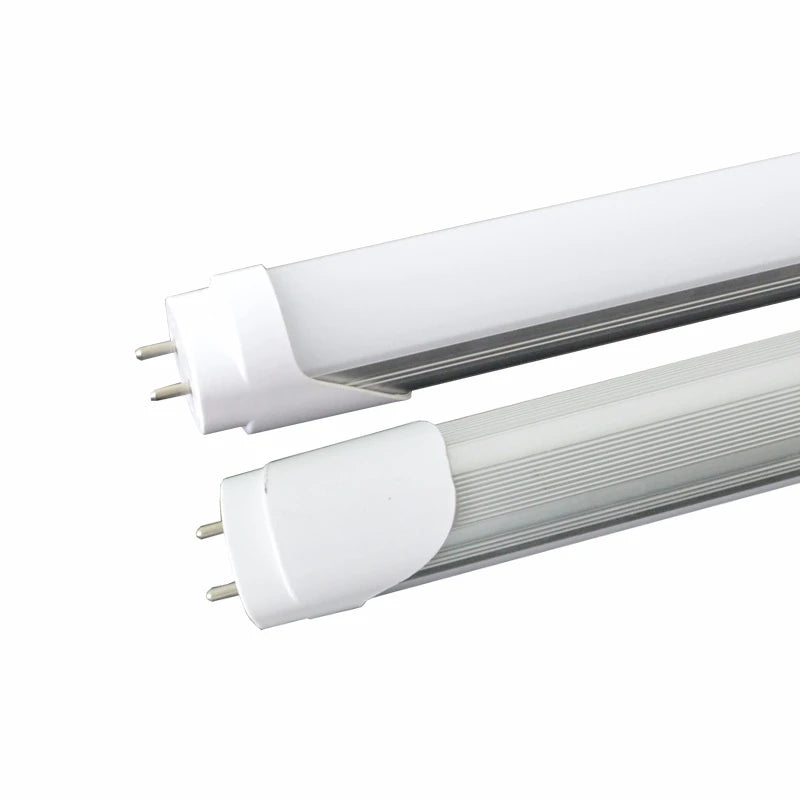

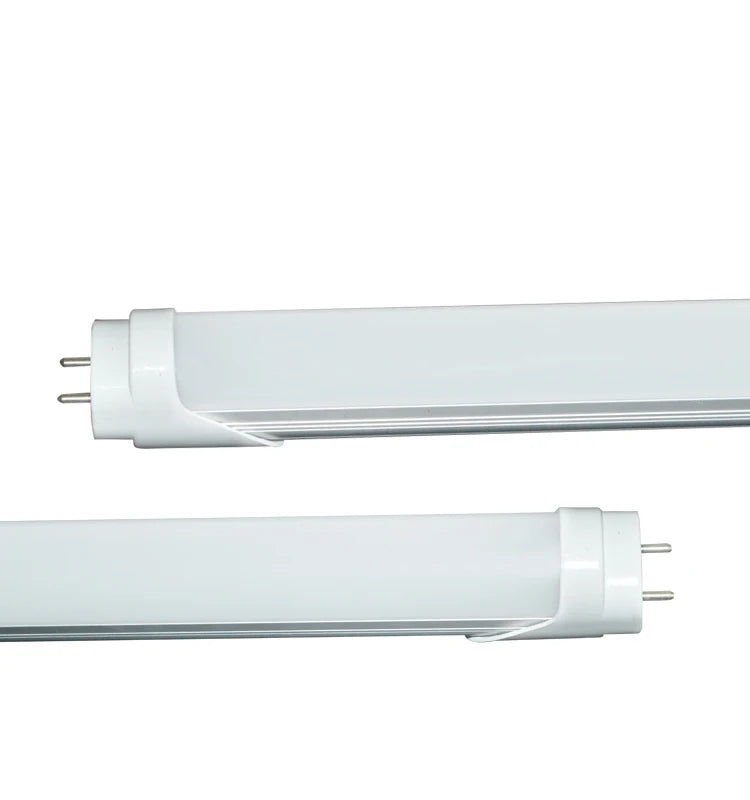

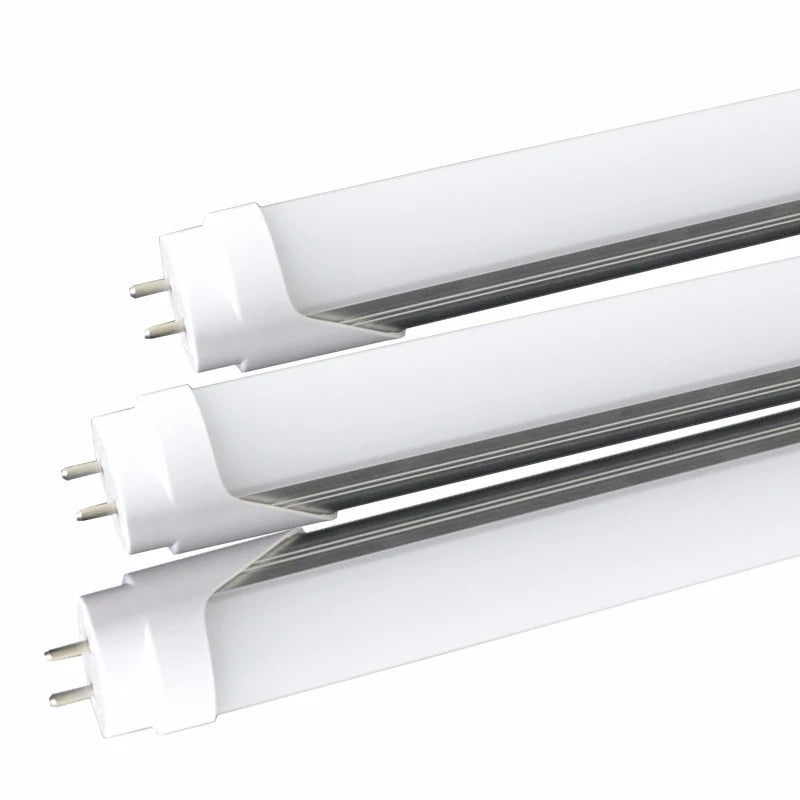

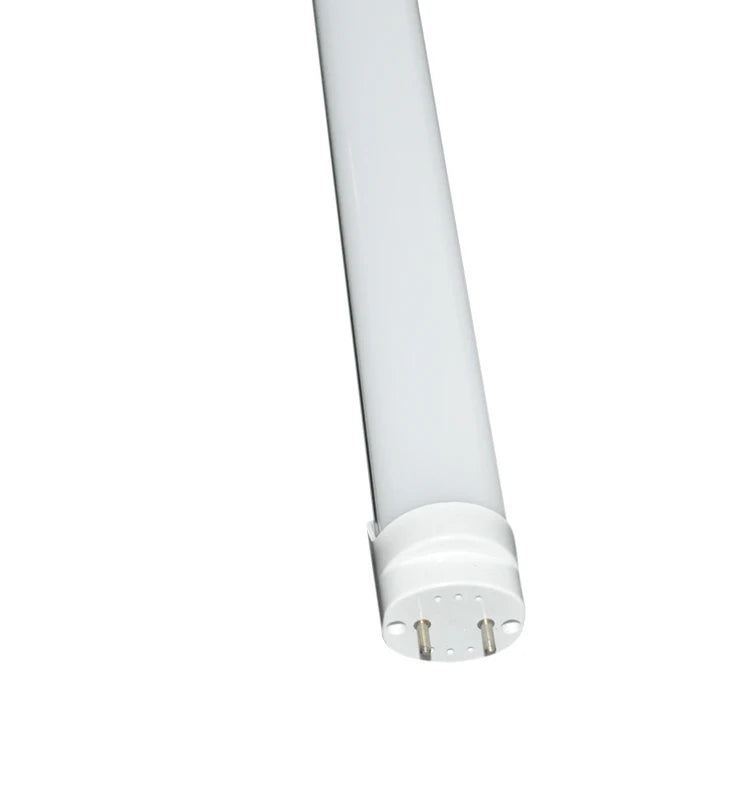

Short T8 LED Tube 4W 6W G13 344mm 450mm Ballast Bypass SMD2835 Warm Cool White 100-240V

This short T8 LED tube is available in two compact lengths — 344mm (4W) and 450mm (6W) — with a G13 bi-pin base for short-bay T8 fixture sockets in home, office, retail, and commercial lighting applications.

Powered by Epistar SMD2835 chips with a 120-degree beam angle across warm white, neutral white, and cool white color temperature options. Wide voltage compatibility across AC 100–240V. Rated lifespan of 50,000 hours.

Important installation requirement: These tubes use a Type B ballast bypass design. The existing fluorescent ballast or starter must be removed from the fixture before installation. Do not connect to an active fluorescent ballast.

Certified to CE, EMC, and RoHS standards.

Key Features

• Short T8 tube in 344mm (4W) and 450mm (6W) lengths
• G13 bi-pin base
• Epistar SMD2835 chips
• Ballast bypass (Type B) — ballast must be removed before installation
• 120-degree beam angle for even coverage
• Warm white, neutral white, and cool white color temperatures
• AC 100-240V compatible
• LED lifespan: 50,000 hours
• CE, EMC, and RoHS certified

Specifications

• Product Type: Short T8 LED Tube
• Base Type: G13 (Bi-Pin)
• LED Chip: Epistar SMD2835
• Wiring Type: Type B (Ballast Bypass)
• Power Options: 4W (344mm) / 6W (450mm)
• Luminous Flux: 500-999 lm
• Input Voltage: AC 100-240V
• Beam Angle: 120 degrees
• Color Temperature: 2700K-6500K range (Warm White / Neutral White / Cool White)
• Coverage Area: 3-8 m²
• LED Lifespan: 50,000 hours
• Power Tolerance: 3%
• Smart Device: No
• Certification: CE, EMC, RoHS
