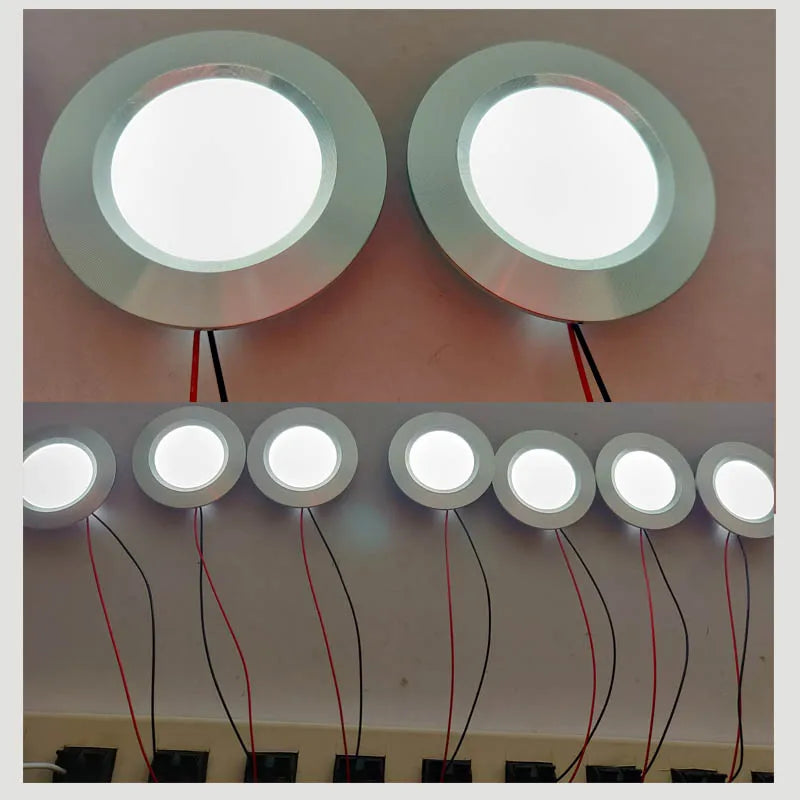

Ultra-Thin Mini DC12V 24V LED Recessed Spotlight 3W 5W PWM Dimmable D68mm IP52 SMD2835

This DC 12V/24V ultra-thin mini recessed spotlight measures D68mm in diameter with a 14mm depth and a D55mm ceiling cutout for compact recessed installation in ceilings, display cabinets, kitchen cabinetry, wine racks, bookshelves, corridors, and vehicle interiors. Powered by SMD2835 LEDs, the fixture delivers 280 lumens with a 120-degree beam angle and a CRI of over Ra80.

PWM dimmable for smooth brightness adjustment via a compatible DC PWM dimmer controller. Three single-color temperature options — warm white, natural white, and cool white — are available with silver, white, or black body finishes. An RGBW variant is also available, requiring a separate RGBW dimmer; the RGBW version uses a 5-wire cable approximately 30cm in length.

Standard single-color variants include a 170mm Teflon cable. IP52 rated. Operating temperature -30°C to +50°C.

Important: This product requires a DC 12V or DC 24V constant-voltage power supply, not included. RGBW variants additionally require a separate RGBW dimmer, not included.

Certified to CE and RoHS standards.

Key Features

• Ultra-thin 14mm depth, D68mm body, D55mm cutout
• SMD2835 LED chips — 280lm output
• PWM dimmable via compatible DC dimmer
• Available in single-color and RGBW variants
• Three color temperatures: Warm White, Natural White, Cool White

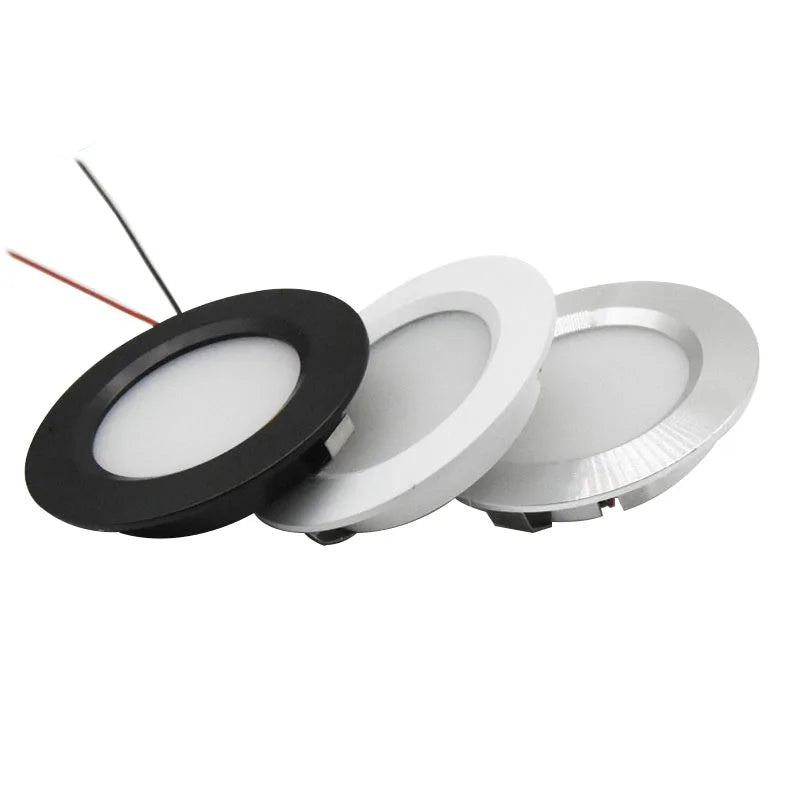

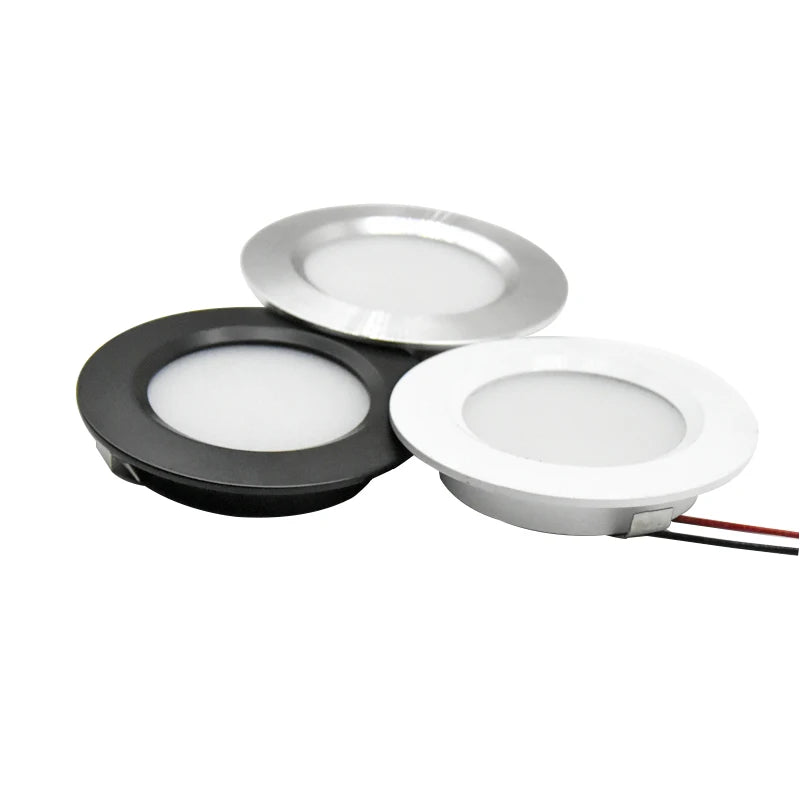

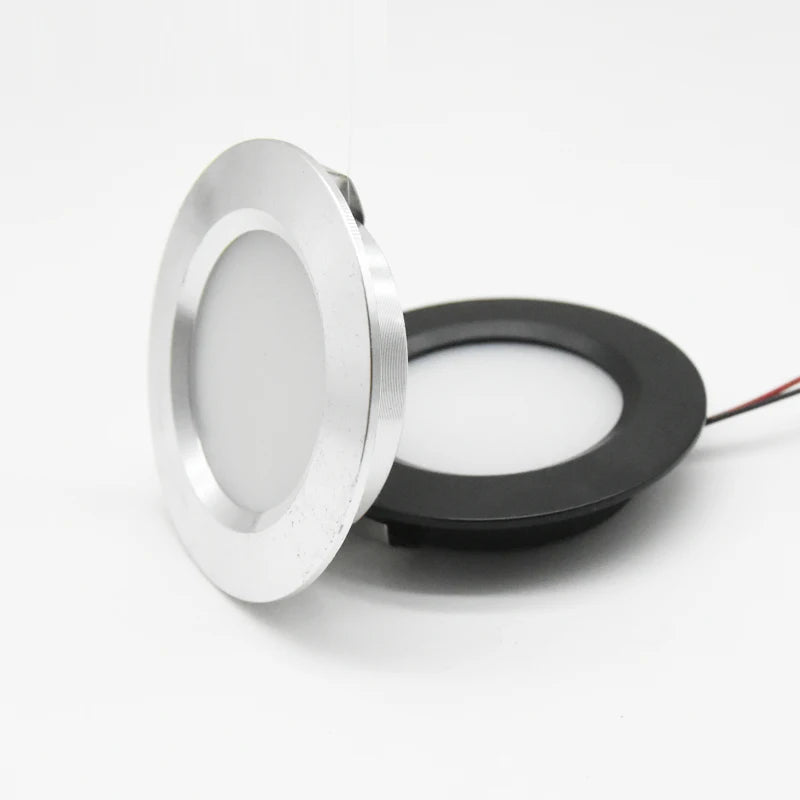

• Silver, white, and black body finishes
• 170mm Teflon cable (single-color) / 5-wire ~30cm cable (RGBW)
• DC 12V and DC 24V compatible
• IP52 rated
• CRI >Ra80
• 120-degree beam angle
• Operating temperature: -30°C to +50°C
• LED lifespan: 50,000 hours
• CE and RoHS certified
• 5-year warranty
• DC power supply not included; RGBW dimmer not included

Specifications

• Product Type: Ultra-Thin Mini Recessed LED Spotlight
• LED Chip: SMD2835

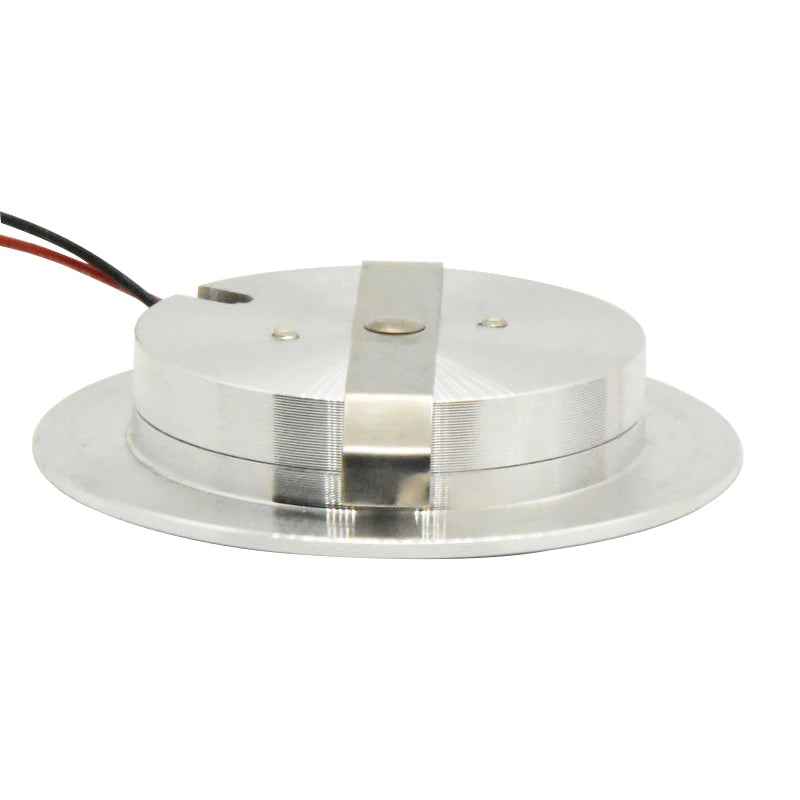

• Material: Aluminum
• Finish: Silver / White / Black
• Power Options: 3W / 5W
• Input Voltage: DC 12V / DC 24V
• Lumen Output: 280lm
• CRI: >Ra80
• Beam Angle: 120 degrees
• IP Rating: IP52
• PWM Dimmable: Yes
• Color Options: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (5500-6500K) / RGBW
• Dimensions: D68 x H14mm
• Cutout Size: D55mm
• Cable: 170mm Teflon (single-color) / ~30cm 5-wire (RGBW)
• Power Tolerance: 5%
• Operating Temperature: -30°C to +50°C
• LED Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 5 Years

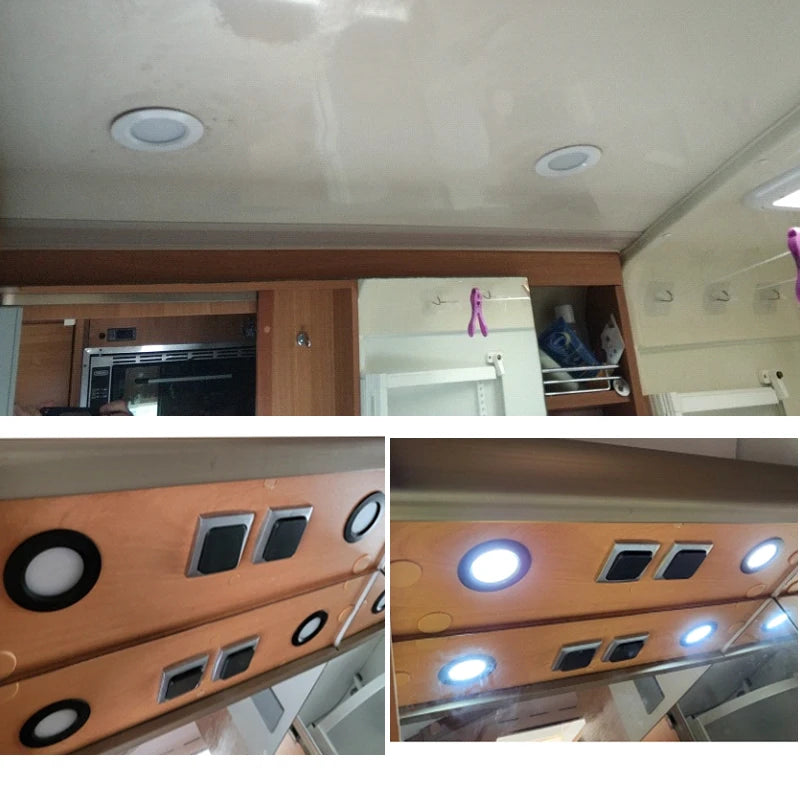

Applications

• Display cabinet and showcase lighting
• Kitchen hood and under-cabinet lighting
• Wine cabinet and bookcase accent lighting
• Bedroom and living room recessed accent lighting
• Corridor and staircase accent lighting
• Vehicle and automotive interior lighting
