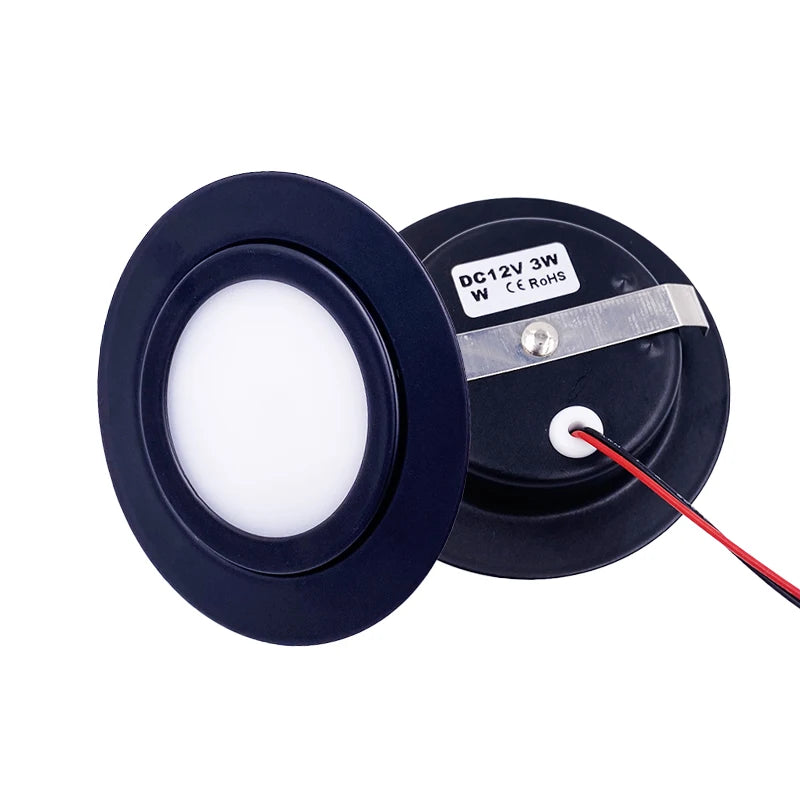

Ultra-Thin Mini LED Recessed Spotlight 3W 5W DC12V 24V 304 Stainless Steel PWM Dimmable IP65

This DC 12V/24V ultra-thin mini recessed spotlight is constructed from 304 stainless steel with a 14mm deep body for flush or near-flush installation in kitchen hoods, display cabinets, furniture, wine racks, bookshelves, staircases, corridors, and automotive interiors. The D72mm diameter body fits a 55mm ceiling cutout, making it compatible with compact recessed positions where standard-sized fixtures cannot be installed.

Powered by an SMD2835 LED chip delivering 280 lumens at 3W and 480 lumens at 5W, the spotlight produces a 120-degree beam angle with a CRI of over Ra80. PWM dimming support allows smooth brightness adjustment via a compatible PWM dimmer controller. Available in single color outputs — natural white (4000K), warm white (3000K), cool white (6000K), red, blue, green, and yellow — and in RGBW (3000K) for color-changing applications.

Three body finish options — chrome, black, and nickel — allow matching to different cabinet and fixture aesthetics. Monochrome variants include a 170mm Teflon cable; RGBW variants include a 270mm Teflon cable. IP65 waterproof for kitchen and moisture-prone environments. Operating temperature -30°C to +50°C.

Important: This product requires a DC 12V or DC 24V constant-voltage power supply. A separate LED power supply is not included and must be sourced separately. Do not connect to AC mains voltage.

Certified to CE and RoHS standards.

Key Features

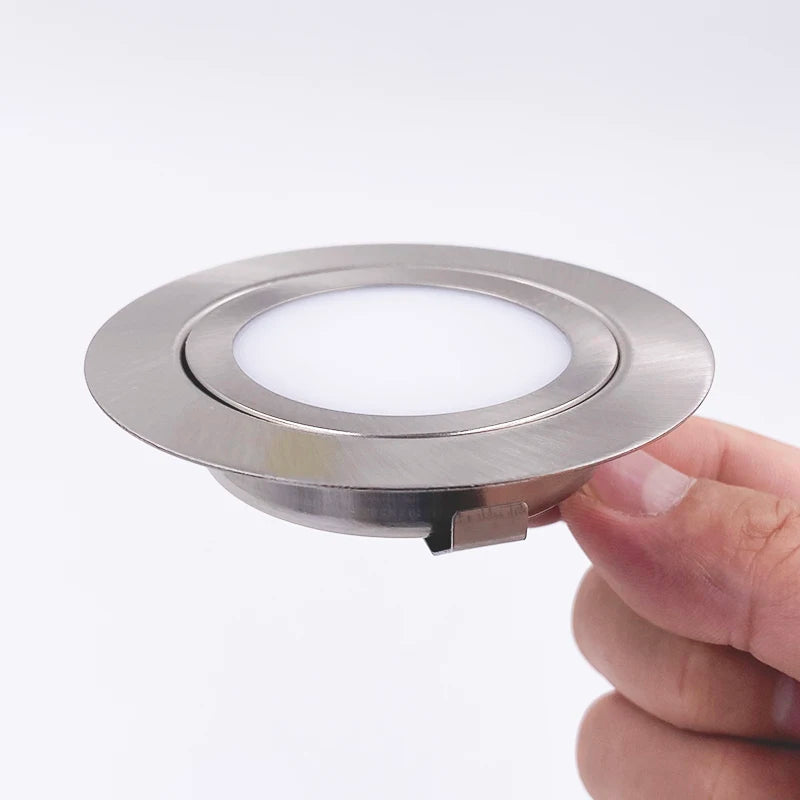

• 304 stainless steel body — D72mm diameter, 14mm deep
• 55mm cutout for compact recessed installation
• SMD2835 LED chip — 280lm (3W) / 480lm (5W)
• PWM dimmable brightness control
• IP65 waterproof for kitchen and damp environments
• CRI >Ra80 for natural color rendering
• 120-degree beam angle
• Available in natural white, warm white, cool white, red, blue, green, yellow, and RGBW (3000K)

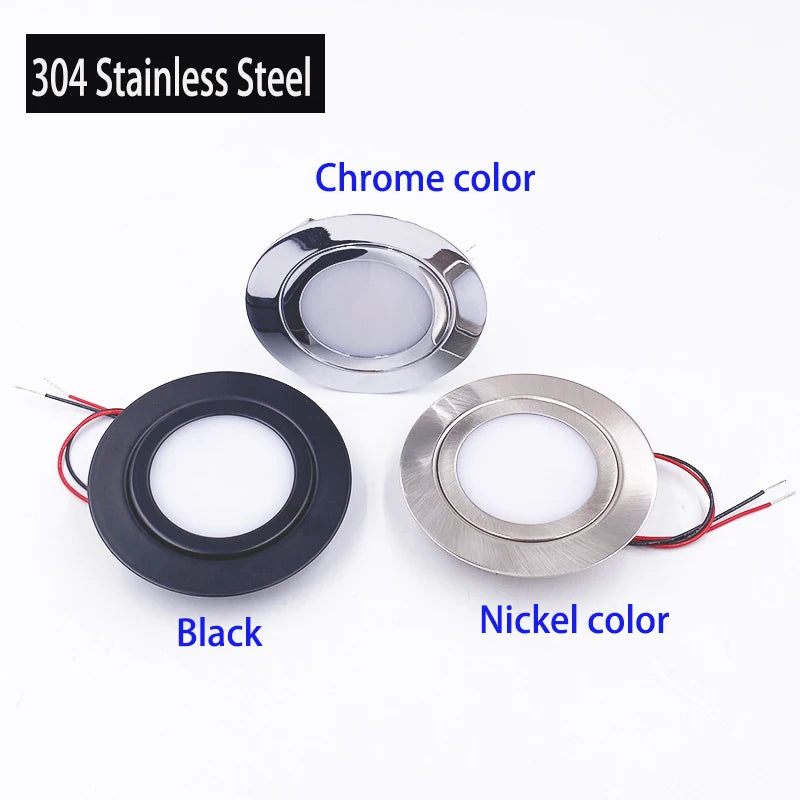

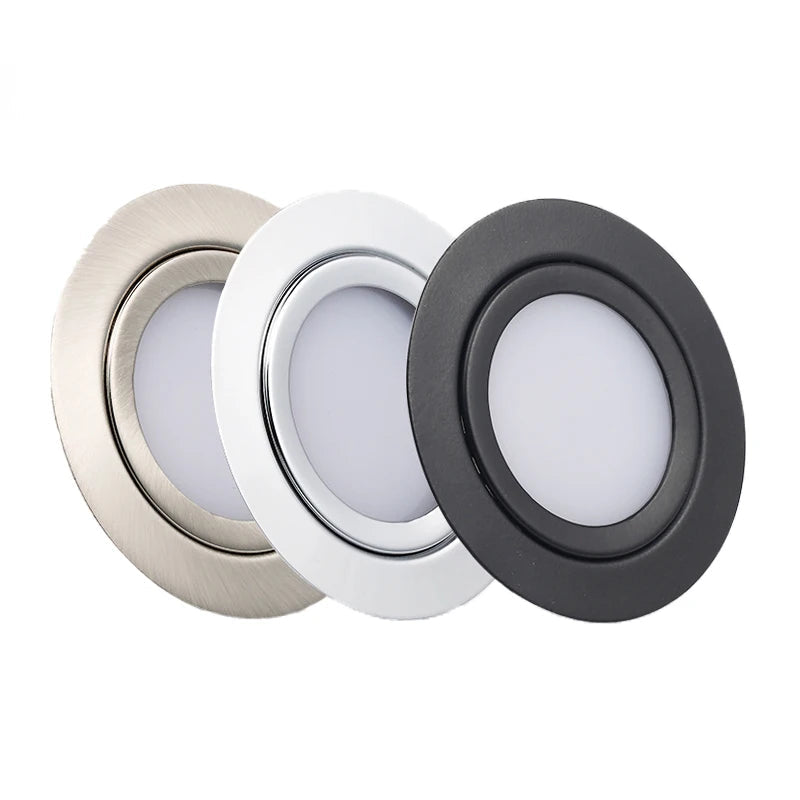

• Chrome, black, and nickel finish options
• Teflon cable — 170mm (monochrome) / 270mm (RGBW)
• DC 12V and DC 24V compatible
• Operating temperature: -30°C to +50°C
• LED lifespan: 50,000 hours
• CE and RoHS certified
• 5-year warranty
• DC constant-voltage power supply required — not included

Specifications

• Product Type: Ultra-Thin Mini Recessed LED Spotlight
• LED Chip: SMD2835
• Material: 304 Stainless Steel
• Finish Options: Chrome / Black / Nickel
• Power Options: 3W / 5W
• Input Voltage: DC 12V / DC 24V
• Lumen Output: 280lm (3W) / 480lm (5W)
• CRI: >Ra80
• Beam Angle: 120 degrees
• IP Rating: IP65
• PWM Dimmable: Yes
• Color Options: Natural White (4000K) / Warm White (3000K) / Cool White (6000K) / Red / Blue / Green / Yellow / RGBW (3000K)
• Dimensions: D72 x H14mm
• Cutout Size: D55mm
• Cable: 170mm Teflon (monochrome) / 270mm Teflon (RGBW)
• Operating Temperature: -30°C to +50°C
• LED Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 5 Years
• Power Supply: Not included

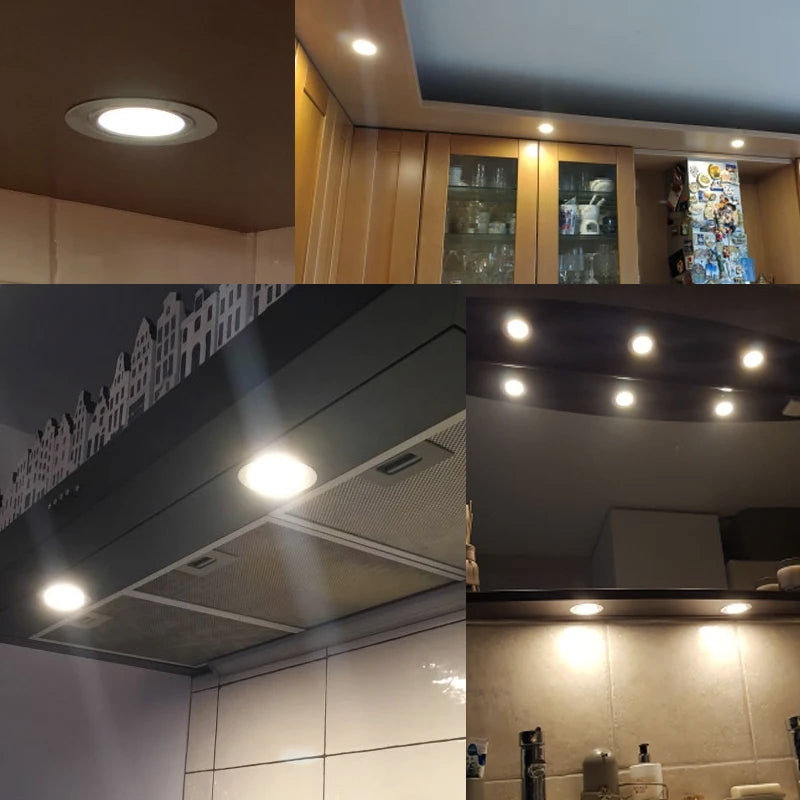

Applications

• Kitchen hood and under-cabinet lighting
• Display cabinet and showcase accent lighting
• Wine cabinet and bookcase lighting
• Furniture and built-in cabinet lighting
• Staircase edge and corridor accent lighting
• Automotive and vehicle interior lighting
• Bar and KTV accent lighting
