Ultra-Thin Mini LED Recessed Spotlight 3W 5W DC12V 24V OSRAM 304 Stainless Steel IP65

This DC 12V/24V ultra-thin mini recessed spotlight is built from 304 stainless steel with a polished finish and a 14mm deep body for flush installation in kitchen hoods, display cabinets, furniture cavities, hotel interiors, and other compact recessed lighting positions. The D72mm body fits a 55mm ceiling cutout.

Powered by 15 OSRAM SMD LEDs delivering 280 lumens at 3W and 480 lumens at 5W across a 120-degree beam angle, the fixture provides focused, reliable light output in a low-voltage format. IP65 rated for kitchen and moisture-prone environments.

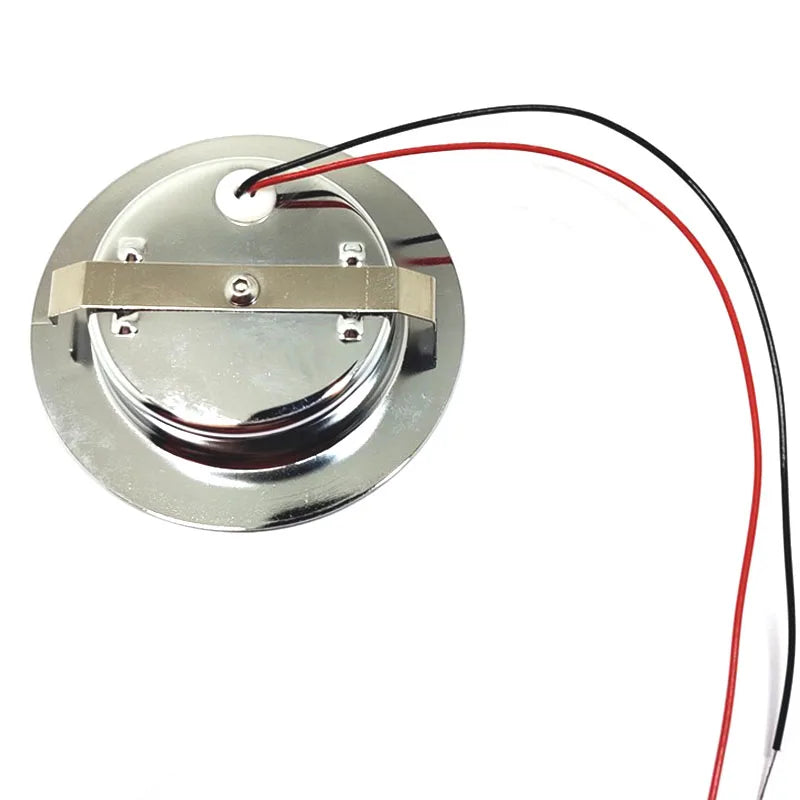

Operating temperature range of -30°C to +50°C with a 170mm cable for connection to DC 12V or DC 24V constant-voltage systems.

Important: This product requires a DC 12V or DC 24V constant-voltage power supply, not included. Do not connect to AC mains voltage.

Certified to CE and RoHS standards.

Key Features

• OSRAM LED chips — 15 SMDs per fixture
• 280lm at 3W / 480lm at 5W
• 304 stainless steel polished body
• 14mm depth — ultra-thin for compact spaces
• 55mm cutout size
• 120-degree beam angle
• IP65 waterproof for kitchen and damp environments
• DC 12V and DC 24V compatible
• Dimmable
• 170mm cable
• Operating temperature: -30°C to +50°C
• LED lifespan: 50,000 hours
• CE and RoHS certified
• 5-year warranty
• DC power supply not included

Specifications

• Product Type: Ultra-Thin Mini Recessed LED Spotlight
• LED Chip: OSRAM SMD (15 LEDs)
• Material: 304 Stainless Steel
• Finish: Polished Steel
• Power Options: 3W / 5W
• Input Voltage: DC 12V / DC 24V
• Lumen Output: 280lm (3W) / 480lm (5W)
• Beam Angle: 120 degrees
• IP Rating: IP65
• Dimmable: Yes

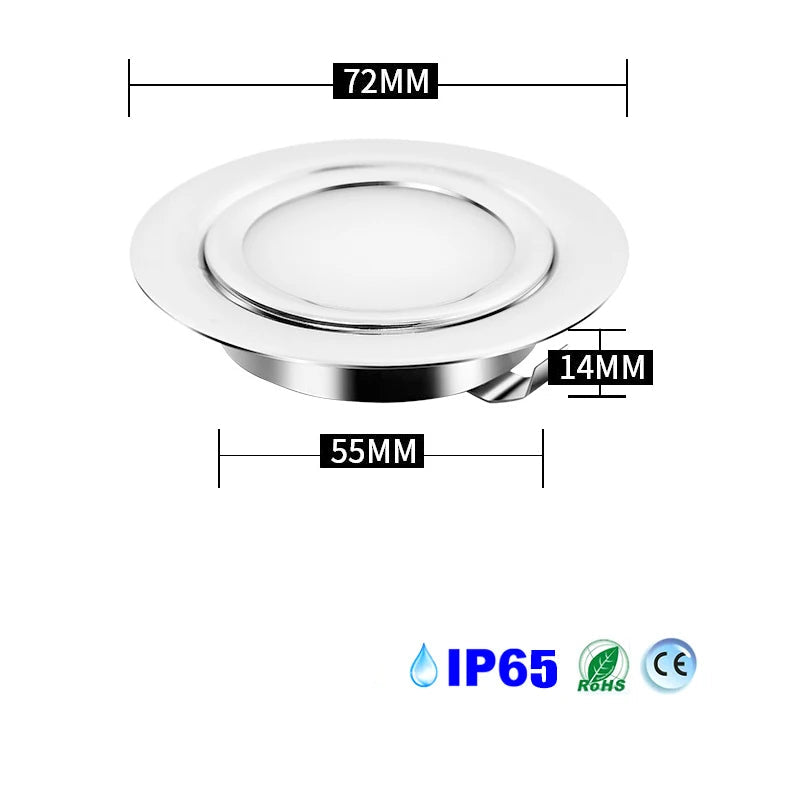

• Dimensions: D72 x H14mm
• Cutout Size: D55mm
• Cable Length: 170mm
• Power Tolerance: 5%
• Operating Temperature: -30°C to +50°C
• Certification: CE, RoHS
• Warranty: 5 Years
• Power Supply: Not included

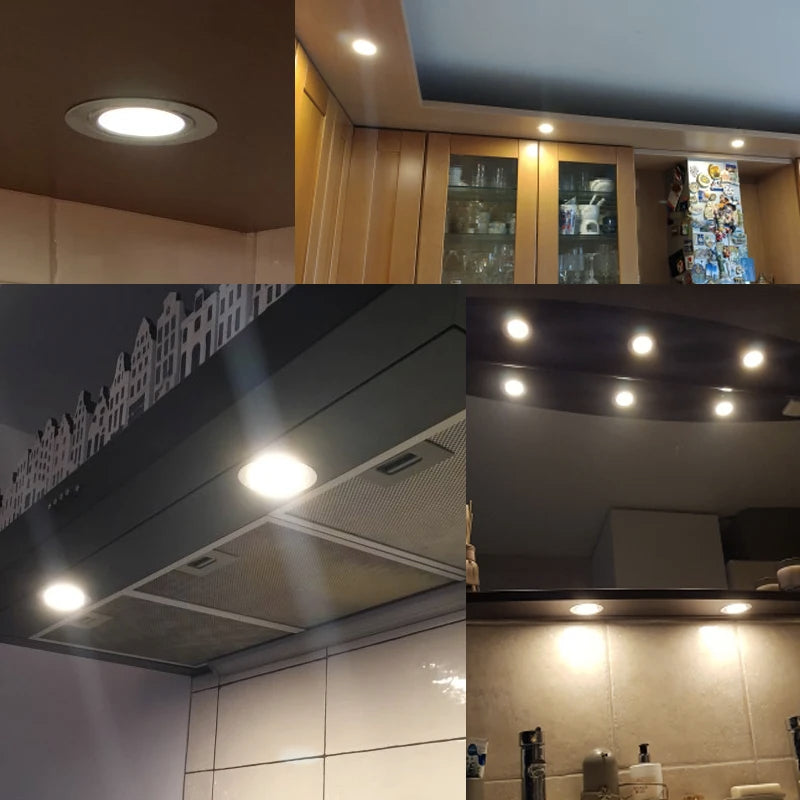

Applications

• Kitchen hood and under-cabinet lighting
• Display cabinet and showcase accent lighting
• Hotel room and hospitality accent lighting
• Furniture and built-in cabinet lighting
• Living room and bedroom recessed accent lighting
• DIY low-voltage lighting installations
