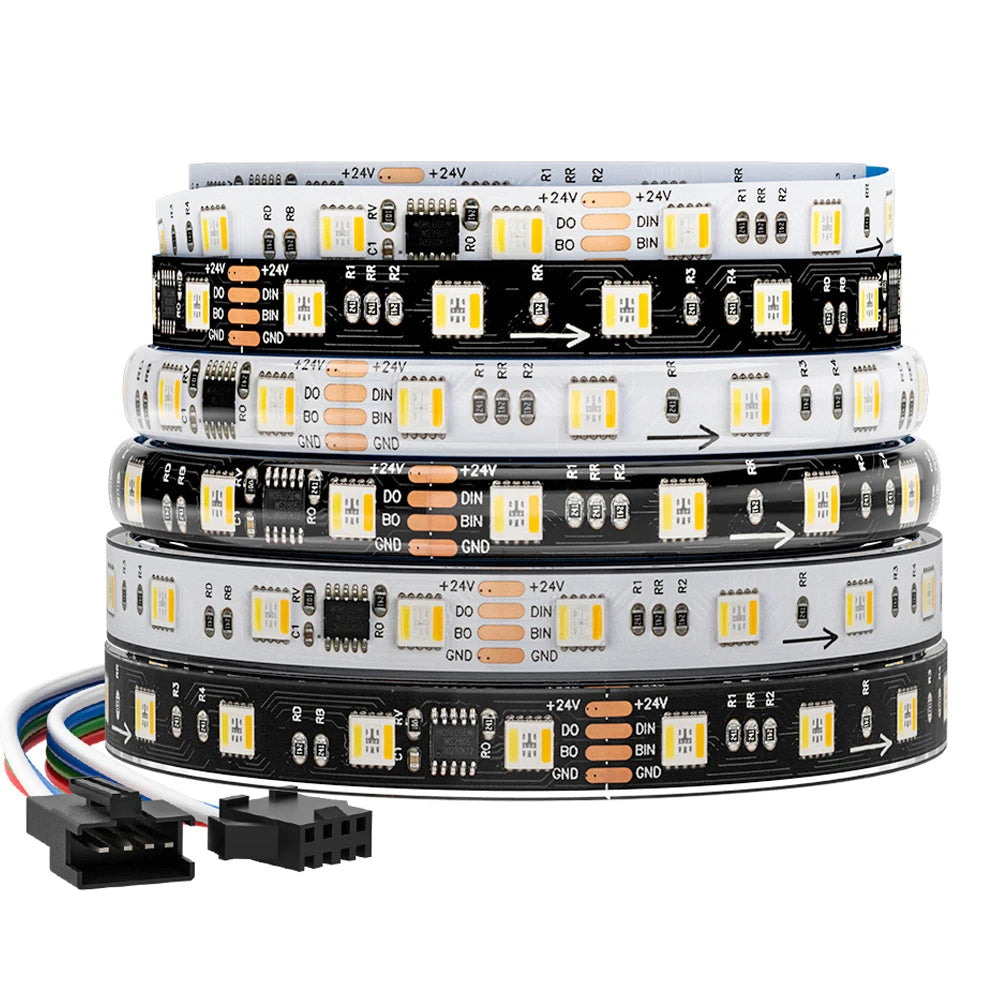

WS2805 RGBCCT Addressable Pixel LED Strip 5-in-1 SMD5050 60/84 LED/m DC12V 24V 1m 3m 5m

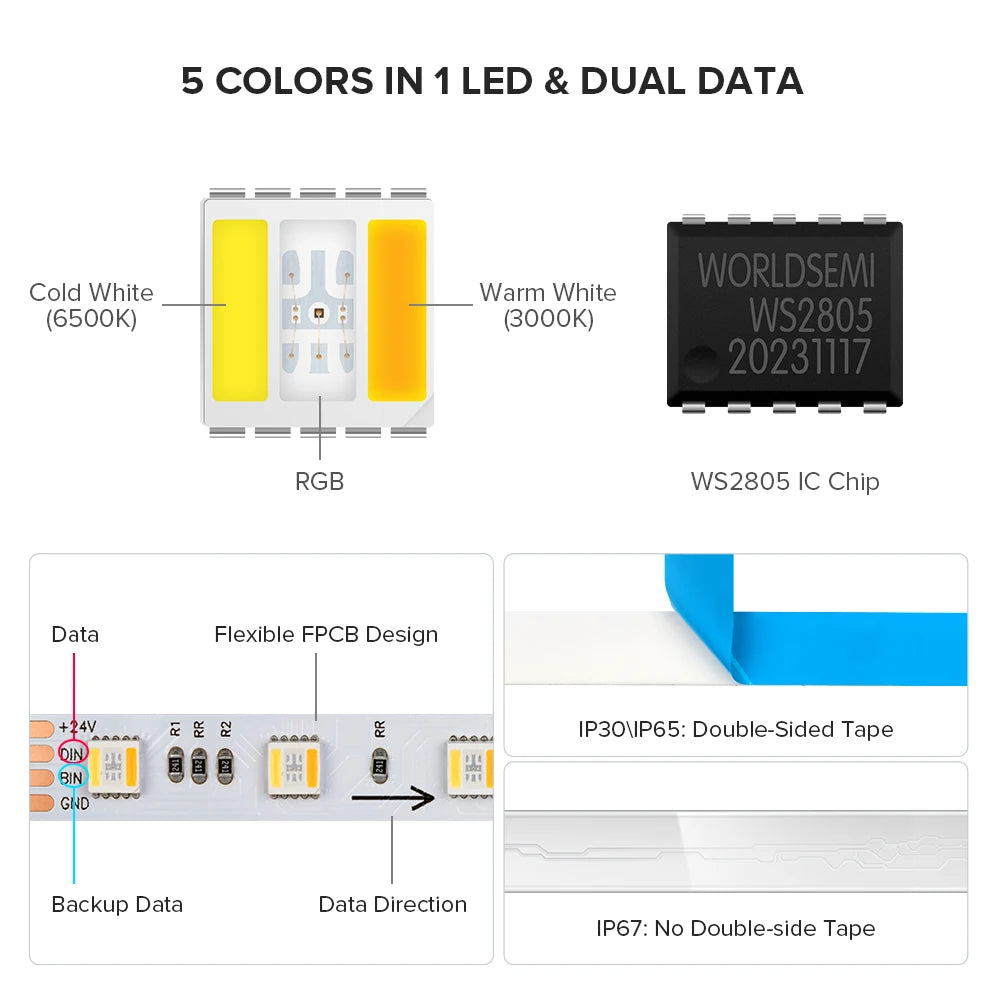

This WS2805 addressable pixel LED strip features 5-in-1 SMD5050 RGBCCT chips — red, green, blue, warm white (3000K), and cool white (6500K) in a single LED — for full-color and tunable white addressable lighting. The WS2805 IC supports dual-signal redundancy, reducing the risk of cascade failures in long runs.

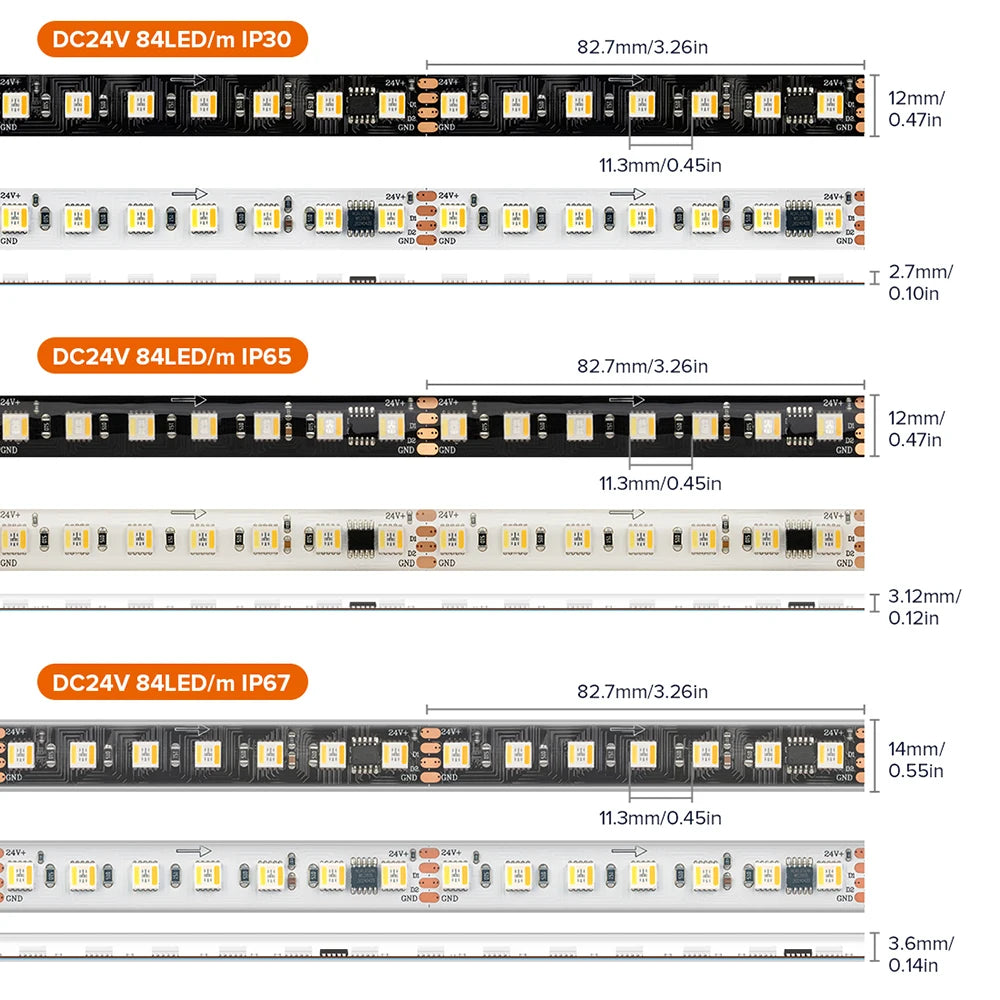

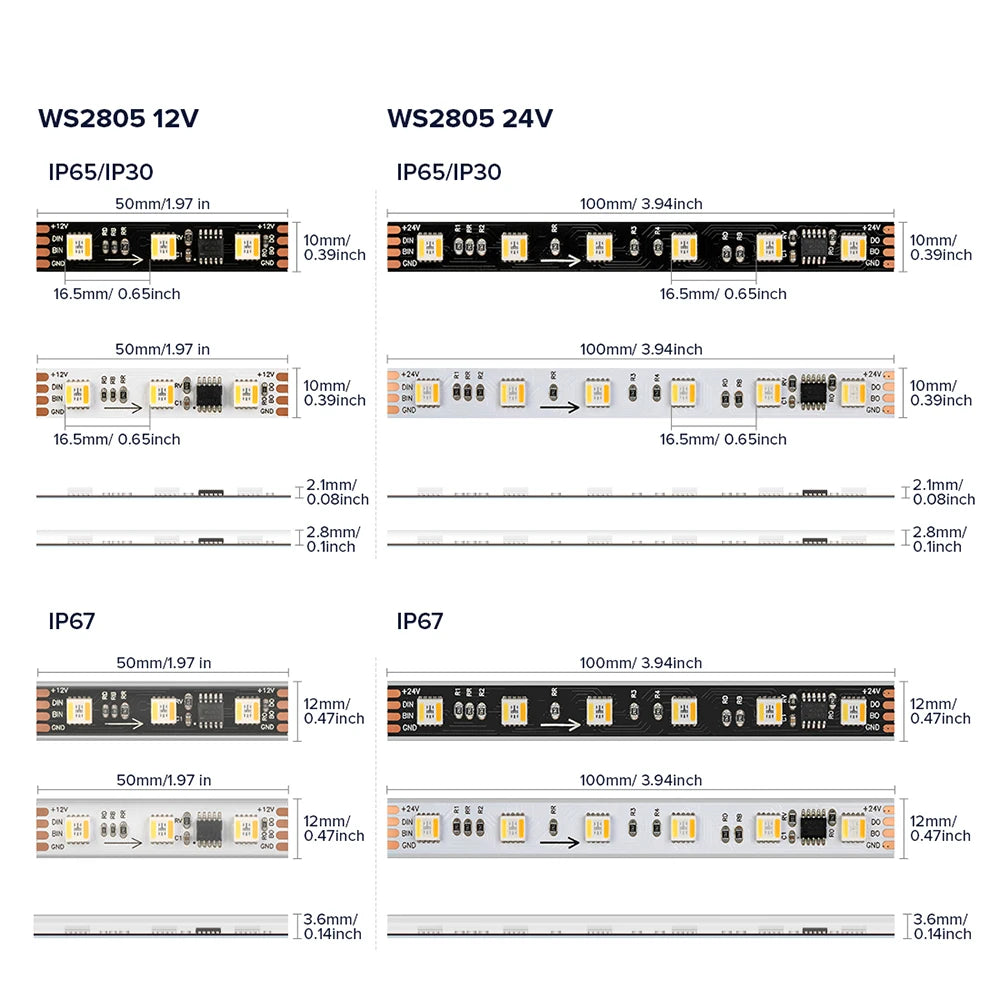

Available in three configurations: 60 LED/m at DC 12V, 60 LED/m at DC 24V, and 84 LED/m at DC 24V. Each configuration has different addressability and cut intervals.

Critical requirements:

• A compatible pixels LED controller and DC 12V or DC 24V power supply are required — neither is included.
• This strip is not compatible with WLED or ESP32 controllers. Use a dedicated WS2805-compatible pixels controller.
• Solder joints appear every 0.5m — this is normal for this product type and is not a defect.
• For runs longer than 5m, inject power from both ends to reduce voltage drop.
• Do not bend the strip sharply at cut points.

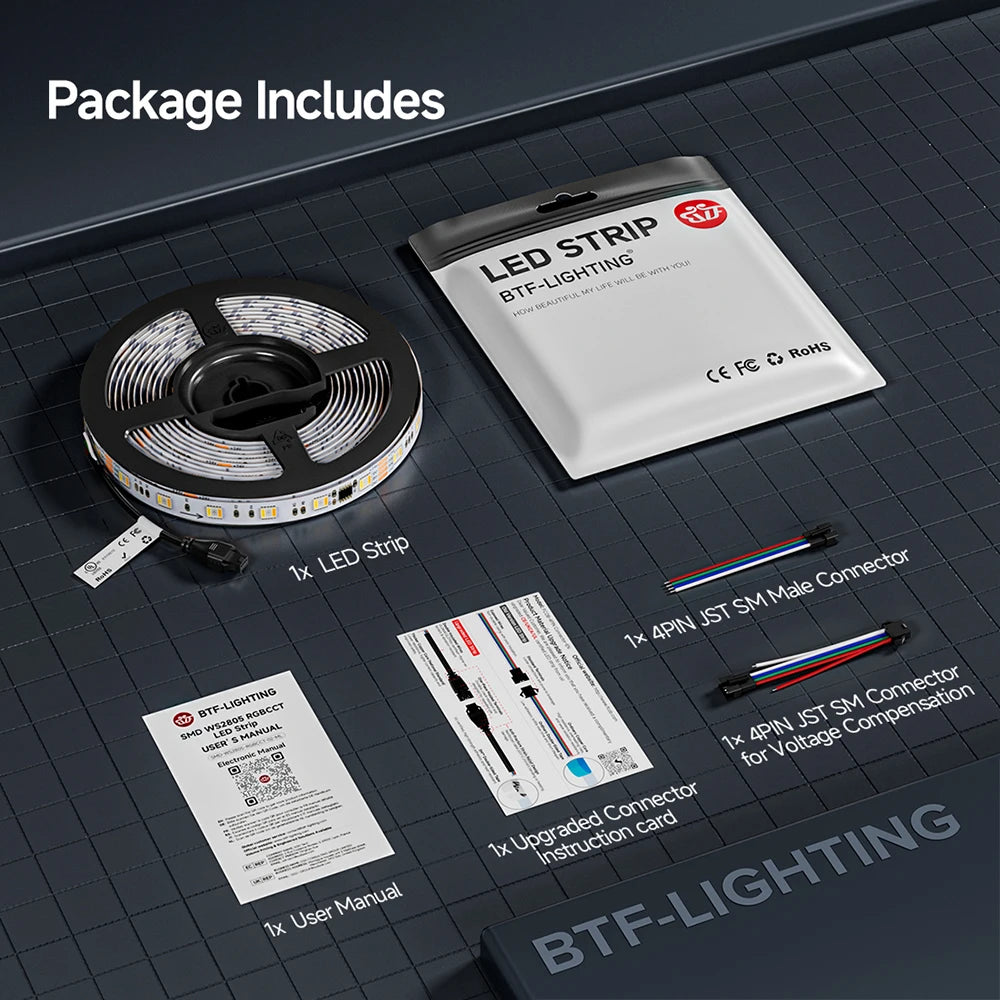

Available in 1m, 3m, and 5m rolls. Package includes 1x LED strip and 1x 4-pin connector.

Certified to CE, CCC, and RoHS standards.

Brand: BTF-LIGHTING

Model: BTF-WS2805-RGBCCT

Key Features

• WS2805 addressable pixel LED strip — RGBCCT 5-in-1 chips
• Dual-signal IC for improved reliability in long runs
• Available in 60 LED/m (DC 12V or DC 24V) and 84 LED/m (DC 24V)
• RGB + Warm White (3000K) + Cool White (6500K)
• 256 grey scale levels per color channel
• Power injection recommended for runs over 5m
• Not compatible with WLED/ESP32 — use WS2805-compatible controller
• 1m, 3m, and 5m roll lengths
• CE, CCC, and RoHS certified

Configuration Reference

Specifications

• Product Type: Addressable RGBCCT Pixel LED Strip
• IC: WS2805 (Dual Signal)
• LED Chip: SMD5050 RGBCCT 5-in-1
• Color: RGB + WW (3000K) + CW (6500K)
• Voltages: DC 12V / DC 24V
• LED Densities: 60 LED/m / 84 LED/m
• Power: RGB mixed = 0.3W/LED / Pure white = 0.1W/LED
• Beam Angle: 120 degrees
• Grey Scale: 256 levels per channel
• Controller: Pixels controller required (not included)
• Power Supply: DC 12V or 24V required (not included)
• Roll Lengths: 1m / 3m / 5m
• WLED/ESP32 Compatible: No
• LED Lifespan: 50,000 hours
• Certification: CE, CCC, RoHS
• Includes: 1x LED Strip, 1x 4-pin connector

Applications

• Addressable RGB architectural accent lighting
• Smart home entertainment and ambient lighting
• TV backlight and bias lighting
• Display case and showcase lighting
• DIY creative lighting projects requiring full color and white tuning
