1W DC 12V Mini LED Recessed Spotlight IP65 D20mm 15mm Cutout 30° 120° Dimmable 6-Color

This mini 1W recessed LED spotlight features a compact D20mm x 25mm aluminum body for ceiling, cabinet, staircase, showcase, and display installations with a 15mm cutout. Two beam angle options — 30-degree narrow accent or 120-degree broad coverage. Touch on/off dimmable switch. 95 lm per watt. 47cm Teflon-insulated cable. IP65 waterproof.

Available in warm white, natural white, cool white, blue, green, and red in silver, black, and white body finishes. Operating temperature -25°C to +45°C. Rated lifespan of 35,000 hours. DC 12V — power supply not included.

Certified to CE and RoHS standards.

Key Features

• Mini 1W DC 12V recessed LED spotlight
• IP65 waterproof
• D20mm body, 15mm cutout
• Two beam angles: 30° (narrow accent) or 120° (broad)
• Touch dimmable switch
• 95 lm/W output
• Color options: Warm White / Natural White / Cool White / Blue / Green / Red
• Silver, black, and white body finishes
• 47cm Teflon cable
• Operating temperature: -25°C to +45°C
• Lifespan: 35,000 hours
• DC 12V power supply not included
• CE and RoHS certified
• 3-year warranty

Specifications

• Product Type: Mini Recessed LED Spotlight
• Material: Aluminum
• Body Colors: Silver / Black / White
• Power: 1W
• Luminous Efficiency: 95 lm/W
• Input Voltage: DC 12V
• Beam Angles: 30° / 120°
• IP Rating: IP65
• Body Size: D20 x H25mm
• Cutout Size: 15mm
• Cable: 47cm Teflon
• Color Temperature: Warm White (3000K) / Natural White (4000K) / Cool White (6000K) / Blue / Green / Red
• Switch: Touch On/Off (Dimmable)
• Operating Temperature: -25°C to +45°C
• Power Tolerance: 3%
• Lifespan: 35,000 hours
• Certification: CE, RoHS
• Warranty: 3 Years
• Power Supply: Not included

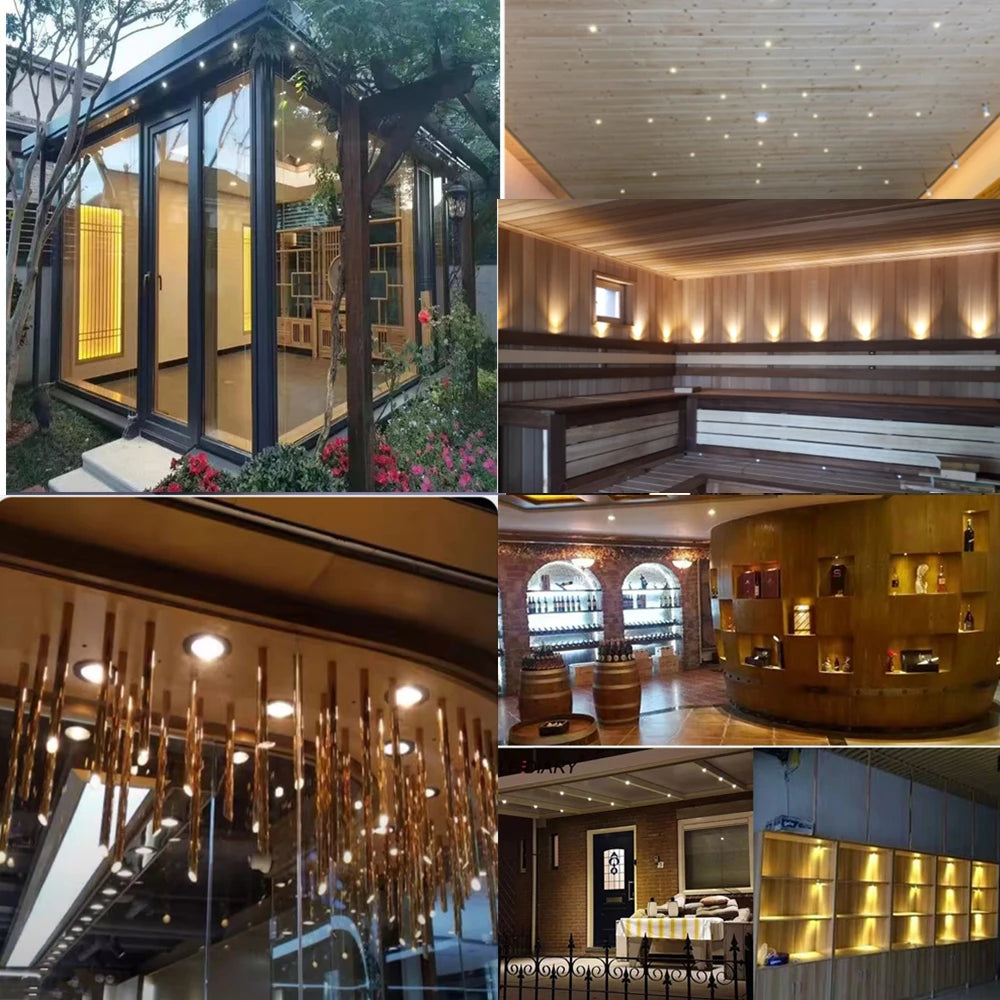

Applications

• Display cabinet and showcase accent lighting
• Staircase and step indicator lighting
• KTV and bar ambient lighting
• Ceiling corridor and walkway accent
• Jewelry display and cabinet lighting
• DIY low-voltage decorative lighting
