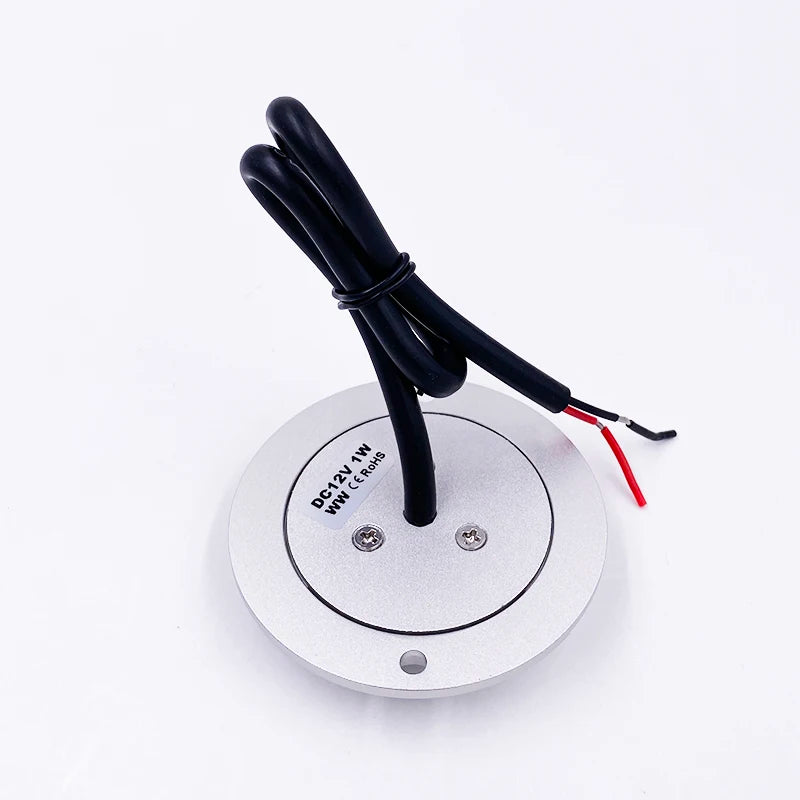

DC 12V 1W Ultra-Thin LED Outdoor Ground Step Light IP67 Waterproof OSRAM SMD2835

This ultra-thin DC 12V outdoor LED ground light is designed for recessed and surface-mounted installation in steps, decks, pathways, terraces, driveways, gardens, and lawn borders. At 14mm deep with a D70mm footprint, the compact form factor sits nearly flush with the surface for an unobtrusive, integrated appearance that suits both hardscape and landscape lighting applications.

The fixture uses an OSRAM SMD2835 LED chip, offering high brightness, low light degradation, and a rated lifespan of 50,000 hours. Luminous efficiency is rated at 100–130 lm/W, delivering effective output from a minimal 1W draw. A double-sided 2W variant is also available for increased output. The fixture supports PWM dimming for smooth, flicker-free brightness adjustment via a compatible 12V PWM dimmer controller.

The 6063 aluminum body features a surface oxidation treatment for strong corrosion resistance and efficient heat dissipation — essential for a fixture installed flush to the ground in outdoor environments. The transparent tempered glass cover provides durability against foot traffic, impact, and weathering. The 300mm silicone resin cable provides long-term moisture, mold, and aging resistance in wet and buried environments.

With an IP67 waterproof rating, the fixture is protected against full dust ingress and temporary water submersion up to 1 metre, making it suitable for ground-level, deck, and step installations exposed to rain, surface water, and irrigation runoff. DC 12V low-voltage operation provides additional safety for outdoor buried and surface installations. Transformer not included.

Brand: Ohlite

Model: MC03

Key Features

• Ultra-thin 14mm depth for flush ground and step installation
• OSRAM SMD2835 LED chip for high brightness and long lifespan
• PWM dimmable — compatible with DC 12V PWM dimmers
• IP67 waterproof — rated for dust ingress and temporary water submersion
• 6063 aluminum body with surface oxidation treatment
• Tempered glass cover — impact and weather resistant
• 300mm silicone resin cable for wet and outdoor environments
• DC 12V low-voltage operation for outdoor safety
• Single-sided 1W and double-sided 2W variants available
• Luminous efficiency: 100-130 lm/W
• LED lifespan: 50,000 hours
• CE and RoHS certified
• Transformer not included

Specifications

• Product Type: Ultra-Thin Outdoor LED Ground/Step Light
• Installation Type: Surface Mounted / Recessed
• LED Chip: OSRAM SMD2835
• Body Material: 6063 Aluminum (surface oxidised)
• Cover: Transparent Tempered Glass
• Cable: 300mm Silicone Resin
• Power Options: 1W (single-sided) / 2W (double-sided)
• Input Voltage: DC 12V
• Dimming: PWM Compatible
• Luminous Efficiency: 100-130 lm/W
• IP Rating: IP67
• Dimensions: D70 x H14mm
• LED Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 2 Years
• Transformer: Not included

Applications

• Outdoor step and staircase lighting
• Deck and terrace surface lighting
• Garden pathway and walkway lighting
• Driveway edge and border lighting
• Lawn and ground-level accent lighting
• Villa and porch exterior lighting
• Park and public square lighting
