DC 12V Mini LED Spotlight Kit 1W 9-18 Pack Epistar IP65 15mm Cutout Dimmable Remote

This DC 12V mini recessed LED spotlight kit includes spotlights, an AC 85–265V to DC 12V power supply, and a dimmable remote controller — a complete ready-to-install system requiring no additional components. Each spotlight uses an Epistar LED chip in an IP65-rated aluminum housing with stainless steel spring clips for flush 15mm cutout installation.

Available in 9-pack and 18-pack configurations, with two beam angle options per light — 30° for focused accent output and 120° for wider ambient coverage — and three color temperature options. Three body color options — black, white, and silver — allow matching to different surface finishes.

Each spotlight draws 1W and delivers 95 lumens. All lights must be wired in parallel; reverse polarity must be avoided. Total system wattage must not exceed the power supply's rated output.

LED lifespan of 50,000+ hours. Certified to CE and RoHS standards.

Brand: kpslucerna

Key Features

• Complete DC 12V kit: spotlights + power supply + dimmable remote controller
• Epistar LED chips — IP65 waterproof aluminum body
• 15mm cutout — stainless steel spring-clip installation
• 1W per light, 95lm output
• Two beam angles: 30° (accent) and 120° (ambient)
• Three color temperatures: Warm White (3000K), Natural White (4000K), Cool White (6000K)
• Three body colors: Black, White, Silver
• Available in 9-pack and 18-pack
• Parallel wiring only — reverse polarity prohibited
• LED lifespan: 50,000+ hours
• CE and RoHS certified
• 2-year warranty

Specifications

• Product Type: DC 12V Mini Recessed LED Spotlight Kit
• LED Chip: Epistar
• Material: Aluminum + Stainless Steel Springs
• Power per Light: 1W
• Lumen Output: 95lm per light
• Input Voltage: DC 12V (included power supply: AC 85-265V to DC 12V)
• Cutout Size: 15mm
• IP Rating: IP65
• Beam Angle Options: 30° / 120°
• Color Temperature: Warm White (3000K) / Natural White (4000K) / Cool White (6000K)
• Body Colors: Black / White / Silver
• Dimming: Remote Controller (included)
• Wiring: Parallel only
• LED Lifespan: 50,000+ hours
• Power Tolerance: 3%
• Certification: CE, RoHS
• Warranty: 2 Years
• Kit Includes: 9 or 18 Spotlights, 1x AC-DC Power Supply, 1x Dimmable Remote Controller

Installation

1. Drill a 15mm circular hole in the ceiling, cabinet, or surface
2. Squeeze the stainless steel springs and insert the light flush into the hole
3. Connect all lights in parallel to the DC 12V power supply, then connect to AC mains

Note: All connections must be parallel — series wiring is not compatible. Do not reverse polarity.

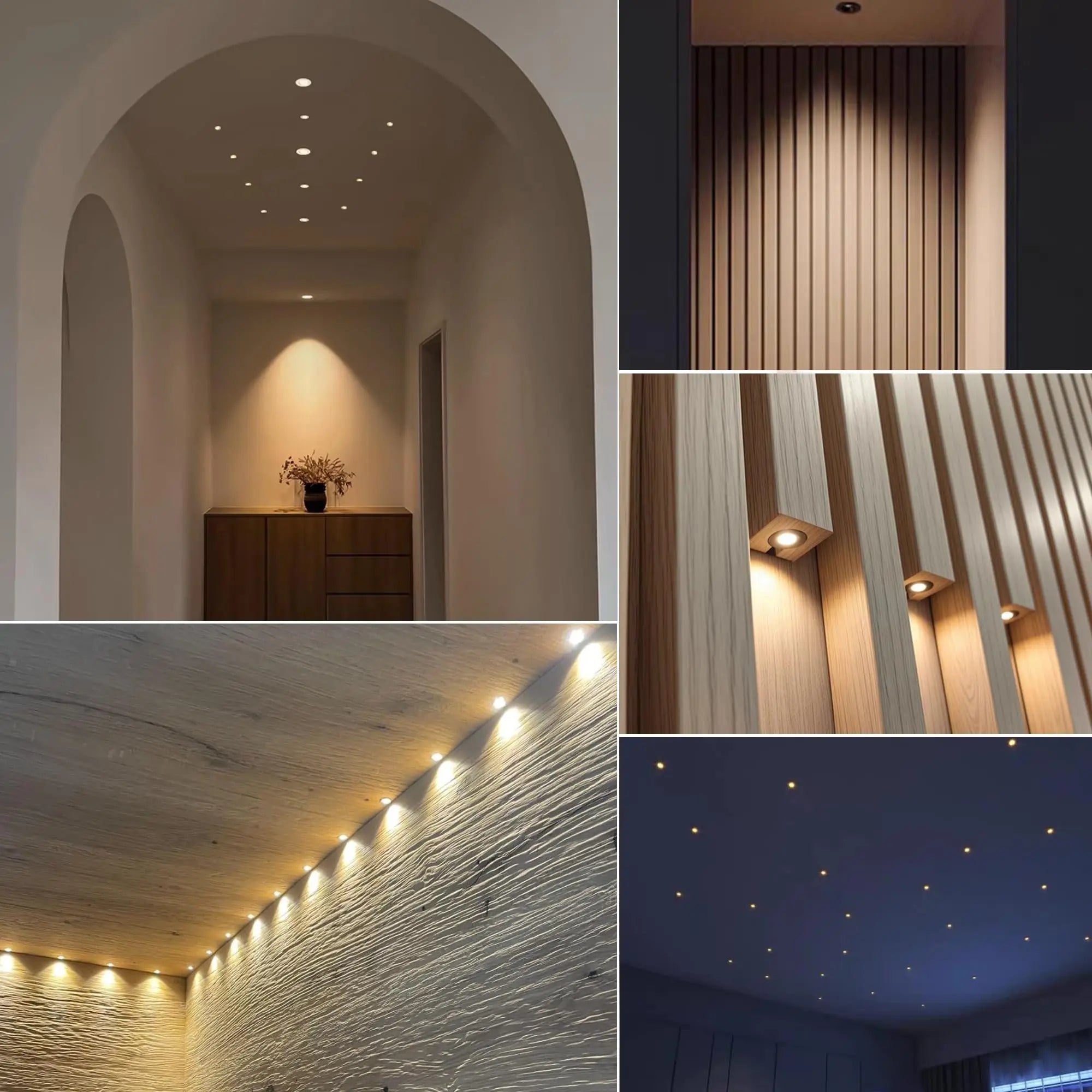

Applications

• Starry sky and decorative ceiling lighting
• Cabinet and wardrobe interior lighting
• Display case and showcase accent lighting
• Staircase step and balcony accent lighting
• RV and vehicle interior lighting
• Bar and hotel accent lighting
