DC 12V Mini Recessed LED Spotlight 1W 15mm Cutout D20mm Dimmable 30° 1

This ultra-compact DC 12V mini recessed LED spotlight measures D20mm in diameter and 25mm in depth with a 15mm ceiling cutout — one of the smallest recessed spotlight footprints available — suited for display cabinets, showcase cases, bedroom ceilings, staircase steps, KTV and bar ambient lighting, corridor accents, and compact DIY low-voltage lighting applications.

Each spotlight delivers 95 lumens at 1W from an aluminum body with a 47cm Teflon cable for heat-resistant DC 12V connection. Two beam angle options — 30° for tight focused accent and 120° for wider ambient output — are available. Color options include warm white, natural white, cool white, blue, green, red, and RGB. Body finishes are silver, black, and white.

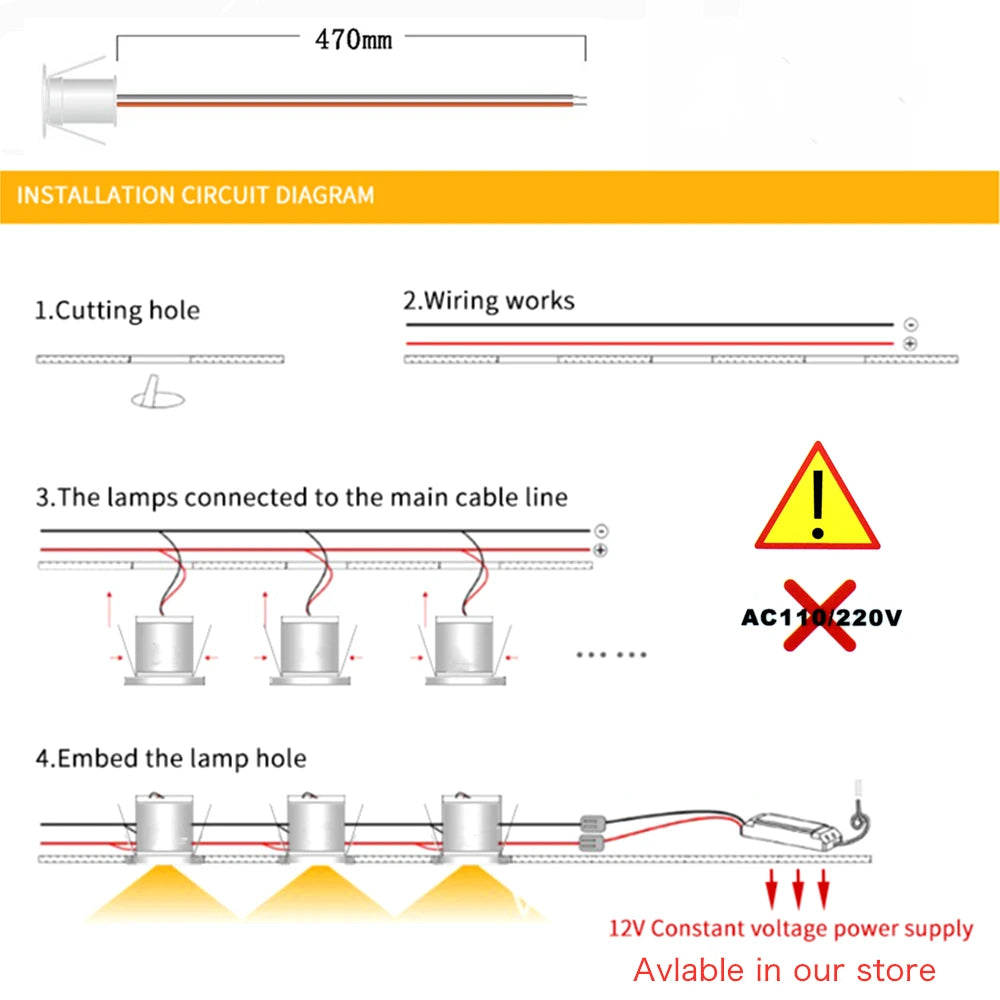

Touch on/off switch built into the fixture. Dimmable via compatible DC PWM dimmer. A separate DC 12V constant-voltage power supply is required and is not included. Operating temperature -25°C to +45°C. LED lifespan of 35,000 hours.

Certified to CE and RoHS standards.

Brand: YELEDWAY

Key Features

Ultra-compact D20mm body — 15mm cutout, 25mm depth
1W, 95lm output
Touch on/off switch — dimmable via PWM dimmer
Two beam angles: 30° (accent) and 120° (ambient)
Color options: Warm White, Natural White, Cool White, Blue, Green, Red, RGB
Silver, black, and white body finishes
47cm Teflon cable
DC 12V input
Operating temperature: -25°C to +45°C
LED lifespan: 35,000 hours
CE and RoHS certified
3-year warranty
DC 12V power supply not included

Specifications

Product Type: Mini Recessed LED Spotlight
LED Chip: Aluminum
Material: Aluminum
Body Color: Silver / Black / White
Power: 1W
Lumen Output: 95lm
Input Voltage: DC 12V
Beam Angle Options: 30° / 120°
Dimensions: D20 x H25mm
Cutout Size: 15mm
Cable Length: 47cm Teflon
Color Options: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (6000-6500K) / Blue / Green / Red / RGB
Switch: Touch On/Off (dimmable via PWM)
Operating Temperature: -25°C to +45°C
Power Tolerance: 3%
LED Lifespan: 35,000 hours
Certification: CE, RoHS
Warranty: 3 Years
Power Supply: Not included
