IP65 Waterproof LED Recessed Downlight 7W 9W 12W 15W SMD5630 Epistar 85-265V Bathroom

This IP65 waterproof LED recessed ceiling downlight uses SMD5630 Epistar chips in a full die-cast aluminum body with a frosted cover and waterproof DC connector for reliable installation in bathrooms, sauna rooms, kitchens, eave ceilings, and other moisture-prone indoor and covered outdoor locations.

The isolated intelligent IC constant-current driver provides short circuit and overvoltage protection with a power factor of over 85%, supporting series and parallel multi-lamp circuit configurations. Four wattage options — 7W, 9W, 12W, and 15W — with specific fixture dimensions and cutout sizes for each pair. Three color temperature options — cool white, natural white, and warm white — are available in white and die-cast body finishes.

Operating temperature range of -10°C to +70°C. Wide voltage compatibility across AC 85–265V. An IP65-rated waterproof LED driver is included.

Certified to CE, EMC, and RoHS standards.

Brand: LEDSONLINE

Model: BQ-RD

Key Features

• IP65 waterproof for bathroom, kitchen, and damp environment installation
• Full die-cast aluminum body with frosted cover
• Waterproof DC connector
• SMD5630 Epistar chips
• Isolated intelligent IC constant-current driver
• Power factor: >85%
• Short circuit and overvoltage protection
• Available in 7W, 9W, 12W, and 15W
• Three color temperatures: Cool White, Natural White, Warm White
• White and die-cast body finish options
• Operating temperature: -10°C to +70°C
• AC 85-265V compatible
• IP65 rated waterproof LED driver included
• CE, EMC, and RoHS certified
• 12-month warranty

Specifications

• Product Type: IP65 Waterproof Recessed LED Downlight
• Installation Type: Recessed (Embedded)
• LED Chip: SMD5630 Epistar
• Material: Full Die-Cast Aluminum
• Cover: Frosted
• Body Color: White / Die-Cast
• Power Options: 7W / 9W / 12W / 15W
• Input Voltage: AC 85-265V
• Beam Angle: 120 degrees
• Color Temperature: Cool White (6000K) / Natural White (4000K) / Warm White (3000K)
• IP Rating: IP65
• Driver: Isolated Intelligent IC Constant Current
• Power Factor: >85%
• Operating Temperature: -10°C to +70°C
• Power Tolerance: 5%
• Dimmable: No
• Certification: CE, EMC, RoHS
• Warranty: 12 Months

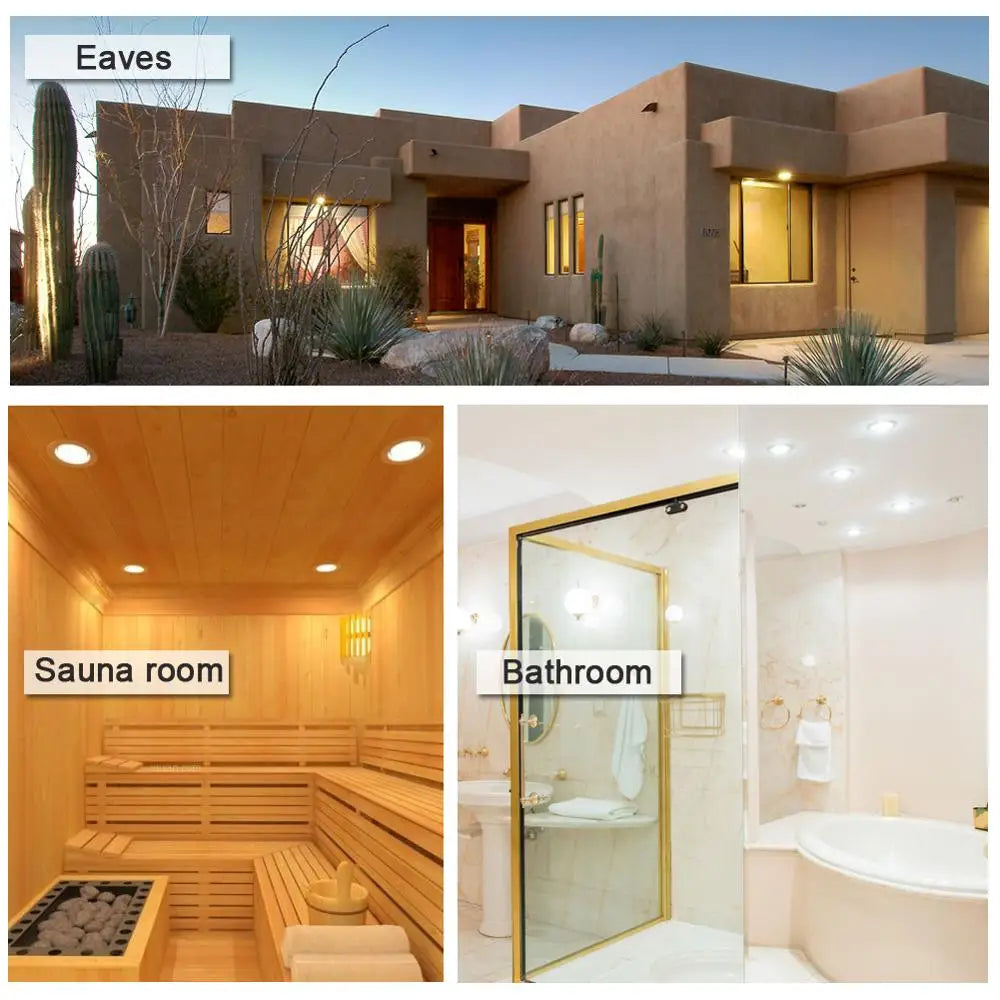

Applications

• Bathroom ceiling lighting
• Sauna room and steam room lighting
• Kitchen ceiling lighting
• Covered eave and outdoor ceiling lighting
• Laundry and utility room lighting
