Mini Surface-Mounted LED Spotlight 1W 3W Bridgelux 30° Dimmable DC12-24V AC100-240V

This mini Bridgelux LED surface-mounted spotlight requires no ceiling cutout — it mounts directly onto any surface for cabinet, counter, jewelry showcase, display, and ceiling accent applications. Available in 1W and 3W configurations with a 30-degree narrow beam angle for focused accent output. Dimmable.

Multi-voltage compatible: DC 12V/24V and AC 100–240V. Cable lengths differ by voltage version — 170mm for the DC 12V/24V version and 300mm for the AC 100–240V version.

Available in silver and black finishes in warm white, natural white, cool white, red, green, blue, and yellow. Bridgelux LED chips. CRI of Ra80. IP42 protection. Operating temperature -30°C to +50°C. Lifespan of 50,000 hours.

Certified to CE and RoHS standards.

Brand: Ohlite

Model: MC03 16A

Key Features

• Mini surface-mounted spotlight — no ceiling cutout required
• Bridgelux LED chips — 1W and 3W
• 30-degree narrow beam angle
• Dimmable
• Multi-voltage: DC 12V/24V or AC 100-240V
• Silver and black finish options
• Color options: Warm White, Natural White, Cool White, Red, Green, Blue, Yellow
• CRI Ra80
• IP42 protection
• Operating temperature: -30°C to +50°C
• LED lifespan: 50,000 hours
• CE and RoHS certified
• 2-year warranty

Specifications

• Product Type: Mini Surface-Mounted LED Spotlight

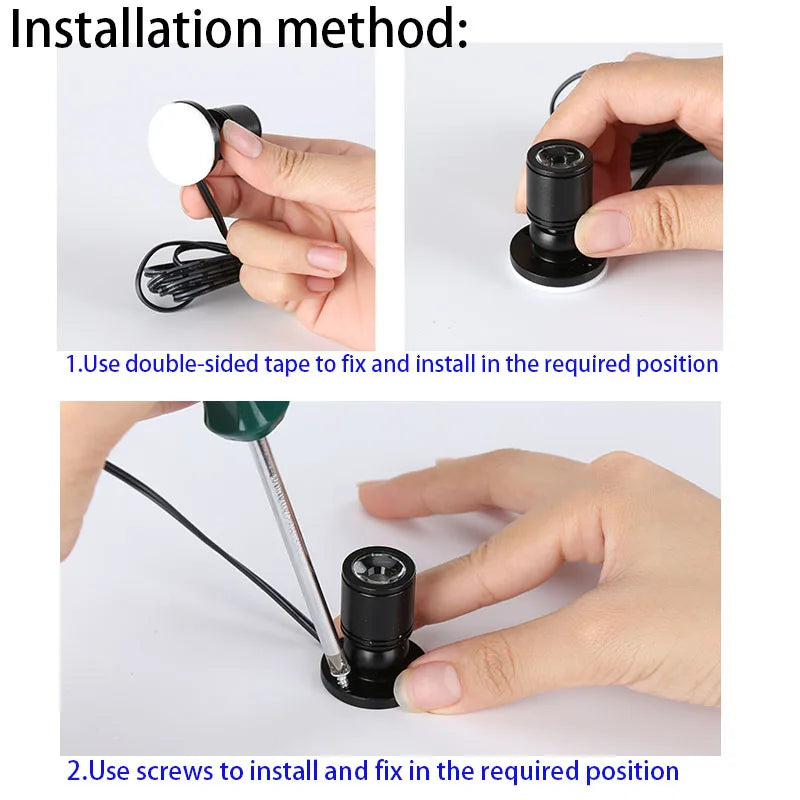

• Installation Type: Surface Mounted (no holes required)
• LED Chip: Bridgelux
• Material: Aluminum
• Finish: Brushed Nickel
• Body Colors: Silver / Black

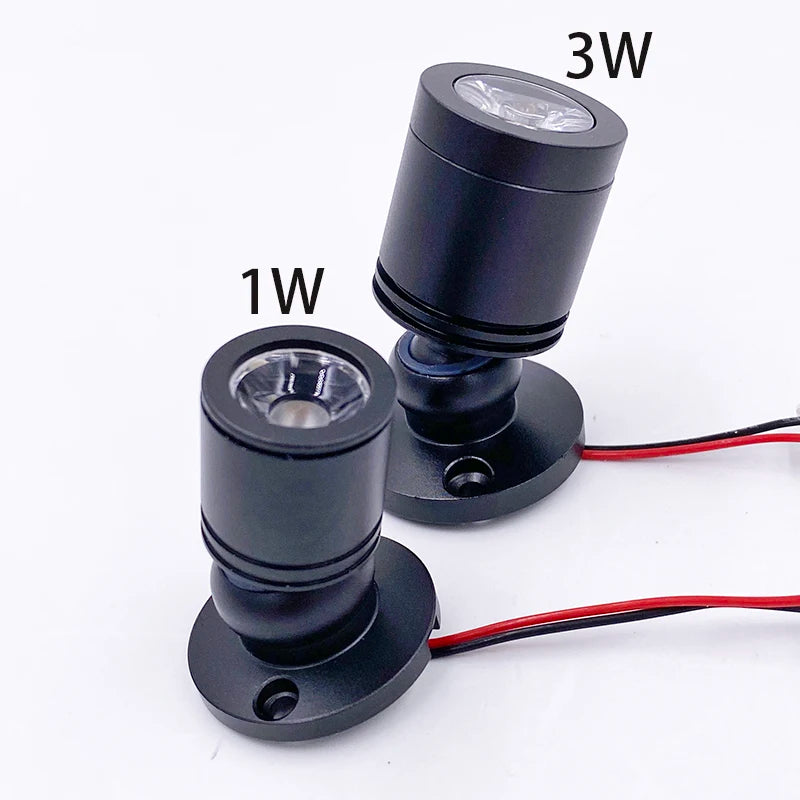

• Power Options: 1W / 3W

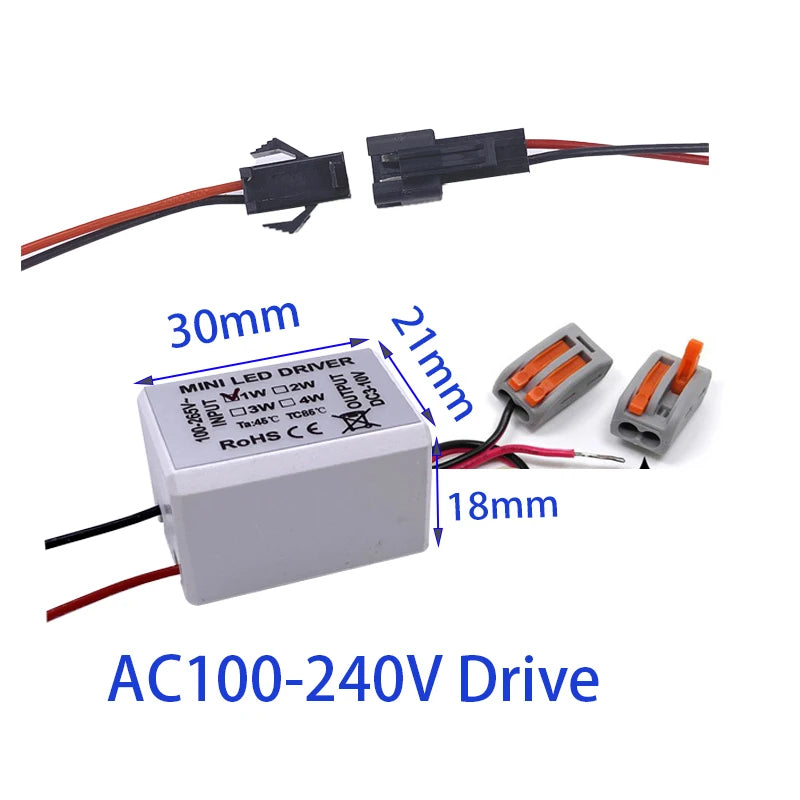

• Input Voltage: DC 12V-24V / AC 100-240V
• CRI: Ra80
• Beam Angle: 30 degrees
• IP Rating: IP42

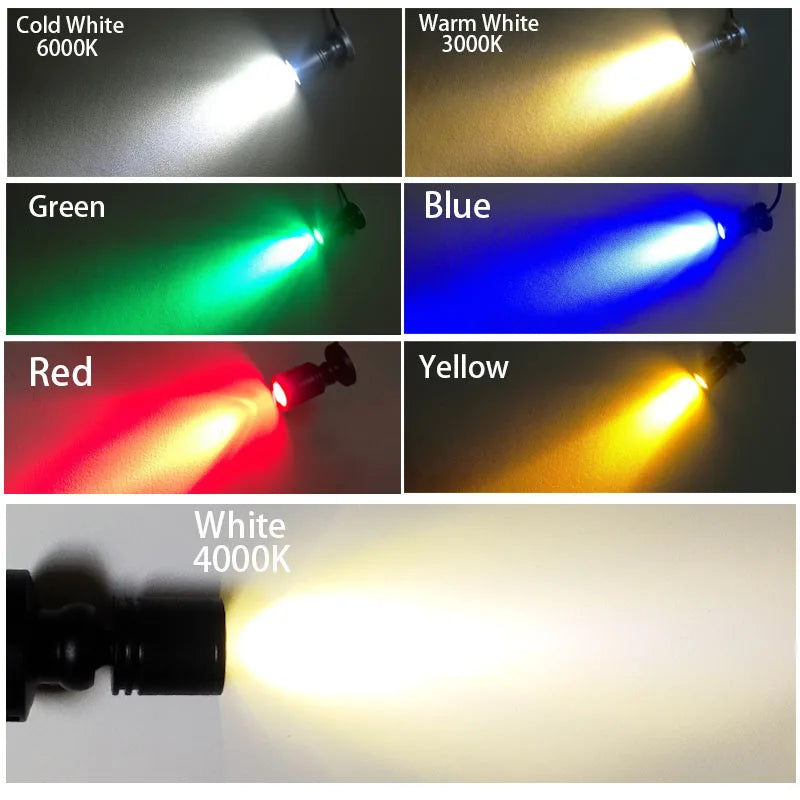

• Color Temperature: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (5500-6500K) / Red / Green / Blue / Yellow
• Dimmable: Yes
• Operating Temperature: -30°C to +50°C
• Power Tolerance: 5%
• LED Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 2 Years

Size Reference

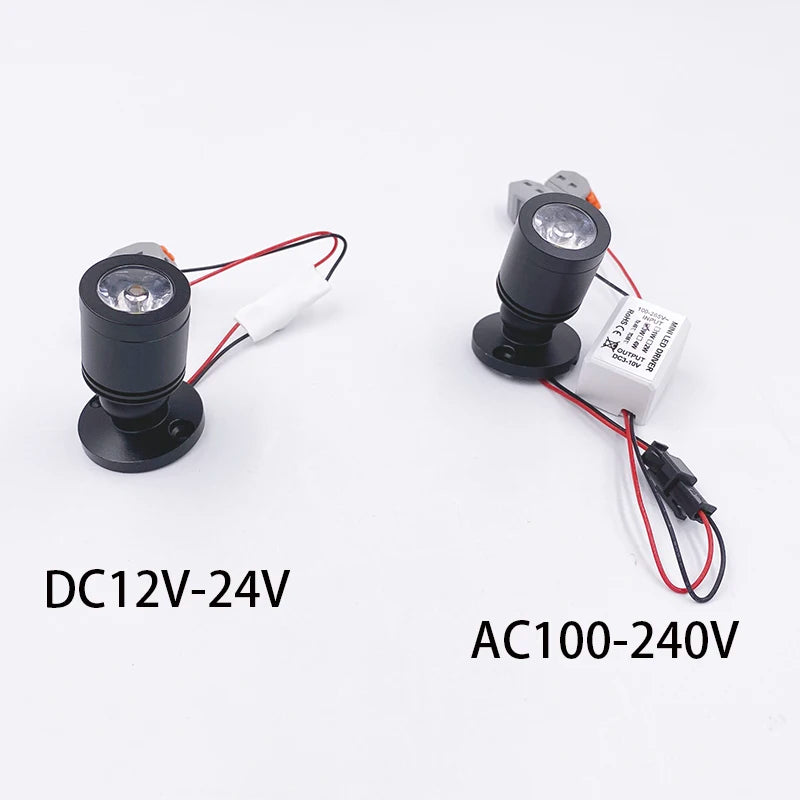

Cable Length by Voltage

Applications

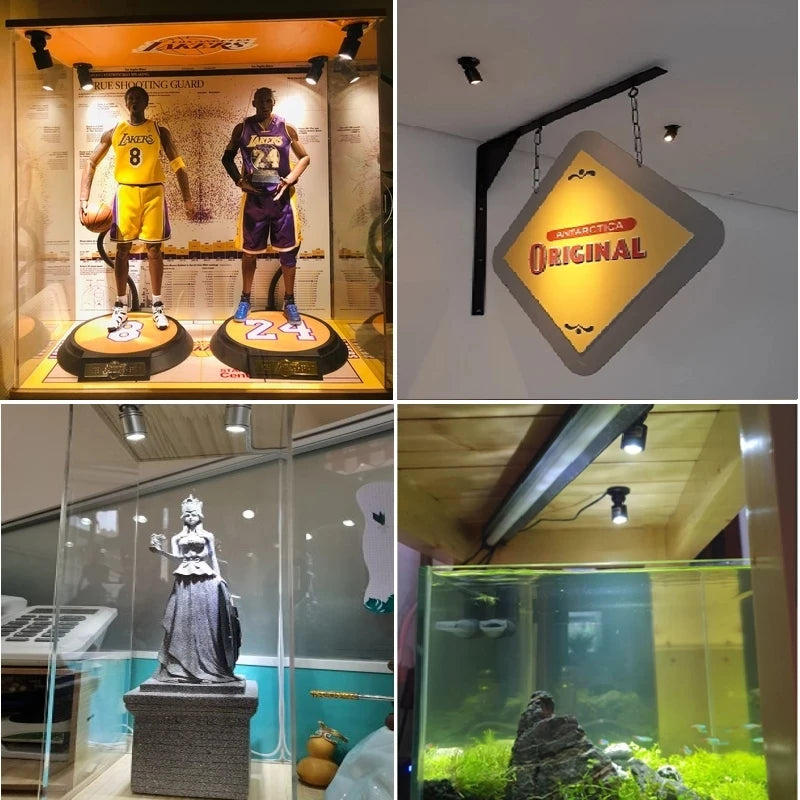

• Jewelry and gemstone display spotlight
• Cabinet and showcase accent lighting
• Kitchen counter and display lighting
• Ceiling and wall surface accent spotlight
• Bar and KTV ambient lighting
