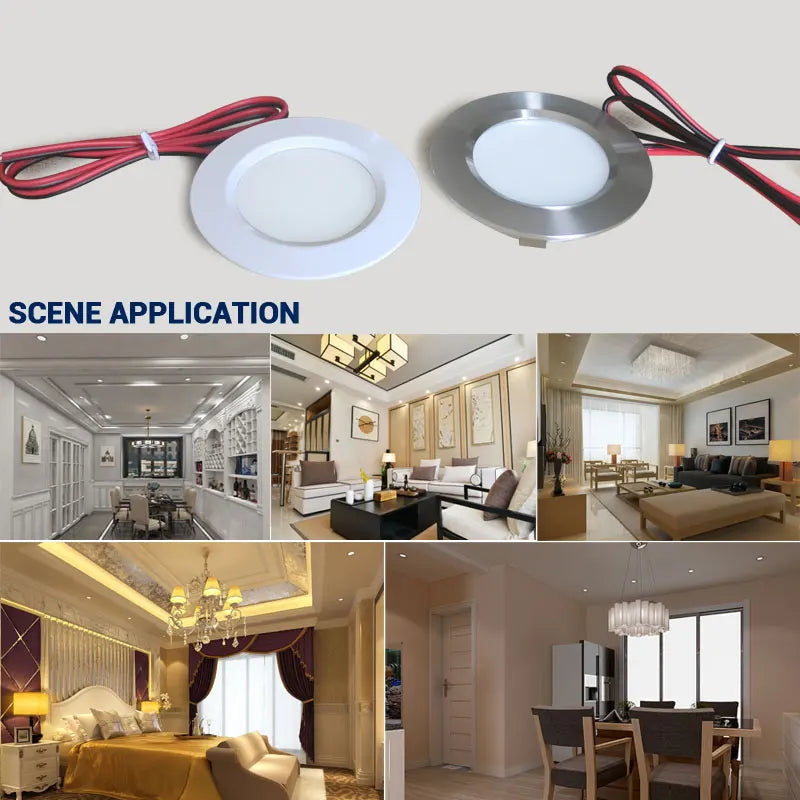

Mini Ultra-Thin DC12V LED Downlight 3W 5W 7W D68mm IP65 SMD2835 CRI80+ Warm Neutral Cool

This ultra-thin DC 12V mini LED downlight is built for compact recessed installation in kitchen cabinetry, bathroom mirror lighting, display cabinets, showcase cases, KTV and bar ambient lighting, staircase indicators, and DIY low-voltage lighting applications. At just 13mm deep with a D68mm body and 55–60mm cutout, it is one of the most compact recessed spotlights available.

Powered by SMD2835 chips with a CRI of over Ra80 and a 120-degree beam angle, the fixture delivers 270–630 lumens depending on the wattage selected. Three wattage options — 3W, 5W, and 7W — are available in warm white, natural white, and cool white color temperatures, and in white and silver body finishes. IP65 rated for kitchen and bathroom moisture-prone environments. Operating temperature -25°C to +65°C.

A separate DC 12V constant-voltage power supply is required and is not included.

Certified to CE and RoHS standards.

Brand: ANMIEPY

Model: LL-sp-5-WW

Key Features

• Ultra-thin D68 x H13mm body, 55-60mm cutout
• SMD2835 chips — 270-630lm (3W to 7W)
• IP65 waterproof for kitchen and bathroom use
• CRI ≥Ra80 for natural color rendering
• 120-degree beam angle
• DC 12V input
• Available in white and silver body finishes
• Three color temperatures: Warm White, Natural White, Cool White
• Operating temperature: -25°C to +65°C
• CE and RoHS certified
• 1-year warranty
• DC 12V power supply not included

Specifications

• Product Type: Mini Ultra-Thin Recessed LED Downlight
• LED Chip: SMD2835
• Material: Aluminum
• Body Color: White / Silver
• Power Options: 3W / 5W / 7W
• Input Voltage: DC 12V
• Lumen Output: 270-630lm (varies by wattage)
• CRI: ≥Ra80
• Beam Angle: 120 degrees
• IP Rating: IP65
• Dimensions: D68 x H13mm
• Cutout Size: D55-60mm
• Color Temperature: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (5700-6500K)
• Operating Temperature: -25°C to +65°C
• Power Tolerance: 1%
• LED Lifespan: 10,000 hours
• Dimmable: No
• Certification: CE, RoHS
• Warranty: 1 Year
• Power Supply: Not included

Applications

• Kitchen under-cabinet and cabinet downlight
• Bathroom mirror and vanity lighting
• Display cabinet and showcase accent lighting
• KTV and bar ambient lighting
• Staircase step indicator lighting
• DIY low-voltage compact lighting installations
