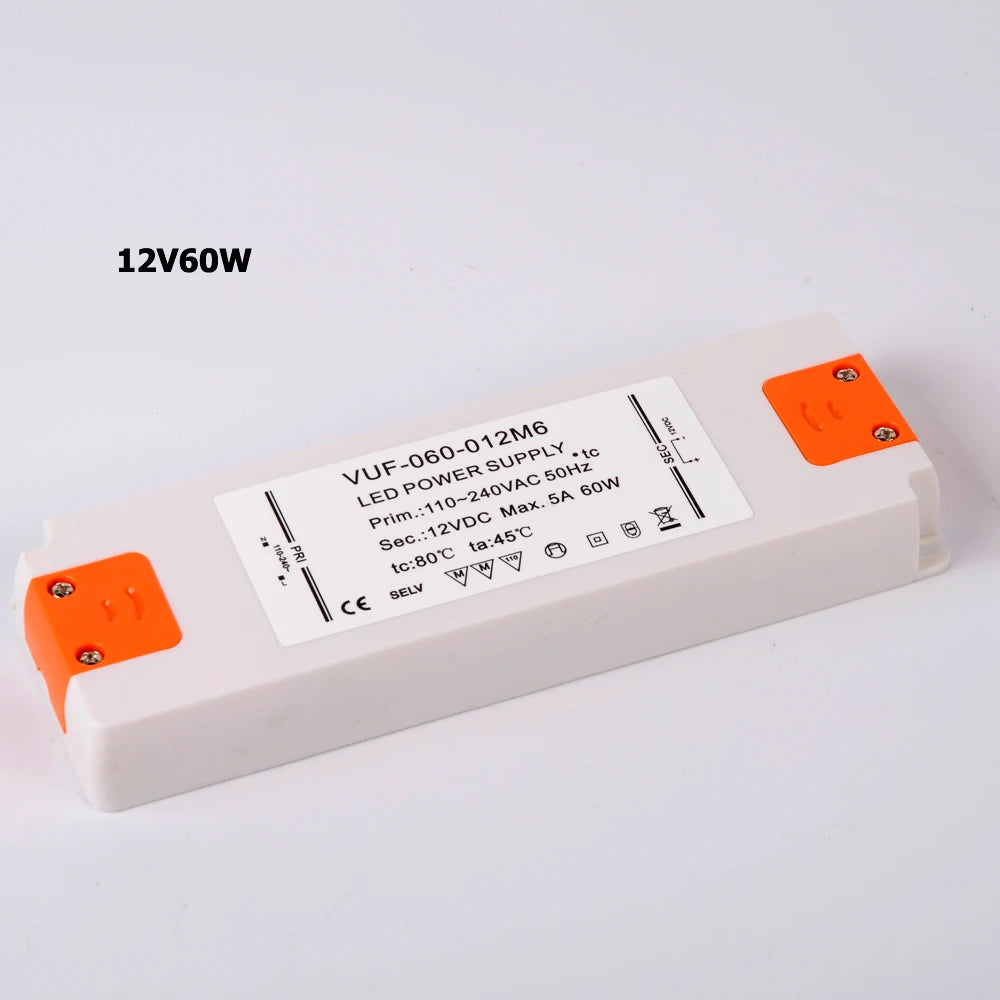

Ultra-Slim LED Driver Transformer 6W 12W 15W 20W 30W 50W 60W AC 110-240V to DC 12V 24V

This ultra-slim LED driver transformer converts AC 110–240V to DC 12V or 24V for G4, MR11, MR16/GU5.3 LED bulbs and LED strip lights. Standard halogen transformers are not suitable for LED bulbs — using one with an LED may cause flickering, reduced lifespan, or immediate failure. This driver is designed specifically for LED loads.

Built-in overcurrent (OCP), overvoltage (OVP), and short-circuit (SCP with auto-recovery) protection. Do not exceed the maximum rated wattage. Multiple LED bulbs can be run from a single driver provided total load stays within the rated power.

Operating temperature -10°C to +40°C. Case temperature maximum 80°C. Storage temperature -40°C to +80°C.

Certified to CE, EN61347-1, EN61347-2-13, and SELV standards.

Key Features

• Ultra-slim LED driver transformer for G4, MR11, MR16/GU5.3 bulbs and LED strips
• Input: AC 110-240V / Output: DC 12V or 24V
• Available in 6W, 12W, 15W, 20W, 30W, 50W, and 60W
• OCP, OVP, and short-circuit protection with auto-recovery
• Not compatible with halogen transformer loads — LED-specific design
• CE certified
• 1-year warranty

Specifications

• Product Type: Ultra-Slim LED Driver Transformer
• Material: Plastic
• Input: AC 110-240V
• Output: DC 12V / 24V
• Power Options: 6W / 12W / 15W / 20W / 30W / 50W / 60W
• Inrush Current: <25A at 110V / <15A at 230V
• Power Factor: 0.5-0.7
• Withstand Voltage: 2000-3750V
• Protection: OCP / OVP / SCP (Auto Recovery)
• Operating Temperature: -10°C to +40°C (case max 80°C)
• Storage Temperature: -40°C to +80°C
• Standards: CE / EN61347-1 / EN61347-2-13 / SELV
• Warranty: 1 Year

Applications

• G4, MR11, MR16, GU5.3 LED bulb power supply
• LED strip light transformer
• Under-cabinet and display LED driver
• Recessed spotlight and cabinet light transformer
