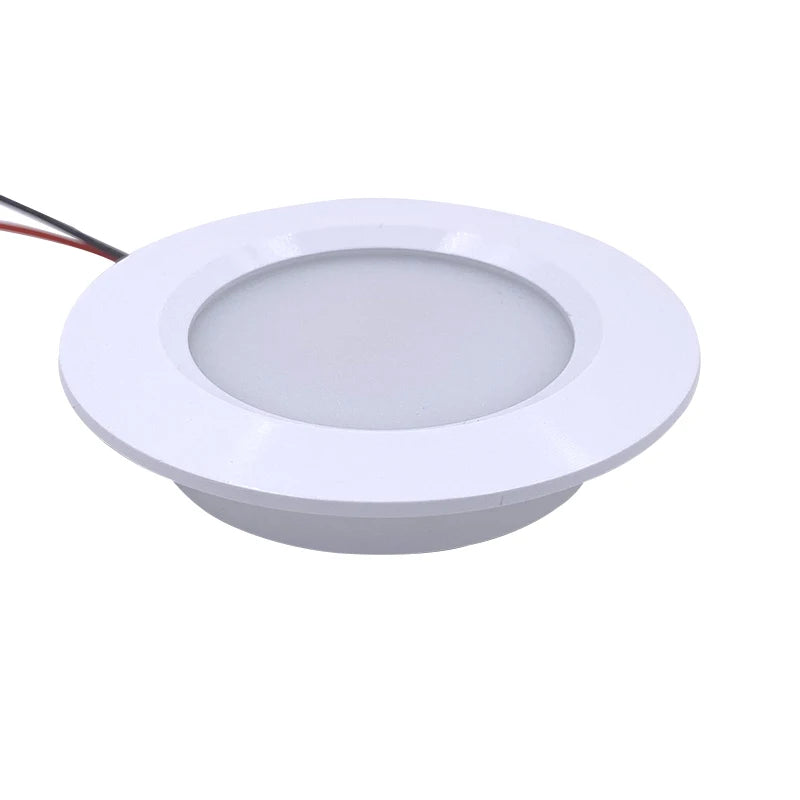

Ultra-Thin 14mm Dimmable LED Recessed Spotlight 3W 5W DC 12V 24V PWM D55mm IP52

This ultra-thin recessed LED spotlight is engineered for low-voltage DC 12V and 24V systems, offering a 14mm installation depth that fits into shallow ceiling cavities, display cabinets, bookcases, wine cabinets, and vehicle ceilings where standard recessed fixtures cannot be accommodated. The compact D68mm fixture body drops into a D55mm ceiling cutout, making it a practical solution for tight installation spaces.

The SMD2835 LED chip supports PWM dimming for smooth, flicker-free brightness adjustment compatible with standard 12V/24V PWM dimmer controllers. With a luminous flux of 280 lumens, a CRI of over Ra80, and a 120° beam angle, the fixture delivers broad, comfortable ambient illumination well-suited to residential accent lighting, cabinet interiors, RV and caravan ceilings, bar and hospitality environments, and corridor lighting.

A 170mm Teflon cable provides flexible, heat-resistant wiring to suit confined installation spaces. IP52 protection guards against dust and light moisture exposure for reliable performance in kitchen and bathroom ceiling positions. Operating temperature range of -30°C to +50°C makes this fixture suitable for both standard indoor and vehicle environments.

Available in silver, white, and black finishes across three color temperature options. Power supply is not included — a separate DC 12V or DC 24V LED driver is required.

Brand: Ohlite

Model: MC03 31A-3W

Key Features

• Ultra-thin 14mm depth for shallow cavity installations
• DC 12V / 24V input — ideal for RV, caravan, marine, and cabinet lighting
• PWM dimmable for smooth, flicker-free brightness control
• SMD2835 LED chip, 280 lm output
• CRI >Ra80 for natural color rendering
• Wide 120° beam angle for even ambient coverage
• 170mm Teflon cable for heat-resistant wiring
• IP52 rated — dust and light moisture protection
• D68mm fixture body, D55mm cutout
• Available in silver, white, and black
• Three color temperatures: Warm White, Natural White, Cool White
• Operating temperature: -30°C to +50°C
• LED lifespan: 50,000 hours
• CE and RoHS certified
• 5-year warranty
• Power supply not included

Specifications

• Product Type: Ultra-Thin Recessed LED Spotlight
• Installation Type: Recessed (Embedded)
• LED Chip: SMD2835
• Material: Aluminum
• Finish: Silver / White / Black
• Power Options: 3W / 5W
• Input Voltage: DC 12V / DC 24V
• Dimming: PWM Compatible
• Luminous Flux: 280 lm
• CRI: >Ra80
• Beam Angle: 120 degrees
• Color Temperature: Warm White (2700-3000K) / Natural White (4000-4500K) / Cool White (5500-6500K)
• IP Rating: IP52
• Cable: 170mm Teflon
• Fixture Diameter: D68mm
• Cutout Size: D55mm
• Profile Depth: 14mm
• Operating Temperature: -30°C to +50°C
• Power Tolerance: 5%
• LED Lifespan: 50,000 hours
• Certification: CE, RoHS
• Warranty: 5 Years
• Includes: 1x LED Spotlight (power supply not included)

Applications

• Display cabinet and bookcase lighting
• Wine cabinet and kitchen cabinet lighting
• RV, caravan, and campervan ceiling lighting
• Boat and marine cabin lighting
• Bedroom and living room accent lighting
• Corridor and hallway lighting
• Bar, restaurant, and hospitality interior lighting
• Staircase and entrance lighting
