Ultra-Thin LED Recessed Panel Downlight 3W 4W 6W 9W 12W 15W 25W Round 85-265V

This ultra-thin LED recessed panel downlight delivers clean, efficient ceiling illumination with a 12mm depth profile that sits almost entirely within the ceiling cavity for a near-flush, minimal appearance. The aluminum body ensures efficient heat dissipation and long-term structural reliability across the full wattage range.

Seven wattage options from 3W to 25W, each paired with a corresponding fixture diameter and cutout size, allow selection based on the available ceiling opening and desired light output. The 120° beam angle provides broad, even ambient coverage well-suited to kitchens, bathrooms, offices, retail spaces, and hotel interiors. With a high power factor of PF >97%, the fixture operates with exceptional electrical efficiency — relevant for commercial installations running multiple fixtures simultaneously.

Three color temperature options are available: warm white, natural white, and cool white. Note that the "White" color option corresponds to natural white at 4000–4500K. The integrated driver operates across AC 85–265V at 50–60Hz, supporting North American, European, and international electrical systems. Rated operational lifespan exceeds 50,000 hours.

Brand: EE

Model: LPL-RX15

Key Features

• Ultra-thin 12mm depth for near-flush ceiling installation
• High power factor: PF >97%
• Wide 120° beam angle for broad ambient coverage
• Three color temperatures: Warm White, Natural White, Cool White
• Seven wattage options: 3W, 4W, 6W, 9W, 12W, 15W, 25W
• Durable aluminum body for efficient heat dissipation
• Wide voltage compatibility: AC 85–265V, 50–60Hz
• Operating temperature: -40°C to +55°C
• LED lifespan: >50,000 hours
• CE and RoHS certified
• 2-year warranty

Specifications

• Product Type: Recessed LED Panel Downlight
• Installation Type: Recessed (Embedded)
• Light Source: Integrated LED
• Material: Aluminum
• Profile Depth: 12mm
• Beam Angle: 120°
• Power Options: 3W / 4W / 6W / 9W / 12W / 15W / 25W
• Input Voltage: AC 85–265V, 50–60Hz

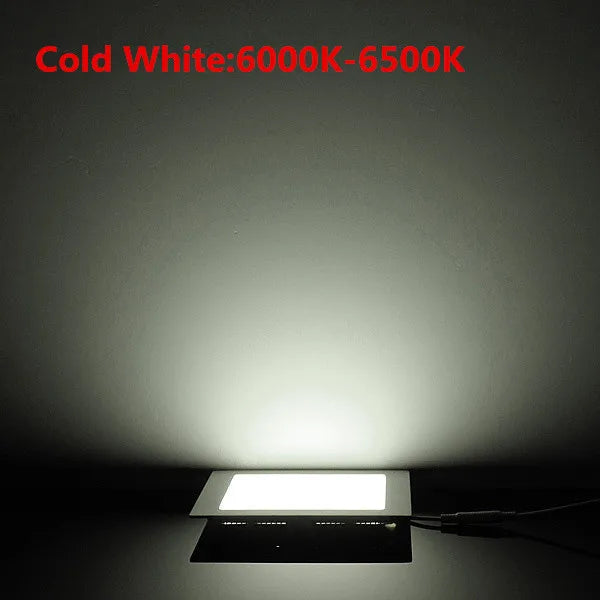

• Color Temperature: Warm White (2700–3200K) / Natural White (4000–4500K) / Cool White (6000–6500K)
• Power Factor: PF >97%
• Operating Temperature: -40°C to +55°C
• Power Tolerance: 1%
• LED Lifespan: >50,000 hours
• Certification: CE, RoHS
• Warranty: 2 Years

Applications

• Kitchen ceiling lighting
• Bathroom ceiling lighting
• Living room ambient lighting
• Office and workspace lighting
• Hotel and hospitality interiors
• Retail store and commercial lighting
• Hallway and corridor lighting
