Ultra-Thin LED Recessed Panel Downlight 3W 6W 9W 12W 15W 18W Round Square 85-265V

This ultra-thin LED recessed panel downlight is available in both round and square profiles, with a 25mm depth profile across all wattage configurations. Each wattage option corresponds to a specific fixture size and ceiling cutout diameter, with a comprehensive specification table provided for accurate installation planning.

Powered by SMD2835 LED chips with a luminous efficiency of 90–100 lm/W, a CRI of Ra80, and a power factor of over 0.85, the fixture delivers efficient, consistent illumination with a wide 180-degree beam angle for even ambient room coverage. An external LED driver is included. Three color temperature options — warm white, natural white, and cool white — are available. Note that the "White" color option corresponds to natural white at 4000–4500K.

Installation note: Connect the external driver to the lamp body before applying mains power. Do not energize the driver before connecting the lamp.

Operating temperature range of -20°C to +65°C. LED lifespan exceeds 50,000 hours.

Wide voltage compatibility across AC 85–265V. Certified to CE and RoHS standards.

Brand: QLTEG

Model: DS013

Key Features

• Ultra-thin 25mm profile for near-flush ceiling installation
• Available in round and square profiles
• SMD2835 LED chips, 90-100 lm/W luminous efficiency
• CRI Ra80 for natural color rendering
• Power factor: >0.85
• Wide 180-degree beam angle for even coverage
• External LED driver included
• Three color temperatures: Warm White, Natural White, Cool White
• Non-dimmable
• Wide voltage: AC 85-265V, 50-60Hz
• Operating temperature: -20°C to +65°C
• LED lifespan: >50,000 hours
• CE and RoHS certified
• 2-year warranty

Specifications

• Product Type: Ultra-Thin Recessed LED Panel Downlight
• Installation Type: Recessed (Embedded)
• Shape: Round / Square
• LED Chip: SMD2835
• Material: Aluminum + Acrylic
• Body Color: White
• Profile Depth: 25mm
• Input Voltage: AC 85-265V, 50-60Hz
• Luminous Efficiency: 90-100 lm/W
• CRI: Ra80
• Beam Angle: 180 degrees

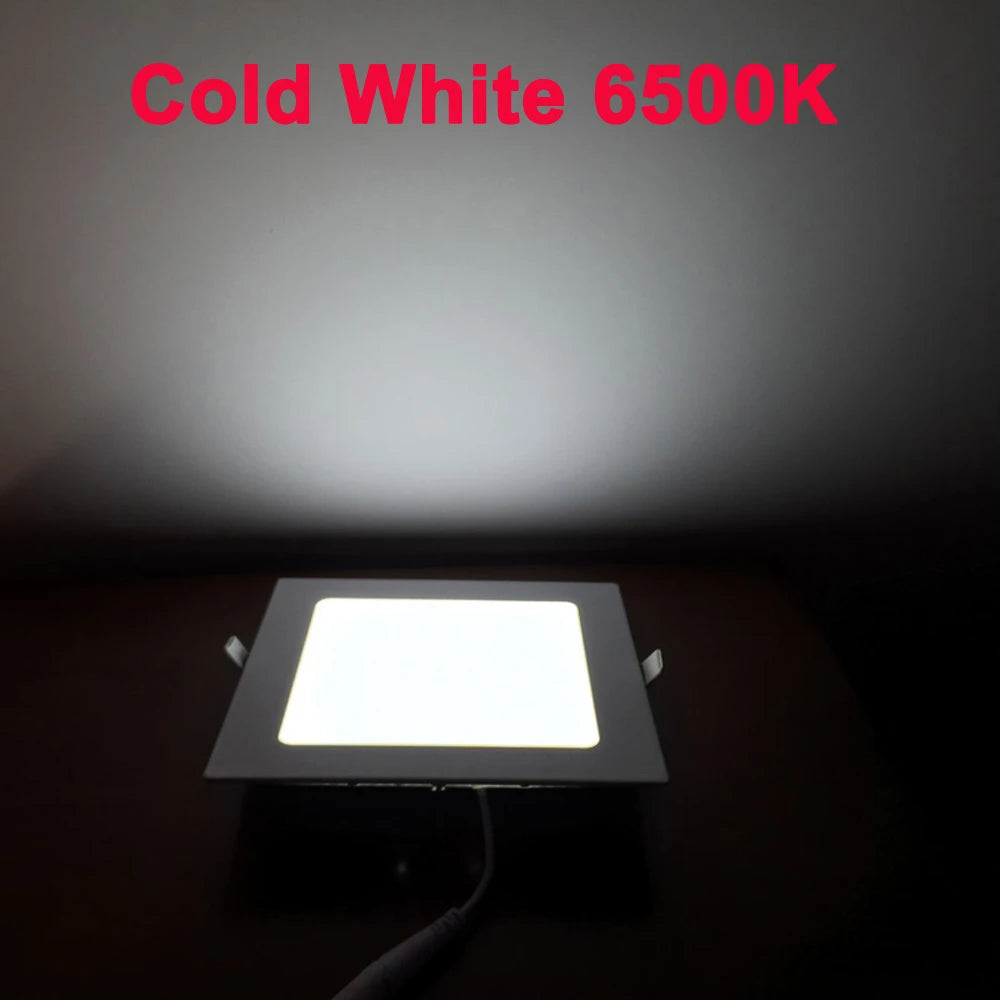

• Color Temperature: Warm White (3000-3500K) / Natural White (4000-4500K) / Cool White (6000-6500K)
• Power Factor: >0.85
• Dimmable: No
• Working Temperature: -20°C to +65°C
• LED Lifespan: >50,000 hours
• Power Tolerance: 5%
• Certification: CE, RoHS
• Warranty: 2 Years
• Includes: 1x LED Downlight, 1x External LED Driver

Applications

• Living room ambient ceiling lighting
• Bedroom ceiling lighting
• Kitchen and dining room lighting
• Foyer and entryway lighting
• Hotel and hospitality interior lighting
• Restaurant and commercial interior lighting
• Office and workspace lighting
